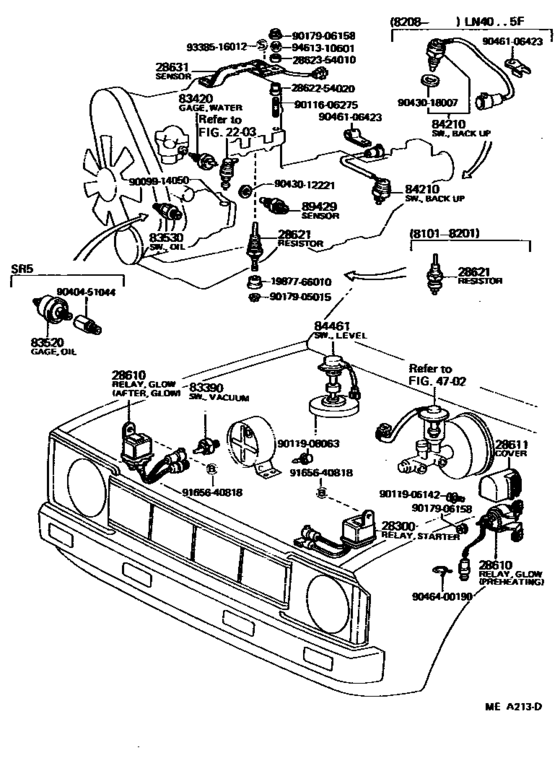

Switch & Relay & Computer ([01.1981 - ] (8101- )LN40) Diagram Toyota PICKUP
- Year
- 1982 - 1983
- Sales region
- U.S.A.
- Frame
- LN40
- grade
- SR5
- ENGINE
- L
- TRANSMISSION
- MTM
- DESTINATION
- USA
- From
- 08.1982
- To
- 07.1983
- Gear Shift Type
- 5F
- Loading Capacity
- HLF
- Building Condition
- IV
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
28300
|
28300
28300-54020
Relay Assy, Starter
[01.1981 - 07.1983] L..LN40 |
28300-54020 |
— | ||
|
28610
|
28610
28610-54080
Relay Assy, Glow Plug
[01.1981 - 07.1983] L..LN40 PREHEATING |
28610-54080 |
— | ||
|
28610
|
28610
28610-54090
Relay Assy, Glow Plug
[01.1981 - 07.1983] L..LN40 AFTER GROW |
28610-54090 |
— | ||
|
28611
|
28611
28611-54011
Cover, Glow Plug Relay
[09.1981 - 07.1983] L..LN40 |
28611-54011 |
— | ||
|
28621
|
28621
28621-54031
Resistor, Glow Plug
[01.1982 - 07.1983] L..LN40 |
28621-54031 |
— | ||
| replacement | |||||
|
28621
|
28621
28621-64011 Resistor, Glow Plug[01.1982 - 07.1983] L..LN40 |
28621-64011 |
from US $143.43 |
||
|
28631
|
28631
28631-54031 Sensor, Glow Plug Current[06.1981 - 07.1983] L..LN40 |
28631-54031 |
US $145.60 |
||
|
83390
|
83390
83390-30020
Switch Assy, Vacuum Warning
[01.1981 - 07.1983] LN40 |
83390-30020 |
— | ||
|
83420
|
83420
83420-16010
Gage Assy, Water Temperature Sender
[12.1979 - 07.1983] LN40,RN3#,4# DENSO |
83420-16010 |
— | ||
| replacement | |||||
|
83420
|
83420
83420-20020 Gage Assy, Water Temperature Sender[12.1979 - 07.1983] LN40,RN3#,4# DENSO |
83420-20020 |
from US $28.46 |
||
|
83420
|
83420
83420-20020 Gage Assy, Water Temperature Sender[12.1979 - 07.1983] LN40,RN3#,4# YAZAKI |
83420-20020 |
from US $28.46 |
||
|
83520
|
83520
83520-55011 Gage Assy,oil Pressure Sender[08.1981 - 07.1983] LN40,RN3#,4#..SR5 |
83520-55011 |
from US $68.44 |
||
|
84210
|
84210
84210-35020 Switch Assy, Back-Up Lamp[06.1982 - 08.1982] LN40;RN44..3QT..USA;RN34,44..STD..HLF..IV |
84210-35020 |
US $63.77 |
||
| replacement | |||||
|
84210
|
84210
84210-16021 Switch Assy, Back-Up Lamp[06.1982 - 08.1982] LN40;RN44..3QT..USA;RN34,44..STD..HLF..IV |
84210-16021 |
US $57.80 |
||
|
84210
|
84210
84210-60021 Switch Assy, Back-Up Lamp[08.1982 - 07.1983] LN40 |
84210-60021 |
from US $41.69 |
||
|
84461
|
84461
84461-30040
Switch, Level Warning
[08.1982 - 07.1983] LN40..SR5 |
84461-30040 |
— | ||
|
89429
|
89429
89422-30020
Sensor, Water Temperature (For E.f.i.)
[01.1981 - 07.1983] LN40 |
89422-30020 |
— | ||
| replacement | |||||
|
89429
|
89429
89422-12010 Sensor, Water Temperature (For E.f.i.)[01.1981 - 07.1983] LN40 |
89422-12010 |
US $67.54 |
||
|
1987766010
|
1987766010
19877-66010 Insulator Sub-Assy, Glow Plug, No.1 |
19877-66010 |
US $5.10 |
||
|
2862254020
|
2862254020
28622-54020
Insulator, Glow Plug Resistor, No.1
|
28622-54020 |
— | ||
|
2862354010
|
2862354010
28623-54010 Insulator, Glow Plug Resistor, No.2 |
28623-54010 |
from US $1.40 |
||
|
9009914050
|
9009914050
90099-14050
Ring, O(For Fuel Feed Pump)
|
90099-14050 |
— | ||
|
9011606275
|
9011606275
90116-06275
Bolt, Stud(For Injection Pipe Clamp)
|
90116-06275 |
— | ||
| replacement | |||||
|
9011606275
|
9011606275
90116-06095 Bolt, Stud(For Head To Cylinder Head Cover) |
90116-06095 |
US $1.61 |
||
|
9011906142
|
9011906142
90119-06142 Bolt A/C |
90119-06142 |
US $2.15 |
||
|
9011908063
|
9011908063
90119-08063 BOLT |
90119-08063 |
US $1.51 |
||
|
9017905015
|
9017905015
90179-05015 New Genuine Part |
90179-05015 |
US $1.12 |
||
|
9017906158
|
9017906158
90179-06158 Nut, Rear Wiper Link Pivot, No.2 |
90179-06158 |
from US $0.95 |
||
|
9040451044
|
9040451044
90404-51044
New Genuine Part
|
90404-51044 |
— | ||
|
9043012221
|
9043012221
90430-12221 Gasket |
90430-12221 |
from US $1.05 |
||
|
9043018007
|
9043018007
90430-18007
Gasket(For Water Hole)
|
90430-18007 |
— | ||
| replacement | |||||
|
9043018007
|
9043018007
90430-18008 Gasket |
90430-18008 |
from US $0.84 |
||
|
9046106423
|
9046106423
90461-06423 New Genuine Part |
90461-06423 |
US $4.08 |
||
|
9046400190
|
9046400190
90464-00190 CLAMP |
90464-00190 |
US $1.40 |
||
|
9165640818
|
9165640818
91656-40818
Clamp Or Clip, Hose(For Radiator Outlet No.1)
|
91656-40818 |
— | ||
| replacement | |||||
|
9165640818
|
9165640818
91651-B0814 Bolt with washer |
91651-B0814 |
from US $0.84 |
||
|
9338516012
|
9338516012
93385-16012 New Genuine Part |
93385-16012 |
US $0.96 |
||
|
9461310601
|
9461310601
94613-10601 Washer (For Primary Regulator Valve) |
94613-10601 |
US $1.25 |
||
