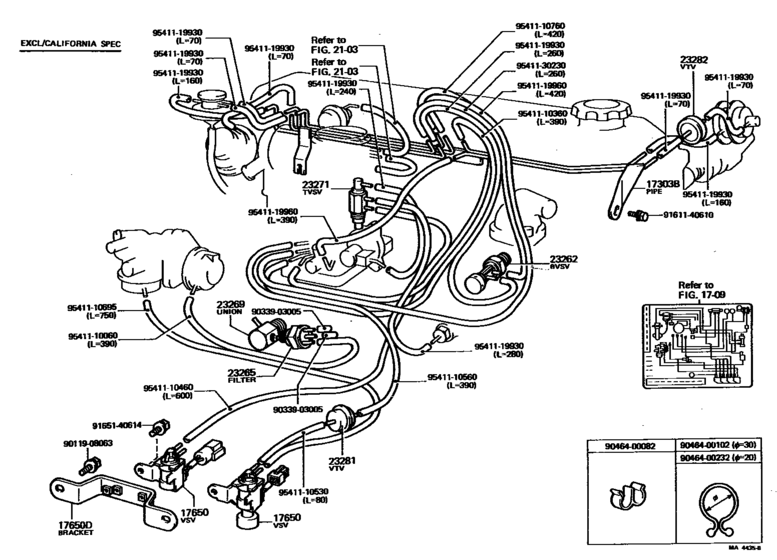

Vacuum Piping ([08.1979 - 08.1980] (7908-8008)20R..RN32,42..3FC) Diagram Toyota PICKUP
- Year
- 1978 - 1980
- Sales region
- U.S.A.
- Frame
- RN32
- grade
- DLX
- ENGINE
- 20R
- TRANSMISSION
- ATM
- DESTINATION
- USA
- From
- 08.1978
- To
- 08.1980
- Gear Shift Type
- 3FC
- Loading Capacity
- HLF
- Building Condition
- CBU
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
17303B
|
17303B
17303-38040
Pipe Sub-Assy, Air, No.1
[08.1978 - 08.1979] 20R..RN3#,4#..USA CALIFORNIA SPEC |
17303-38040 |
— | ||
|
17303B
|
17303B
17303-38050
Pipe Sub-Assy, Air, No.1
[08.1978 - 08.1979] 20R..RN32,42 |
17303-38050 |
— | ||
|
17303B
|
17303B
17303-38060
Pipe Sub-Assy, Air, No.1
[08.1979 - 08.1980] 20R..RN32,42; 20R..RN37..USA |
17303-38060 |
— | ||
|
17650
|
17650
89570-12130 Valve Assy, Vacuum SwitchingVACUUM SWITCHING [08.1979 - 08.1980] 20R..RN32,42..3FC AI,EXCL/CALIFORNIA SPEC |
89570-12130 |
US $132.50 |
||
|
17650
|
17650
89570-14080
Valve Assy, Vacuum Switching
[08.1979 - 08.1980] 20R..RN37..USA AI,TP&EVAPO; 20R..RN32,42..MTM AI,TP&EVAPO; 20R..RN32,42..3FC..USA AI,TP&EVAPO,CALIFORNIA SPEC |
89570-14080 |
— | ||
|
17650
|
17650
89570-35060
Valve Assy, Vacuum Switching
[08.1978 - 08.1979] 20R..RN32,42 |
89570-35060 |
— | ||
|
17650
|
17650
89570-35070
Valve Assy, Vacuum Switching
[08.1978 - 08.1979] 20R..RN3#,4#..USA CALIFORNIA SPEC |
89570-35070 |
— | ||
|
17650
|
17650
89570-35120
Valve Assy, Vacuum Switching
[08.1979 - 08.1980] 20R..RN32,42..3FC EVAPO,EXCL/CALIFORNIA SPEC |
89570-35120 |
— | ||
|
17650D
|
17650D
89579-35020
Bracket, Vacuum Switching Valve
[08.1979 - 08.1980] 20R..RN32,42..3FC CALIFORNIA SPEC; 20R..RN37..USA EXCL/CALIFORNIA SPEC; 20R..RN32,42..MTM..(3QT,HLF) EXCL/CALIFORNIA SPEC |
89579-35020 |
— | ||
|
17650D
|
17650D
89579-35030
Bracket, Vacuum Switching Valve
[08.1979 - 08.1980] 20R..RN32,42..3FC EXCL/CALIFORNIA SPEC |
89579-35030 |
— | ||
|
23262
|
23262
25820-13010
Valve, Bimetal Vacuum Switching, No.1
[08.1979 - 08.1980] 20R..RN32,42 |
25820-13010 |
— | ||
|
23262
|
23262
90925-05035 Valve, Bimetal Vacuum Switching, No.1[08.1978 - 08.1979] 20R..RN32,42 |
90925-05035 |
from US $36.65 |
||
|
23265
|
23265
90917-11023 Filter, Gas, No.1[08.1978 - 08.1979] 20R..RN32,42 |
90917-11023 |
from US $23.41 |
||
|
23265
|
23265
90917-11024
Filter, Gas, No.1
[08.1979 - 08.1980] 20R..RN32,42; 20R..RN37..USA |
90917-11024 |
— | ||
| replacement | |||||
|
23265
|
23265
90917-11027 Filter, Gas, No.1[08.1979 - 08.1980] 20R..RN32,42; 20R..RN37..USA |
90917-11027 |
from US $26.03 |
||
|
23269
|
23269
90404-54010 Union(For Gas Filter)[08.1978 - 08.1979] 20R..RN3#,4# |
90404-54010 |
US $8.30 |
||
|
23271
|
23271
90925-02057
Valve, Thermostatic Vacuum Switching, No.1
[08.1978 - 08.1979] 20R..RN32,42 |
90925-02057 |
— | ||
|
23271
|
23271
90925-02060
Valve, Thermostatic Vacuum Switching, No.1
[08.1979 - 08.1980] 20R..RN3#,4# |
90925-02060 |
— | ||
|
23281
|
23281
90925-01031
Valve, Vacuum Transmitting, No.1
[08.1978 - 08.1979] 20R..RN32,42 |
90925-01031 |
— | ||
|
23282
|
23282
90925-01021 Valve, Vacuum Transmitting, No.1[08.1979 - 08.1980] 20R..RN32,42..3FC; 20R..RN3#,4#..(3QT,HLF)..USA CALIFORNIA SPEC |
90925-01021 |
from US $18.35 |
||
|
23282
|
23282
90925-01032
Valve, Vacuum Transmitting, No.1
[08.1978 - 08.1979] 20R..RN32,42 |
90925-01032 |
— | ||
|
9011908063
|
9011908063
90119-08063 BOLT |
90119-08063 |
US $1.51 |
||
|
9033903005
|
9033903005
90339-03005 Plug, No.1 |
90339-03005 |
from US $1.73 |
||
|
9046400082
|
9046400082
90464-00082 Clamp(For Resistive Cord) |
90464-00082 |
US $1.79 |
||
|
9046400102
|
9046400102
90464-00102 Clamp, No.3(For Luggage Door Lock Control Cable) |
90464-00102 |
US $2.20 |
||
|
9046400232
|
9046400232
90464-00232 New Genuine Part |
90464-00232 |
US $0.52 |
||
|
9161140610
|
9161140610
91611-40610
Bolt(For Dust Cover To Steering Knuckle Arm Setting)
|
91611-40610 |
— | ||
| replacement | |||||
|
9161140610
|
9161140610
91611-B0610 Bolt (For Transfer Oil Receiver No.1) |
91611-B0610 |
from US $0.78 |
||
|
9165140614
|
9165140614
91651-40614 Bolt |
91651-40614 |
from US $0.76 |
||
|
9541110060
|
9541110060
95411-10060 Hose, Vacuum |
95411-10060 |
US $12.23 |
||
| replacement | |||||
|
9541110060
|
9541110060
90999-92003
Hose, Breather (For Transfer Case)
|
90999-92003 |
— | ||
|
9541110360
|
9541110360
95411-10360
Hose (For Idle Up Device)
|
95411-10360 |
— | ||
| replacement | |||||
|
9541110360
|
9541110360
90999-92003
Hose, Breather (For Transfer Case)
|
90999-92003 |
— | ||
|
9541110460
|
9541110460
95411-10460 Hose, Fuel, No.1(For Charcoal Canister) |
95411-10460 |
US $11.65 |
||
| replacement | |||||
|
9541110460
|
9541110460
90999-92003
Hose, Breather (For Transfer Case)
|
90999-92003 |
— | ||
|
9541110530
|
9541110530
95411-10530 Hose, No.1(For Opener) |
95411-10530 |
US $6.41 |
||
| replacement | |||||
|
9541110530
|
9541110530
90999-92002
Air Hose (300 mm)
|
90999-92002 |
— | ||
|
9541110560
|
9541110560
95411-10560 Hose, Vacuum, No.9 (For Heater Or Air Conditioner) |
95411-10560 |
US $11.65 |
||
| replacement | |||||
|
9541110560
|
9541110560
90999-92003
Hose, Breather (For Transfer Case)
|
90999-92003 |
— | ||
|
9541110695
|
9541110695
95411-10695 Hose, Fuel, No.1(For Charcoal Canister) |
95411-10695 |
US $8.15 |
||
| replacement | |||||
|
9541110695
|
9541110695
90999-92004 Hose, Vacuum, No.1 (For Front Drive Shift) |
90999-92004 |
from US $8.76 |
||
|
9541110760
|
9541110760
95411-10760 Hose, Vacuum, No.7 (For Heater Or Air Conditioner) |
95411-10760 |
US $11.65 |
||
| replacement | |||||
|
9541110760
|
9541110760
90999-92003
Hose, Breather (For Transfer Case)
|
90999-92003 |
— | ||
|
9541119930
|
9541119930
95411-19930
Hose(For Carburetor To Manifold)
|
95411-19930 |
— | ||
| replacement | |||||
|
9541119930
|
9541119930
90999-92002
Air Hose (300 mm)
|
90999-92002 |
— | ||
|
9541119960
|
9541119960
95411-19960
Hose, Vacuum, No.2 (For Front Drive Shift)
|
95411-19960 |
— | ||
| replacement | |||||
|
9541119960
|
9541119960
90999-92003
Hose, Breather (For Transfer Case)
|
90999-92003 |
— | ||
|
9541130230
|
9541130230
95411-30230
New Genuine Part
|
95411-30230 |
— | ||
