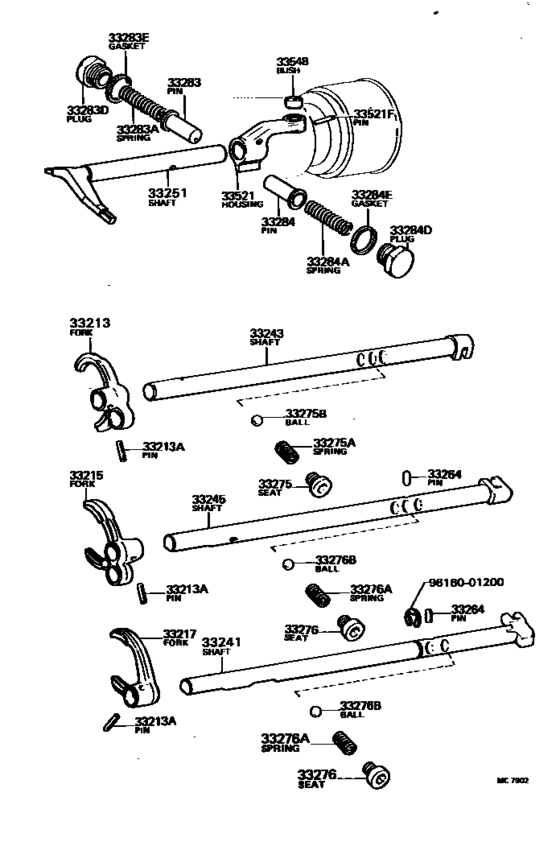

Gear Shift Fork & Lever Shaft (Mtm) ([02.1982 - ] (8202- )RN34,44..4F) Diagram Toyota PICKUP
- Year
- 1980 - 1983
- Sales region
- U.S.A.
- Frame
- RN34
- grade
- STD
- ENGINE
- 22R
- TRANSMISSION
- MTM
- DESTINATION
- USA
- From
- 08.1980
- To
- 07.1983
- Gear Shift Type
- 4F
- Loading Capacity
- HLF
- Building Condition
- CBU
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
33213
|
33213
33212-20050
Fork, 1St & 2Nd Shift
[02.1982 - 08.1982] RN44..3QT..CND;RN34,44..HLF,HVY |
33212-20050 |
— | ||
|
33213
|
33213
33212-35010 Fork, 1St & 2Nd Shift[08.1980 - 02.1982] LN40,RN38,48;RN44..3QT,HVY;RN34,44..4F..HLF |
33212-35010 |
US $64.50 |
||
|
33213A
|
33213A
90254-05001 Pin, Slotted Spring(For Shift Lever Shaft Set)[02.1982 - 08.1982] RN44..3QT..CND;RN34,44..HLF,HVY L=22 |
90254-05001 |
from US $0.95 |
||
|
33215
|
33215
33213-31010
Fork, 3Rd & 4Th Shift
[02.1982 - 08.1982] RN44..3QT..CND;RN34,44..HLF,HVY |
33213-31010 |
— | ||
|
33215
|
33215
33213-35020 Fork, 3Rd & 4Th Shift[08.1980 - 02.1982] LN40,RN38,48;RN44..3QT,HVY;RN34,44..4F..HLF |
33213-35020 |
US $90.27 |
||
|
33217
|
33217
33214-20011
Fork, 5Th & Reverse Shift
[02.1982 - 08.1982] RN44..3QT..CND;RN34,44..HLF,HVY |
33214-20011 |
— | ||
|
33241
|
33241
33244-30030
Shaft, Reverse Shift Fork
[02.1982 - 07.1983] RN34,44..4F |
33244-30030 |
— | ||
|
33241
|
33241
33245-35030
Shaft, Reverse Shift Fork
[08.1980 - 02.1982] RN44..3QT,HVY;RN3#,4#..4F..HLF |
33245-35030 |
— | ||
|
33243
|
33243
33242-20060 Shaft, 1St & 2Nd Shift Fork[02.1982 - 08.1982] RN44..3QT..CND;RN34,44..HLF,HVY |
33242-20060 |
US $48.48 |
||
|
33243
|
33243
33242-35010 Shaft, 1St & 2Nd Shift Fork[08.1980 - 02.1982] LN40,RN38,48;RN44..3QT,HVY;RN34,44..4F..HLF |
33242-35010 |
US $31.74 |
||
|
33245
|
33245
33243-20031 Shaft, 3Rd & 4Th Shift Fork[02.1982 - 08.1982] RN44..3QT..CND;RN34,44..HLF,HVY |
33243-20031 |
US $50.96 |
||
|
33245
|
33245
33243-26010 Shaft, Gear Shift Fork, No.2[08.1978 - 08.1980] RN3#,4#..4F |
33243-26010 |
US $24.46 |
||
|
33245
|
33245
33243-28010 Shaft, 3Rd & 4Th Shift Fork[02.1981 - 02.1982] LN40,RN38,48;RN44..3QT,HVY;RN34,44..4F..HLF |
33243-28010 |
US $41.79 |
||
|
33245
|
33245
33243-35030 Shaft, 3Rd & 4Th Shift Fork[08.1980 - 02.1981] RN34,44..4F;LN40,RN38,48 |
33243-35030 |
US $35.82 |
||
| replacement | |||||
|
33245
|
33245
33243-28010 Shaft, 3Rd & 4Th Shift Fork[08.1980 - 02.1981] RN34,44..4F;LN40,RN38,48 |
33243-28010 |
US $41.79 |
||
|
33251
|
33251
33251-20040 Shaft Sub-Assy, Shift Lever, No.1[02.1982 - 07.1983] RN34,44..4F |
33251-20040 |
US $63.77 |
||
|
33251
|
33251
33251-35050 Lever, Shift & Select[08.1980 - 02.1982] LN40,RN38,48;RN44..3QT,HVY;RN34,44..4F..HLF |
33251-35050 |
US $32.03 |
||
|
33264
|
33264
33264-31010
Pin, Or Ball, Shift Inter Lock, No.1
[02.1982 - 08.1982] RN44..3QT..CND;RN34,44..HLF,HVY |
33264-31010 |
— | ||
|
33264
|
33264
90361-10001 Pin, Or Ball, Shift Inter Lock, No.1[08.1980 - 02.1982] LN40,RN38,48;RN44..3QT,HVY;RN34,44..4F..HLF L=32.9,OD=9.53 |
90361-10001 |
US $5.82 |
||
|
33264
|
33264
90361-10008 Pin, Or Ball, Shift Inter Lock, No.1[08.1980 - 02.1982] RN44..3QT,HVY;RN3#,4#..4F..HLF L=14.9,OD=9.53 |
90361-10008 |
US $2.77 |
||
|
33275
|
33275
90341-10004
Plug, W/head Straight Screw, No.1(For Cylinder Block)
[02.1982 - 08.1982] RN44..3QT..CND;RN34,44..HLF,HVY |
90341-10004 |
— | ||
|
33275
|
33275
90341-12003 Seat, Shift Detent Ball Spring, No.1[08.1980 - 02.1982] LN40,RN38,48;RN44..3QT,HVY;RN34,44..4F..HLF |
90341-12003 |
US $3.64 |
||
|
33275A
|
33275A
90501-13001
Spring, Compression (For Shift Detent Ball Low Side)
[02.1982 - 08.1982] RN44..3QT..CND;RN34,44..HLF,HVY L=16.5 |
90501-13001 |
— | ||
|
33275A
|
33275A
90501-13006 Spring, Compression (For Shift Detent Ball Low Side)[02.1981 - 02.1982] RN44..3QT,HVY;RN3#,4#..4F..HLF |
90501-13006 |
US $2.77 |
||
|
33275A
|
33275A
90501-14047 Spring, Compression (For Shift Detent Ball Low Side)[08.1980 - 02.1981] RN38,48..5F; RN3#,4#..4F |
90501-14047 |
US $2.33 |
||
| replacement | |||||
|
33275A
|
33275A
90501-13006 Spring, Compression (For Shift Detent Ball Low Side)[08.1980 - 02.1981] RN38,48..5F; RN3#,4#..4F |
90501-13006 |
US $2.77 |
||
|
33275B
|
33275B
90360-08009 Ball, Reverse Shift Restrict[02.1982 - 08.1982] RN44..3QT..CND;RN34,44..HLF,HVY |
90360-08009 |
US $1.40 |
||
|
33275B
|
33275B
90360-10003 Ball(For Transmission Oil Pump Cover)[08.1980 - 02.1982] RN44..3QT,HVY;RN3#,4#..4F..HLF |
90360-10003 |
from US $1.16 |
||
|
33276
|
33276
90341-10064 Seat, Shift Detent Ball Spring, No.2[02.1982 - 08.1982] RN44..3QT..CND;RN34,44..HLF,HVY |
90341-10064 |
US $4.73 |
||
|
33276A
|
33276A
90501-13001
Spring, Compression (For Shift Detent Ball Low Side)
[02.1982 - 08.1982] RN44..3QT..CND;RN34,44..HLF,HVY |
90501-13001 |
— | ||
|
33276B
|
33276B
90360-08009 Ball, Reverse Shift Restrict[02.1982 - 08.1982] RN44..3QT..CND;RN34,44..HLF,HVY |
90360-08009 |
US $1.40 |
||
|
33283
|
33283
33283-22010 Pin, Reverse Restrict, No.1[02.1982 - 08.1982] RN44..3QT..CND;RN34,44..HLF,HVY |
33283-22010 |
US $14.27 |
||
|
33283A
|
33283A
90501-16002
Spring, Compression (For Reverse Restrict Pin)
[02.1982 - 08.1982] RN44..3QT..CND;RN34,44..HLF,HVY |
90501-16002 |
— | ||
|
33283D
|
33283D
90341-20086 Plug, W/head Straight Screw[02.1982 - 08.1982] RN44..3QT..CND;RN34,44..HLF,HVY |
90341-20086 |
US $5.39 |
||
|
33283E
|
33283E
90430-21224
Gasket (For Reverse Restrict Pin)
[02.1982 - 08.1982] RN44..3QT..CND;RN34,44..HLF,HVY |
90430-21224 |
— | ||
|
33284
|
33284
33283-22010 Pin, Reverse Restrict, No.1[02.1982 - 08.1982] RN44..3QT..CND;RN34,44..HLF,HVY |
33283-22010 |
US $14.27 |
||
|
33284A
|
33284A
90501-16001
Spring, Compression (For Low Restrict Pin)
[02.1982 - 08.1982] RN44..3QT..CND;RN34,44..HLF,HVY |
90501-16001 |
— | ||
|
33284D
|
33284D
90341-20086 Plug, W/head Straight Screw[02.1982 - 08.1982] RN44..3QT..CND;RN34,44..HLF,HVY |
90341-20086 |
US $5.39 |
||
|
33284E
|
33284E
90430-21224
Gasket (For Reverse Restrict Pin)
[02.1982 - 08.1982] RN44..3QT..CND;RN34,44..HLF,HVY |
90430-21224 |
— | ||
|
33521
|
33521
33521-14040
Housing, Shift Lever
[02.1982 - 08.1982] RN44..3QT..CND;RN34,44..HLF,HVY |
33521-14040 |
— | ||
|
33521
|
33521
33521-35040
Housing, Shift Lever
[08.1980 - 01.1981] RN34,44..4F |
33521-35040 |
— | ||
|
33521
|
33521
33521-35041 Housing, Shift Lever[01.1981 - 02.1982] LN40;RN44..3QT,HVY;RN34,44..4F..HLF |
33521-35041 |
US $36.84 |
||
|
33521F
|
33521F
33218-35010 Bolt, Shift Lever Lock[08.1980 - 01.1981] RN34,44..4F |
33218-35010 |
US $4.72 |
||
|
33521F
|
33521F
90113-08001 Bolt(For 5Th Shift Arm)[01.1981 - 02.1982] LN40;RN44..3QT,HVY;RN34,44..4F..HLF |
90113-08001 |
US $3.32 |
||
|
33521F
|
33521F
90254-05016 Pin, Slotted Spring(For Shift Lever Shaft Set)[02.1982 - 08.1982] RN44..3QT..CND;RN34,44..HLF,HVY |
90254-05016 |
from US $1.90 |
||
|
33548
|
33548
33548-31010 Bush, Shift Lever[08.1980 - 07.1983] LN40,RN3#,4#..MTM |
33548-31010 |
from US $3.49 |
||
|
9616001200
|
9616001200
96160-01200 Ring, E(For Clutch Release Cable) |
96160-01200 |
from US $1.50 |
||
