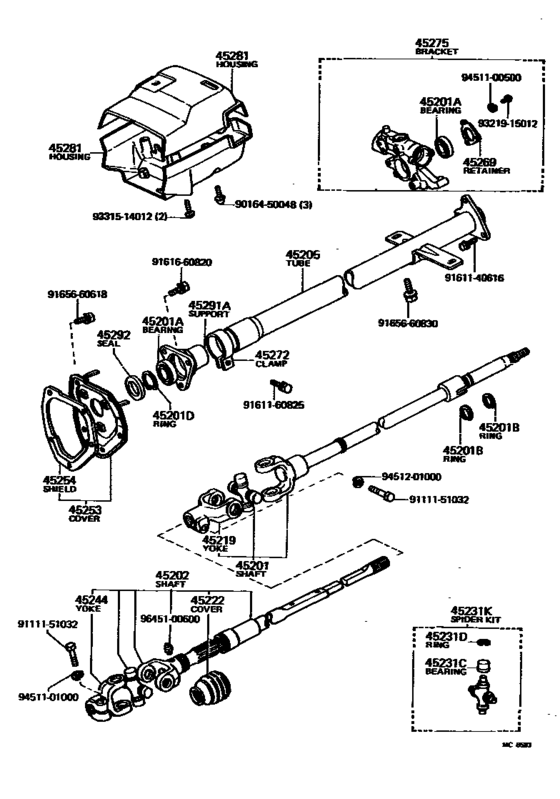

Steering Column & Shaft ([08.1979 - 08.1980] (7908-8008)RN37,47) Diagram Toyota PICKUP
- Year
- 1979 - 1980
- Sales region
- U.S.A.
- Frame
- RN37
- grade
- DLX
- ENGINE
- 20R
- TRANSMISSION
- MTM
- DESTINATION
- USA
- From
- 01.1979
- To
- 08.1980
- Gear Shift Type
- 4F
- Loading Capacity
- HLF
- Building Condition
- IV
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
45201
|
45201
45210-22050 Shaft Sub-Assy, Steering Main[01.1979 - 08.1979] RN37 W/TILT STEERING |
45210-22050 |
US $183.46 |
||
|
45201
|
45201
45210-35020
Shaft Sub-Assy, Steering Main
[01.1979 - 08.1980] RN37 W/STEERING LOCK |
45210-35020 |
— | ||
|
45201
|
45201
45210-35030
Shaft Sub-Assy, Steering Main
[01.1979 - 08.1980] RN37 W/O STEERING LOCK |
45210-35030 |
— | ||
|
45201A
|
45201A
90363-18001 Bearing(For Steering Main Shaft)[01.1979 - 08.1979] RN37 W/TILT STEERING,UPR |
90363-18001 |
US $23.41 |
||
|
45201A
|
45201A
90363-18038 Bearing(For Steering Main Shaft)[08.1978 - 07.1983] LN40,RN3#,4# UPR |
90363-18038 |
from US $6.52 |
||
|
45201A
|
45201A
90363-28001 Bearing(For Steering Main Shaft)[01.1979 - 08.1979] RN37 W/TILT STEERING,LWR |
90363-28001 |
from US $24.11 |
||
|
45201A
|
45201A
90363-30007 Bearing(For Steering Main Shaft)[01.1979 - 07.1983] RN37,38,47,48 LWR |
90363-30007 |
US $25.16 |
||
|
45201B
|
45201B
90520-17042 Ring, Shaft Snap(For Steering Main Shaft)[08.1978 - 07.1983] LN40,RN3#,4# T=1.20,T=1.2 |
90520-17042 |
from US $0.80 |
||
|
45201B
|
45201B
90520-17269 Ring, Shaft Snap(For Steering Main Shaft)[08.1978 - 07.1983] LN40,RN3#,4# T=1.20,STEERING WHEEL SIDE |
90520-17269 |
US $2.15 |
||
|
45201D
|
45201D
96151-04700 Ring, Shaft Snap (For Select Spring No.1 Seat)[01.1979 - 08.1980] RN37 |
96151-04700 |
US $3.32 |
||
|
45202
|
45202
45220-35010
Shaft Sub-Assy, Steering Intermediate
[01.1979 - 08.1979] RN37 |
45220-35010 |
— | ||
|
45202
|
45202
45220-35030 Shaft Sub-Assy, Steering Intermediate[01.1979 - 08.1979] RN37 W/POWER STEERING |
45220-35030 |
US $390.21 |
||
| replacement | |||||
|
45202
|
45202
45220-35060
Shaft Sub-Assy, Steering Intermediate
[01.1979 - 08.1979] RN37 W/POWER STEERING |
45220-35060 |
— | ||
|
45202
|
45202
45220-35050
Shaft Sub-Assy, Steering Intermediate
[08.1979 - 08.1980] RN37 |
45220-35050 |
— | ||
|
45202
|
45202
45220-35060
Shaft Sub-Assy, Steering Intermediate
[08.1979 - 08.1980] RN37 W/POWER STEERING |
45220-35060 |
— | ||
|
45205
|
45205
45205-35080
Tube Sub-Assy, Steering Column
[01.1979 - 08.1980] RN37 |
45205-35080 |
— | ||
|
45205
|
45205
45205-35090
Tube Sub-Assy, Steering Column
[01.1979 - 08.1980] RN37 W/TILT STEERING |
45205-35090 |
— | ||
|
45219
|
45219
45219-35010
Yoke, Steering Sliding
[01.1979 - 07.1983] RN37,38,47,48 |
45219-35010 |
— | ||
|
45222
|
45222
45222-35010
Cover, Steering Gear Dust
[08.1979 - 07.1983] RN37,38,47,48 |
45222-35010 |
— | ||
|
45231C
|
45231C
37402-10020
Bearing Sub-Assy, Universal Joint Spider
[01.1979 - 07.1983] RN37,38,47,48 |
37402-10020 |
— | ||
|
45231D
|
45231D
90521-22011 Ring, Hole Snap (For Spider Bearing)[01.1979 - 07.1983] RN37,38,47,48 T=1.2 |
90521-22011 |
US $4.48 |
||
|
45231D
|
45231D
90521-22012 Ring, Hole Snap (For Spider Bearing)[01.1979 - 07.1983] RN37,38,47,48 T=1.25 |
90521-22012 |
US $3.35 |
||
|
45231D
|
45231D
90521-22013 Ring, Hole Snap (For Spider Bearing)[01.1979 - 07.1983] RN37,38,47,48 T=1.30 |
90521-22013 |
US $3.06 |
||
|
45231K
|
45231K
04371-10011 Spider Kit, Universal Joint(For Propeller Shaft)[01.1979 - 07.1983] RN37,38,47,48 |
04371-10011 |
from US $37.01 |
||
|
45244
|
45244
45244-36010
Yoke, Steering Worm
[01.1979 - 08.1980] RN37 |
45244-36010 |
— | ||
|
45253
|
45253
45025-35010 Cover, Steering Column HoleSTEERING COLUMN HOLE [01.1979 - 08.1980] RN37 |
45025-35010 |
US $57.37 |
||
|
45254
|
45254
45254-89102
Shield, Steering Column Hole
[08.1978 - 08.1980] RN3#,42 |
45254-89102 |
— | ||
|
45269
|
45269
45269-35010 Retainer, Main Shaft Bearing[08.1978 - 07.1983] LN40,RN3#,4# |
45269-35010 |
US $6.41 |
||
|
45272
|
45272
45272-35020
Clamp, Steering Column, Lower
[01.1979 - 08.1980] RN37 |
45272-35020 |
— | ||
|
45275
|
45275
45280-22200
Bracket, Steering Column, Upper
[01.1979 - 08.1979] RN37 W/TILT STEERING |
45280-22200 |
— | ||
| replacement | |||||
|
45275
|
45275
45280-60250
Bracket, Steering Column, Upper
[01.1979 - 08.1979] RN37 W/TILT STEERING |
45280-60250 |
— | ||
|
45275
|
45275
45307-35060
Bracket, Steering Column, Upper
[08.1978 - 08.1981] LN40,RN3#,4# W/STEERING LOCK |
45307-35060 |
— | ||
| replacement | |||||
|
45275
|
45275
45307-35061
Bracket, Steering Column, Upper
[08.1978 - 08.1981] LN40,RN3#,4# W/STEERING LOCK |
45307-35061 |
— | ||
|
45275
|
45275
45307-35070
Bracket, Steering Column, Upper
[08.1978 - 08.1981] LN40,RN3#,4# W/O STEERING LOCK |
45307-35070 |
— | ||
| replacement | |||||
|
45275
|
45275
45307-35071
Bracket, Steering Column, Upper
[08.1978 - 08.1981] LN40,RN3#,4# W/O STEERING LOCK |
45307-35071 |
— | ||
|
45281
|
45281
45286-35120-01
Housing, Steering Column
[08.1978 - 07.1983] LN40,RN3#,4# UPR,W/STEERING LOCK,BLACK,BLACK |
45286-35120-01 |
— | ||
| replacement | |||||
|
45281
|
45281
45286-35120-06
Housing, Steering Column
[08.1978 - 07.1983] LN40,RN3#,4# UPR,W/STEERING LOCK,BLACK,BLACK |
45286-35120-06 |
— | ||
|
45281
|
45281
45286-35120-04
Housing, Steering Column
[08.1978 - 07.1983] LN40,RN3#,4# UPR,W/STEERING LOCK,BLUE,BLUE |
45286-35120-04 |
— | ||
| replacement | |||||
|
45281
|
45281
45286-35120-06
Housing, Steering Column
[08.1978 - 07.1983] LN40,RN3#,4# UPR,W/STEERING LOCK,BLUE,BLUE |
45286-35120-06 |
— | ||
|
45281
|
45281
45286-35120-05
Housing, Steering Column
[08.1978 - 08.1981] LN40,RN3#,4# UPR,W/STEERING LOCK,BEIGE,BEIGE |
45286-35120-05 |
— | ||
| replacement | |||||
|
45281
|
45281
45286-35120-06
Housing, Steering Column
[08.1978 - 08.1981] LN40,RN3#,4# UPR,W/STEERING LOCK,BEIGE,BEIGE |
45286-35120-06 |
— | ||
|
45281
|
45281
45286-35130-01
Housing, Steering Column
[08.1978 - 08.1981] LN40,RN3#,4# UPR,W/O STEERING LOCK,BLACK,BLACK |
45286-35130-01 |
— | ||
| replacement | |||||
|
45281
|
45281
45286-35120-06
Housing, Steering Column
[08.1978 - 08.1981] LN40,RN3#,4# UPR,W/O STEERING LOCK,BLACK,BLACK |
45286-35120-06 |
— | ||
|
45281
|
45281
45286-35130-04
Housing, Steering Column
[08.1978 - 08.1981] LN40,RN3#,4# UPR,W/O STEERING LOCK,BLUE,BLUE |
45286-35130-04 |
— | ||
| replacement | |||||
|
45281
|
45281
45286-35130-06
Housing, Steering Column
[08.1978 - 08.1981] LN40,RN3#,4# UPR,W/O STEERING LOCK,BLUE,BLUE |
45286-35130-06 |
— | ||
|
45281
|
45281
45286-35130-05
Housing, Steering Column
[08.1978 - 08.1981] LN40,RN3#,4# UPR,W/O STEERING LOCK,BEIGE,BEIGE |
45286-35130-05 |
— | ||
| replacement | |||||
|
45281
|
45281
45286-35130-06
Housing, Steering Column
[08.1978 - 08.1981] LN40,RN3#,4# UPR,W/O STEERING LOCK,BEIGE,BEIGE |
45286-35130-06 |
— | ||
|
45281
|
45281
45286-35140-01
Housing, Steering Column
[01.1979 - 08.1979] RN37 UPR,W/TILT STEERING,BLACK,BLACK |
45286-35140-01 |
— | ||
|
45281
|
45281
45286-35140-04
Housing, Steering Column
[01.1979 - 08.1979] RN37 UPR,W/TILT STEERING,BLUE,BLUE |
45286-35140-04 |
— | ||
| replacement | |||||
|
45281
|
45281
45286-35140-01
Housing, Steering Column
[01.1979 - 08.1979] RN37 UPR,W/TILT STEERING,BLUE,BLUE |
45286-35140-01 |
— | ||
|
45281
|
45281
45286-35140-05
Housing, Steering Column
[01.1979 - 08.1979] RN37 UPR,W/TILT STEERING,BEIGE,BEIGE |
45286-35140-05 |
— | ||
| replacement | |||||
|
45281
|
45281
45286-35140-06
Housing, Steering Column
[01.1979 - 08.1979] RN37 UPR,W/TILT STEERING,BEIGE,BEIGE |
45286-35140-06 |
— | ||
|
45281
|
45281
45287-35070-01
Housing, Steering Column
[08.1978 - 08.1981] LN40,RN3#,4# LWR,BLACK,BLACK |
45287-35070-01 |
— | ||
|
45281
|
45281
45287-35070-04
Housing, Steering Column
[08.1978 - 08.1981] LN40,RN3#,4# LWR,BLUE,BLUE |
45287-35070-04 |
— | ||
|
45281
|
45281
45287-35070-05
Housing, Steering Column
[08.1978 - 08.1981] LN40,RN3#,4# LWR,BEIGE,BEIGE |
45287-35070-05 |
— | ||
|
45281
|
45281
45287-35080-01
Housing, Steering Column
[01.1979 - 08.1979] RN37 LWR,W/TILT STEERING,BLACK,BLACK |
45287-35080-01 |
— | ||
| replacement | |||||
|
45281
|
45281
45287-35081-01
Housing, Steering Column
[01.1979 - 08.1979] RN37 LWR,W/TILT STEERING,BLACK,BLACK |
45287-35081-01 |
— | ||
|
45281
|
45281
45287-35080-04
Housing, Steering Column
[01.1979 - 08.1979] RN37 LWR,W/TILT STEERING,BLUE,BLUE |
45287-35080-04 |
— | ||
| replacement | |||||
|
45281
|
45281
45287-35081-04
Housing, Steering Column
[01.1979 - 08.1979] RN37 LWR,W/TILT STEERING,BLUE,BLUE |
45287-35081-04 |
— | ||
|
45281
|
45281
45287-35080-05
Housing, Steering Column
[01.1979 - 08.1979] RN37 LWR,W/TILT STEERING,BEIGE,BEIGE |
45287-35080-05 |
— | ||
| replacement | |||||
|
45281
|
45281
45287-35081-06
Housing, Steering Column
[01.1979 - 08.1979] RN37 LWR,W/TILT STEERING,BEIGE,BEIGE |
45287-35081-06 |
— | ||
|
45291A
|
45291A
45291-35020
Support, Steering Column Tube
[01.1979 - 08.1980] RN37 |
45291-35020 |
— | ||
|
45292
|
45292
45292-35030
Seal, Main Shaft Lower Dust
[01.1979 - 08.1980] RN37 |
45292-35030 |
— | ||
|
9016450048
|
9016450048
90164-50048 SCREW |
90164-50048 |
from US $0.84 |
||
|
9111151032
|
9111151032
91111-51032
Pin Or Bolt(For Steering Worm Yoke)
|
91111-51032 |
— | ||
| replacement | |||||
|
9111151032
|
9111151032
91112-61032
Pin Or Bolt(For Steering Worm Yoke)
|
91112-61032 |
— | ||
|
9161140616
|
9161140616
91611-40616
Bolt, Hexagon(For Steering Column Bracket)
|
91611-40616 |
— | ||
| replacement | |||||
|
9161140616
|
9161140616
91611-B0616 Bolt(For Transaxle Case Receiver) |
91611-B0616 |
from US $0.84 |
||
|
9161160825
|
9161160825
91611-60825
Bolt(For Head To Camshaft Bearing Cap)
|
91611-60825 |
— | ||
| replacement | |||||
|
9161160825
|
9161160825
91611-B0825 Bolt(For Clutch Release Cylinder Setting) |
91611-B0825 |
from US $1.08 |
||
|
9161660820
|
9161660820
91616-60820
Bolt(For Clutch Release Cylinder Setting)
|
91616-60820 |
— | ||
| replacement | |||||
|
9161660820
|
9161660820
91611-G0820 Bolt |
91611-G0820 |
from US $1.18 |
||
|
9165660618
|
9165660618
91656-60618 Bolt (For Rear Differential Breather Plug Oil Deflector) |
91656-60618 |
US $1.89 |
||
| replacement | |||||
|
9165660618
|
9165660618
91651-60614 Bolt |
91651-60614 |
from US $1.16 |
||
|
9165660830
|
9165660830
91656-60830 Bolt (For Transfer Power Take-Off Cover) |
91656-60830 |
US $2.33 |
||
| replacement | |||||
|
9165660830
|
9165660830
91651-60830 Bolt (For Transfer Power Take-Off Cover) |
91651-60830 |
from US $1.58 |
||
|
9321915012
|
9321915012
93219-15012 New Genuine Part |
93219-15012 |
US $3.05 |
||
|
9331514012
|
9331514012
93315-14012 Screw with washer |
93315-14012 |
from US $0.76 |
||
|
9451100500
|
9451100500
94511-00500 Washer, Cover Set, No.2 |
94511-00500 |
from US $0.24 |
||
|
9451101000
|
9451101000
94511-01000 Washer(For Rear Drive Shaft) |
94511-01000 |
US $1.97 |
||
|
9451201000
|
9451201000
94512-01000 Washer, No.1 (For Propeller Shaft & Differential Setting) |
94512-01000 |
from US $0.78 |
||
|
9645100600
|
9645100600
96451-00600 Fitting, Grease Small(For Tail Gate Lock Link) |
96451-00600 |
from US $1.39 |
||
