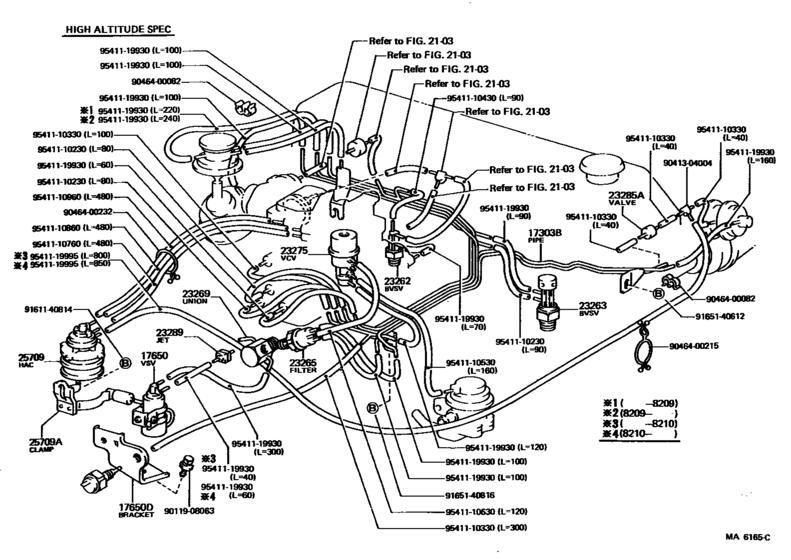

Vacuum Piping ([08.1982 - ] (8208- )22R..3QT,HLF..USA) Diagram Toyota PICKUP
- Year
- 1980 - 1983
- Sales region
- U.S.A.
- Frame
- RN38
- grade
- DLX
- ENGINE
- 22R
- TRANSMISSION
- MTM
- DESTINATION
- USA
- From
- 08.1980
- To
- 07.1983
- Gear Shift Type
- 5F
- Loading Capacity
- HLF
- Building Condition
- IV
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
17303B
|
17303B
17303-35010
Pipe Sub-Assy, Air, No.1
[08.1980 - 08.1981] 22R..RN44..HVY; 22R..RN3#,4#..(3QT,HLF)..USA CALIFORNIA SPEC |
17303-35010 |
— | ||
|
17303B
|
17303B
17303-35020
Pipe Sub-Assy, Air, No.1
[08.1980 - 08.1981] 22R..RN38,48..USA; 22R..RN34,44..MTM..(3QT,HLF) |
17303-35020 |
— | ||
|
17303B
|
17303B
17303-35110
Pipe Sub-Assy, Air, No.1
[08.1981 - 08.1982] 22R..RN44..HVY; 22R..RN3#,4#..(3QT,HLF)..USA CALIFORNIA SPEC |
17303-35110 |
— | ||
|
17303B
|
17303B
17303-35120
Pipe Sub-Assy, Air, No.1
[08.1981 - 02.1982] 22R..RN38,48..USA; 22R..RN34,44..MTM..(3QT,HLF) |
17303-35120 |
— | ||
|
17303B
|
17303B
17303-35121
Pipe Sub-Assy, Air, No.1
[02.1982 - 08.1982] 22R..RN38,48..USA; 22R..RN34,44..MTM..(3QT,HLF) |
17303-35121 |
— | ||
|
17303B
|
17303B
17303-35140
Pipe Sub-Assy, Air, No.1
[08.1982 - 07.1983] 22R..RN44..HVY; 22R..RN3#,4#..(3QT,HLF)..USA CALIFORNIA SPEC |
17303-35140 |
— | ||
|
17303B
|
17303B
17303-35150
Pipe Sub-Assy, Air, No.1
[08.1982 - 07.1983] 22R..RN38,48..USA; 22R..RN34,44..3QT,HLF |
17303-35150 |
— | ||
|
17650
|
17650
89570-14060
Valve Assy, Vacuum Switching
[08.1980 - 08.1982] 22R..RN38,48..USA; 22R..RN34,44..3QT,HLF |
89570-14060 |
— | ||
|
17650
|
17650
89570-20150
Valve Assy, Vacuum Switching
[08.1980 - 08.1981] 22R..RN38,48..USA AI&EVAPO; 22R..RN34,44..3QT,HLF AI&EVAPO |
89570-20150 |
— | ||
|
17650
|
17650
89570-20160 Valve Assy, Vacuum SwitchingVACUUM SWITCHING [08.1980 - 08.1982] 22R..RN44..HVY AI; 22R..RN3#,4#..(3QT,HLF)..USA AI,CALIFORNIA SPEC |
89570-20160 |
US $212.58 |
||
|
17650
|
17650
89570-35130 Valve Assy, Vacuum SwitchingVACUUM SWITCHING [08.1980 - 08.1981] 22R..RN44..HVY AI,TP&EVAPO; 22R..RN38,48..USA AI,TP&EVAPO,CALIFORNIA SPEC |
89570-35130 |
US $302.85 |
||
|
17650
|
17650
89570-35140 Valve Assy, Vacuum SwitchingVACUUM SWITCHING [08.1980 - 08.1981] 22R..RN44..HVY AIR BLEED; 22R..RN38,48..USA AIR BLEED,CALIFORNIA SPEC |
89570-35140 |
US $132.50 |
||
|
17650
|
17650
89570-35150
Valve Assy, Vacuum Switching
[08.1981 - 08.1982] 22R..RN38,48..USA AI&EVAPO; 22R..RN34,44 AI&EVAPO |
89570-35150 |
— | ||
|
17650
|
17650
89570-35160
Valve Assy, Vacuum Switching
[08.1982 - 07.1983] 22R..RN38,48..USA EVAPO; 22R..RN34,44 EVAPO |
89570-35160 |
— | ||
|
17650
|
17650
89570-60060
Valve Assy, Vacuum Switching
[08.1980 - 08.1982] 22R..RN38,48..USA EGR; 22R..RN34,44..MTM..(3QT,HLF) EGR |
89570-60060 |
— | ||
|
17650D
|
17650D
89579-35040 Bracket, Vacuum Switching Valve[08.1980 - 04.1981] 22R..RN38,48..USA; 22R..RN34,44 |
89579-35040 |
US $61.88 |
||
| replacement | |||||
|
17650D
|
17650D
89579-35041
Bracket, Vacuum Switching Valve
[08.1980 - 04.1981] 22R..RN38,48..USA; 22R..RN34,44 |
89579-35041 |
— | ||
|
17650D
|
17650D
89579-35041
Bracket, Vacuum Switching Valve
[04.1981 - 08.1982] 22R..RN38,48..USA; 22R..RN34,44 |
89579-35041 |
— | ||
|
17650D
|
17650D
89579-35050
Bracket, Vacuum Switching Valve
[08.1982 - 07.1983] 22R..RN38,48..USA; 22R..RN34,44 |
89579-35050 |
— | ||
|
23262
|
23262
25810-27010
Valve, Bimetal Vacuum Switching, No.1
[08.1982 - 07.1983] 22R..RN3#,4# |
25810-27010 |
— | ||
|
23262
|
23262
25820-13010
Valve, Bimetal Vacuum Switching, No.1
[08.1979 - 08.1981] 20R,22R..RN37,38,47,48..USA |
25820-13010 |
— | ||
|
23262
|
23262
90925-05017 Valve, Bimetal Vacuum Switching, No.1[08.1980 - 08.1982] 22R..RN44..HVY; 22R..RN3#,4#..(3QT,HLF)..USA CALIFORNIA SPEC |
90925-05017 |
US $46.37 |
||
|
23262
|
23262
90925-05035 Valve, Bimetal Vacuum Switching, No.1[08.1981 - 02.1982] 22R..RN38,48..USA |
90925-05035 |
from US $36.65 |
||
|
23263
|
23263
25820-13010
Valve, Bimetal Vacuum Switching, No.1
[08.1982 - 07.1983] 22R..RN38,48..USA; 22R..RN34,44..3QT,HLF |
25820-13010 |
— | ||
|
23263
|
23263
90925-05035 Valve, Bimetal Vacuum Switching, No.1[08.1980 - 07.1983] 22R..RN44..HVY; 22R..RN3#,4#..(3QT,HLF)..USA CALIFORNIA SPEC |
90925-05035 |
from US $36.65 |
||
|
23265
|
23265
90917-11022 Filter, Gas, No.1[08.1982 - 07.1983] 22R..RN44..HVY; 22R..RN3#,4#..(3QT,HLF)..USA CALIFORNIA SPEC |
90917-11022 |
from US $17.14 |
||
|
23265
|
23265
90917-11023 Filter, Gas, No.1[08.1980 - 08.1982] 22R..RN38,48..USA; 22R..RN34,44..3QT,HLF |
90917-11023 |
from US $23.41 |
||
|
23265
|
23265
90917-11024
Filter, Gas, No.1
[08.1980 - 08.1982] 22R..RN44..HVY; 22R..RN3#,4#..(3QT,HLF)..USA CALIFORNIA SPEC |
90917-11024 |
— | ||
| replacement | |||||
|
23265
|
23265
90917-11027 Filter, Gas, No.1[08.1980 - 08.1982] 22R..RN44..HVY; 22R..RN3#,4#..(3QT,HLF)..USA CALIFORNIA SPEC |
90917-11027 |
from US $26.03 |
||
|
23269
|
23269
90404-54017 Union(For Gas Filter)[08.1980 - 07.1983] 22R..RN44..HVY; 22R..RN3#,4#..MTM..(3QT,HLF)..USA CALIFORNIA SPEC |
90404-54017 |
US $19.07 |
||
|
23269
|
23269
90404-54018 Union(For Gas Filter)[08.1980 - 07.1983] 22R..RN38,48..USA; 22R..RN34,44..3QT,HLF |
90404-54018 |
US $15.87 |
||
|
23275
|
23275
90925-03103
Valve, Vacuum Control, No.1
[08.1980 - 08.1982] 22R..RN44..HVY; 22R..RN3#,4#..(3QT,HLF)..USA CALIFORNIA SPEC |
90925-03103 |
— | ||
|
23275
|
23275
90925-03104
Valve, Vacuum Control, No.1
[08.1980 - 07.1983] 22R..RN38,48..USA; 22R..RN34,44..3QT,HLF |
90925-03104 |
— | ||
|
23285A
|
23285A
90917-10049 Valve, Check, No.1[08.1980 - 08.1982] 22R..RN3#,4#..USA |
90917-10049 |
from US $5.87 |
||
|
23289
|
23289
90925-04019 Jet, No.2NO.2 [08.1980 - 08.1982] 22R..RN44..HVY; 22R..RN3#,4#..(3QT,HLF)..USA CALIFORNIA SPEC |
90925-04019 |
US $14.41 |
||
|
23289
|
23289
90925-04028
Jet, No.2
[08.1982 - 07.1983] 22R..RN38,48..USA; 22R..RN34,44 |
90925-04028 |
— | ||
|
25709
|
25709
25709-38010
Valve Sub-Assy, High Altitude Compensator
[08.1980 - 08.1982] 22R..RN38,48..USA CALIFORNIA SPEC |
25709-38010 |
— | ||
|
25709A
|
25709A
90461-12174
Clamp(For High Altitude Compensator Valve)
[08.1980 - 08.1981] 22R..RN44..HVY; 22R..RN44..4FC; 22R..RN38,48..USA CALIFORNIA SPEC; 22R..RN3#,4#..(3QT,HLF)..USA HIGH ALTITUDE SPEC |
90461-12174 |
— | ||
|
25709A
|
25709A
90462-10055
Clamp(For High Altitude Compensator Valve)
[08.1981 - 08.1982] 22R..RN44..HVY; 22R..RN38,48..USA CALIFORNIA SPEC; 22R..RN3#,4#..(3QT,HLF)..USA HIGH ALTITUDE SPEC |
90462-10055 |
— | ||
|
25709A
|
25709A
90462-10063
Clamp(For High Altitude Compensator Valve)
[08.1982 - 07.1983] 22R..RN44..HVY; 22R..RN3#,4#..(3QT,HLF)..USA HIGH ALTITUDE SPEC |
90462-10063 |
— | ||
|
9011908063
|
9011908063
90119-08063 BOLT |
90119-08063 |
US $1.51 |
||
|
9041304004
|
9041304004
90413-04004 Way, 3(For Canister) |
90413-04004 |
US $2.62 |
||
|
9046400082
|
9046400082
90464-00082 Clamp(For Resistive Cord) |
90464-00082 |
US $1.79 |
||
|
9046400215
|
9046400215
90464-00215 New Genuine Part |
90464-00215 |
US $3.06 |
||
|
9046400232
|
9046400232
90464-00232 New Genuine Part |
90464-00232 |
US $0.52 |
||
|
9161140814
|
9161140814
91611-40814
Bolt(For Manual Transmission Oil Pan Setting)
|
91611-40814 |
— | ||
| replacement | |||||
|
9161140814
|
9161140814
91611-60814 Bolt |
91611-60814 |
from US $0.74 |
||
|
9165140612
|
9165140612
91651-40612 BOLT |
91651-40612 |
from US $0.95 |
||
| replacement | |||||
|
9165140612
|
9165140612
90080-11225 New Genuine Part |
90080-11225 |
US $2.97 |
||
|
9165140816
|
9165140816
91651-40816 BOLT |
91651-40816 |
from US $0.95 |
||
|
9541110230
|
9541110230
95411-10230 Hose, Vacuum, No.2 (For Front Drive Shift) |
95411-10230 |
US $6.70 |
||
| replacement | |||||
|
9541110230
|
9541110230
90999-92002
Air Hose (300 mm)
|
90999-92002 |
— | ||
|
9541110330
|
9541110330
95411-10330 Hose, Vacuum, No.1 (For Front Drive Shift) |
95411-10330 |
US $6.70 |
||
| replacement | |||||
|
9541110330
|
9541110330
90999-92002
Air Hose (300 mm)
|
90999-92002 |
— | ||
|
9541110430
|
9541110430
95411-10430 Hose (For Idle Up Device) |
95411-10430 |
US $6.84 |
||
| replacement | |||||
|
9541110430
|
9541110430
90999-92002
Air Hose (300 mm)
|
90999-92002 |
— | ||
|
9541110530
|
9541110530
95411-10530 Hose, No.1(For Opener) |
95411-10530 |
US $6.41 |
||
| replacement | |||||
|
9541110530
|
9541110530
90999-92002
Air Hose (300 mm)
|
90999-92002 |
— | ||
|
9541110630
|
9541110630
95411-10630 Hose, Fuel, No.1(For Charcoal Canister) |
95411-10630 |
US $6.70 |
||
| replacement | |||||
|
9541110630
|
9541110630
90999-92002
Air Hose (300 mm)
|
90999-92002 |
— | ||
|
9541110760
|
9541110760
95411-10760 Hose, Vacuum, No.7 (For Heater Or Air Conditioner) |
95411-10760 |
US $11.65 |
||
| replacement | |||||
|
9541110760
|
9541110760
90999-92003
Hose, Breather (For Transfer Case)
|
90999-92003 |
— | ||
|
9541110860
|
9541110860
95411-10860 Hose, Vacuum (For Idle Up Device), No.1NO.1 |
95411-10860 |
US $11.65 |
||
| replacement | |||||
|
9541110860
|
9541110860
90999-92003
Hose, Breather (For Transfer Case)
|
90999-92003 |
— | ||
|
9541110960
|
9541110960
95411-10960 Hose, Vacuum, No.11 (For Heater Or Air Conditioner) |
95411-10960 |
US $11.50 |
||
| replacement | |||||
|
9541110960
|
9541110960
90999-92003
Hose, Breather (For Transfer Case)
|
90999-92003 |
— | ||
|
9541119930
|
9541119930
95411-19930
Hose(For Carburetor To Manifold)
|
95411-19930 |
— | ||
| replacement | |||||
|
9541119930
|
9541119930
90999-92002
Air Hose (300 mm)
|
90999-92002 |
— | ||
|
9541119995
|
9541119995
95411-19995
Hose, Vaccum
|
95411-19995 |
— | ||
| replacement | |||||
|
9541119995
|
9541119995
90999-92004 Hose, Vacuum, No.1 (For Front Drive Shift) |
90999-92004 |
from US $8.76 |
||
|
9641110330
|
9641110330
96411-10330
New Genuine Part
|
96411-10330 |
— | ||
