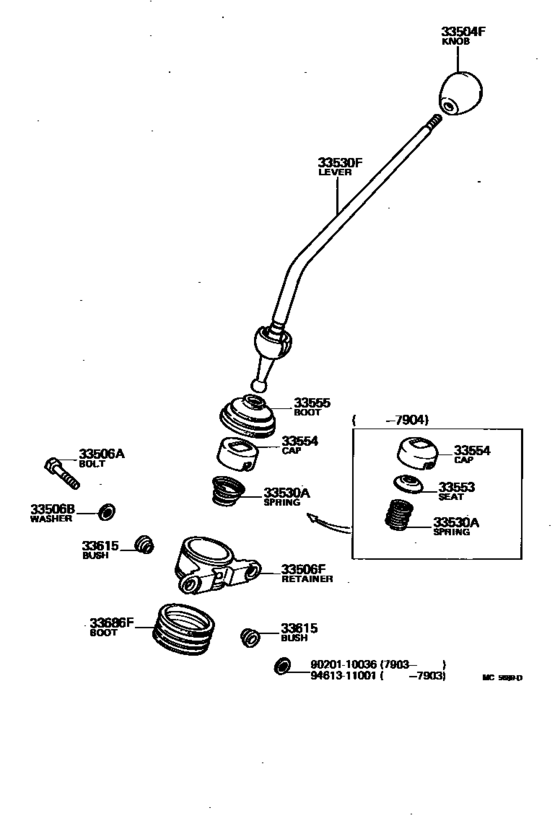

Shift Lever & Retainer ([08.1978 - 08.1980] (7808-8008)4F) Diagram Toyota PICKUP
- Year
- 1979 - 1980
- Sales region
- U.S.A.
- Frame
- RN42
- grade
- STD
- ENGINE
- 20R
- TRANSMISSION
- MTM
- DESTINATION
- USA
- From
- 08.1979
- To
- 08.1980
- Gear Shift Type
- 4F
- Loading Capacity
- HVY
- Building Condition
- IV
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
33504F
|
33504F
33504-22100-01
Knob Sub-Assy, Shift Lever
[08.1978 - 10.1980] RN3#,4#..4F BLACK,BLACK |
33504-22100-01 |
— | ||
| replacement | |||||
|
33504F
|
33504F
33504-14040-22
Knob Sub-Assy, Shift Lever (Black)
[08.1978 - 10.1980] RN3#,4#..4F BLACK,BLACK |
33504-14040-22 |
— | ||
|
33506A
|
33506A
90109-10042
Bolt (For Control Shift Lever Retainer)
[03.1979 - 08.1980] RN3#,42..4F |
90109-10042 |
— | ||
|
33506B
|
33506B
90201-13012 Washer, Plate (For Control Shift Lever Retainer)[03.1979 - 08.1980] RN3#,42..4F |
90201-13012 |
US $0.87 |
||
|
33506F
|
33506F
33506-20031
Retainer Sub-Assy, Control Shift Lever (For Floor Shift)
[03.1979 - 08.1980] RN3#,42..4F |
33506-20031 |
— | ||
|
33530A
|
33530A
90502-26001 Spring, Compression (For Shift Lever)[04.1979 - 08.1980] RN3#,42..4F |
90502-26001 |
US $1.14 |
||
|
33530F
|
33530F
33541-35062
Lever Assy, Shift (For Floor Shift)
[08.1978 - 08.1980] RN32,42..4F |
33541-35062 |
— | ||
|
33554
|
33554
33554-30012 Cap, Shift Lever[04.1979 - 08.1980] RN3#,42..4F |
33554-30012 |
from US $5.74 |
||
|
33555
|
33555
33555-30030
Boot, Shift Lever
[08.1978 - 08.1980] RN32,42..4F |
33555-30030 |
— | ||
|
33615
|
33615
33615-20012 Bush, Control Shift Lever Retainer[03.1979 - 08.1980] RN3#,42..4F |
33615-20012 |
US $4.72 |
||
|
33686F
|
33686F
33555-30020
Boot, Control Shaft Dust (For Floor Shift Retainer)
[08.1978 - 08.1980] RN3#,42..4F |
33555-30020 |
— | ||
|
9020110036
|
9020110036
90201-10036
Washer, No.2 (For Center Support Bearing)
|
90201-10036 |
— | ||
|
9461311001
|
9461311001
94613-11001 WASHER |
94613-11001 |
US $2.15 |
||
