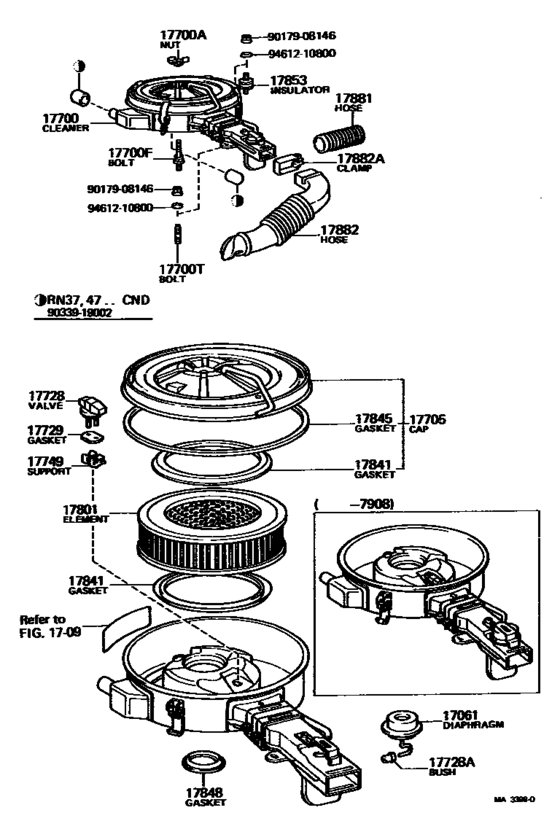

Air Cleaner ([08.1978 - 08.1980] (7808-8008)) Diagram Toyota PICKUP
- Year
- 1979 - 1979
- Sales region
- U.S.A.
- Frame
- RN42
- grade
- STD
- ENGINE
- 20R
- TRANSMISSION
- MTM
- DESTINATION
- CND
- From
- 01.1979
- To
- 08.1979
- Gear Shift Type
- 4F
- Loading Capacity
- 3QT
- Building Condition
- IV
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
17061
|
17061
17061-13010
Diaphragm Sub-Assy
[08.1979 - 08.1980] 20R..RN3#,4# |
17061-13010 |
— | ||
|
17700
|
17700
17700-38090
Cleaner Assy, Air
[08.1978 - 08.1979] 20R..RN32,42 |
17700-38090 |
— | ||
|
17700
|
17700
17700-38091
Cleaner Assy, Air
[08.1979 - 08.1980] 20R..RN32,42 |
17700-38091 |
— | ||
| replacement | |||||
|
17700
|
17700
17700-38120
Cleaner Assy, Air
[08.1979 - 08.1980] 20R..RN32,42 |
17700-38120 |
— | ||
|
17700A
|
17700A
90175-06003 Nut, Wing(For Air Cleaner)[08.1978 - 07.1983] 20R,22R..RN3#,4# |
90175-06003 |
from US $1.18 |
||
|
17700F
|
17700F
90116-06280
Bolt, Stud(For Air Cleaner Setting)
[08.1978 - 08.1980] 20R..RN3#,4# L=49,S=12&20 |
90116-06280 |
— | ||
|
17700T
|
17700T
90116-08033 Bolt, Stud(For Air Cleaner)[08.1978 - 07.1983] 20R,22R..RN3#,4# L=26,S=8&13.5 |
90116-08033 |
US $2.18 |
||
|
17705
|
17705
17705-38020
Cap Sub-Assy, Air Cleaner
[08.1978 - 08.1979] 20R..RN32,42 |
17705-38020 |
— | ||
| replacement | |||||
|
17705
|
17705
17705-38060
Cap Sub-Assy, Air Cleaner
[08.1978 - 08.1979] 20R..RN32,42 |
17705-38060 |
— | ||
|
17705
|
17705
17705-38060
Cap Sub-Assy, Air Cleaner
[08.1979 - 08.1980] 20R..RN32,42 |
17705-38060 |
— | ||
|
17728
|
17728
17728-24010
Valve, Thermostatic
[08.1979 - 07.1983] 20R,22R..RN3#,4# |
17728-24010 |
— | ||
| replacement | |||||
|
17728
|
17728
17728-24011
Valve, Thermostatic
[08.1979 - 07.1983] 20R,22R..RN3#,4# |
17728-24011 |
— | ||
|
17728A
|
17728A
90386-03001
Bush(For Air Cleaner)
[08.1979 - 07.1983] 20R,22R..RN3#,4# |
90386-03001 |
— | ||
|
17729
|
17729
17729-34010
Gasket, Thermostat Valve
[08.1979 - 07.1983] 20R,22R..RN3#,4# |
17729-34010 |
— | ||
|
17749
|
17749
17749-34010
Support, Thermostat Valve
[08.1979 - 07.1983] 20R,22R..RN3#,4# |
17749-34010 |
— | ||
|
17801
|
17801
17801-41090 Element Sub-Assy, Air Cleaner FilterAIR CLEANER FILTER [08.1978 - 07.1983] 20R,22R..RN3#,4# |
17801-41090 |
from US $22.80 |
||
|
17841
|
17841
17841-41050
Gasket, Filter Element
[08.1978 - 07.1983] 20R,22R..RN3#,4# |
17841-41050 |
— | ||
|
17845
|
17845
17845-38011
Gasket, Air Cleaner Cap
[08.1978 - 08.1980] 20R..RN32,42 |
17845-38011 |
— | ||
| replacement | |||||
|
17845
|
17845
17845-42010
Gasket, Air Cleaner Cap
[08.1978 - 08.1980] 20R..RN32,42 |
17845-42010 |
— | ||
|
17848
|
17848
90430-72003
Gasket, Air Cleaner To Carburetor
[08.1978 - 08.1980] 20R..RN3#,4# |
90430-72003 |
— | ||
|
17853
|
17853
17853-38010
Bush(For Sub Radiator)
[08.1978 - 07.1983] 20R,22R..RN3#,4# |
17853-38010 |
— | ||
|
17881
|
17881
17881-26010
Hose, Air Cleaner, No.1
[08.1978 - 08.1980] 20R..RN3#,4# |
17881-26010 |
— | ||
| replacement | |||||
|
17881
|
17881
17881-34040
Hose, Air Cleaner, No.1
[08.1978 - 08.1980] 20R..RN3#,4# |
17881-34040 |
— | ||
|
17882
|
17882
17882-89101
Hose, Air Cleaner, No.2
[08.1978 - 08.1980] 20R..RN3#,4# |
17882-89101 |
— | ||
|
17882A
|
17882A
90460-01003
Clamp(For Air Cleaner Hose, No.2)
[08.1978 - 08.1980] 20R..RN3#,4# |
90460-01003 |
— | ||
|
9017908146
|
9017908146
90179-08146
Nut
|
90179-08146 |
— | ||
| replacement | |||||
|
9017908146
|
9017908146
90179-08204 Nut |
90179-08204 |
from US $1.05 |
||
|
9033919002
|
9033919002
90339-19002 Cap(For Intake Air Connector) |
90339-19002 |
from US $10.19 |
||
|
9461210800
|
9461210800
94612-10800 Washer, Plate(For Repair Actuator Set) |
94612-10800 |
from US $0.82 |
||
