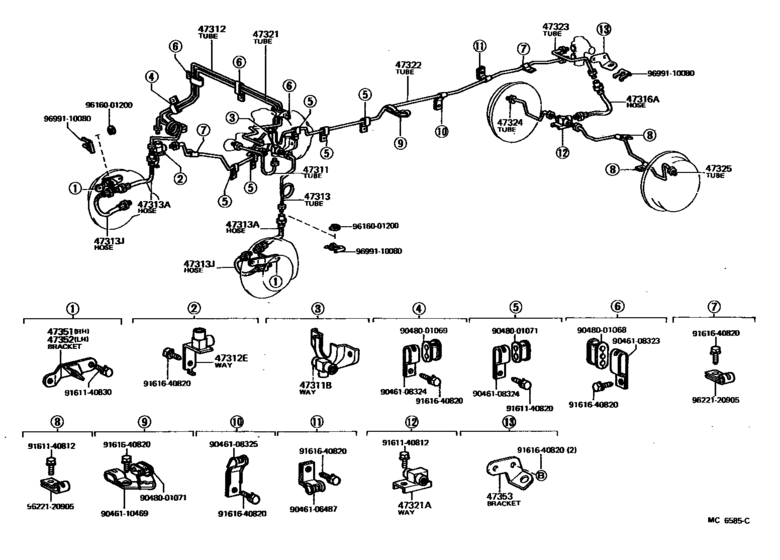

Brake Tube & Clamp ([08.1979 - ] (7908- )HVY) Diagram Toyota PICKUP
- Year
- 1979 - 1980
- Sales region
- U.S.A.
- Frame
- RN42
- grade
- STD
- ENGINE
- 20R
- TRANSMISSION
- MTM
- DESTINATION
- CND
- From
- 08.1979
- To
- 08.1980
- Gear Shift Type
- 4F
- Loading Capacity
- HVY
- Building Condition
- IV
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
47311
|
47311
47311-35250 Tube, Front Brake, No.1[01.1979 - 07.1983] RN42,44..3QT,HVY |
47311-35250 |
US $7.13 |
||
|
47311B
|
47311B
90413-10058
Way, No.1(For Front Brake Tube)
[01.1979 - 07.1983] RN37,38,47,48;RN42,44..3QT,HVY |
90413-10058 |
— | ||
|
47312
|
47312
47312-35300
Tube, Front Brake, No.2
[08.1979 - 08.1980] RN42..HVY |
47312-35300 |
— | ||
|
47312E
|
47312E
90412-10049
Way, No.2(For Front Brake Tube)
[08.1978 - 07.1983] LN40,RN3#,4# |
90412-10049 |
— | ||
|
47313
|
47313
47313-35240
Tube, Front Brake, No.3
[08.1979 - 07.1983] RN42,44..HVY |
47313-35240 |
— | ||
|
47313A
|
47313A
90947-02382
Hose, Flexible, No.1(For Front)
[08.1979 - 07.1983] RN42,44..HVY |
90947-02382 |
— | ||
|
47313J
|
47313J
96960-32405
Hose, Flexible, No.2(For Front)
[08.1979 - 07.1983] RN42,44..HVY |
96960-32405 |
— | ||
|
47316A
|
47316A
96910-34005 Hose, Flexible(For Rear Brake Tube)FLEXIBLE(FOR REAR BRAKE TUBE) [01.1979 - 07.1983] RN42,44..3QT,HVY |
96910-34005 |
US $20.24 |
||
|
47321
|
47321
47321-35130
Tube, Rear Brake, No.1
[08.1979 - 08.1980] RN42..HVY |
47321-35130 |
— | ||
|
47321A
|
47321A
90413-10054 Way(For Rear Brake Tube)[08.1978 - 07.1983] LN40,RN32,34,42,44 |
90413-10054 |
US $12.67 |
||
|
47322
|
47322
47322-35040 Tube, Rear Brake, No.2[08.1978 - 08.1982] LN40,RN42,44 |
47322-35040 |
US $28.68 |
||
|
47323
|
47323
47323-35020 Tube, Rear Brake, No.4REAR BRAKE, NO.3 [01.1979 - 07.1983] RN42,44..3QT,HVY |
47323-35020 |
US $7.28 |
||
|
47324
|
47324
47324-35010 Tube, Rear Brake, No.4[08.1979 - 07.1983] RN42,44..HVY |
47324-35010 |
US $7.86 |
||
| replacement | |||||
|
47324
|
47324
47324-35140 Tube, Rear Brake, No.4[08.1979 - 07.1983] RN42,44..HVY |
47324-35140 |
US $8.15 |
||
|
47325
|
47325
47325-35020 Tube, Rear Brake, No.5[08.1979 - 07.1983] RN42,44..HVY |
47325-35020 |
US $20.53 |
||
| replacement | |||||
|
47325
|
47325
47325-35150 Tube, Rear Brake, No.5[08.1979 - 07.1983] RN42,44..HVY |
47325-35150 |
US $20.24 |
||
|
47351
|
47351
47354-35042
Bracket, Flexible Hose(For Front Rh)
[08.1979 - 07.1983] RN42,44..HVY |
47354-35042 |
— | ||
|
47352
|
47352
47355-35042
Bracket, Flexible Hose(For Front Lh)
[08.1979 - 07.1983] RN42,44..HVY |
47355-35042 |
— | ||
|
47353
|
47353
47352-35060
Bracket, Flexible Hose(For Rear)
[01.1979 - 07.1983] RN42,44..3QT,HVY |
47352-35060 |
— | ||
|
9046106487
|
9046106487
90461-06487
New Genuine Part
|
90461-06487 |
— | ||
| replacement | |||||
|
9046106487
|
9046106487
90461-08567 New Genuine Part |
90461-08567 |
US $1.43 |
||
|
9046108323
|
9046108323
90461-08323 New Genuine Part |
90461-08323 |
US $3.14 |
||
|
9046108324
|
9046108324
90461-08324
New Genuine Part
|
90461-08324 |
— | ||
|
9046108325
|
9046108325
90461-08325
New Genuine Part
|
90461-08325 |
— | ||
|
9046110469
|
9046110469
90461-10469 New Genuine Part |
90461-10469 |
US $8.15 |
||
|
9048001068
|
9048001068
90480-01068
New Genuine Part
|
90480-01068 |
— | ||
|
9048001069
|
9048001069
90480-01069 Grommet(For Brake Tube) |
90480-01069 |
US $4.30 |
||
|
9048001071
|
9048001071
90480-01071
Grommet, No.2(For Front Brake Tube)
|
90480-01071 |
— | ||
|
9161140812
|
9161140812
91611-40812
Bolt(for Drive Plate & Torque Converter Setting)
|
91611-40812 |
— | ||
| replacement | |||||
|
9161140812
|
9161140812
91611-B0812 Bolt |
91611-B0812 |
from US $0.76 |
||
|
9161140820
|
9161140820
91611-40820
Bolt(For Intake Manifold To Exhaust Manifold)
|
91611-40820 |
— | ||
|
9161140830
|
9161140830
91611-40830
Bolt(For Clutch Release Cylinder Setting)
|
91611-40830 |
— | ||
| replacement | |||||
|
9161140830
|
9161140830
91611-60830 Bolt(For Clutch Release Cylinder Setting) |
91611-60830 |
from US $1.41 |
||
|
9161640820
|
9161640820
91616-40820 Bolt, Engine Rear Cover Hinge Set |
91616-40820 |
US $1.93 |
||
|
9616001200
|
9616001200
96160-01200 Ring, E(For Clutch Release Cable) |
96160-01200 |
from US $1.50 |
||
|
9622120905
|
9622120905
96221-20905
New Genuine Part
|
96221-20905 |
— | ||
| replacement | |||||
|
9622120905
|
9622120905
96221-34905 Clamp |
96221-34905 |
US $4.30 |
||
|
9699110080
|
9699110080
96991-10080 CLIP |
96991-10080 |
from US $1.16 |
||
