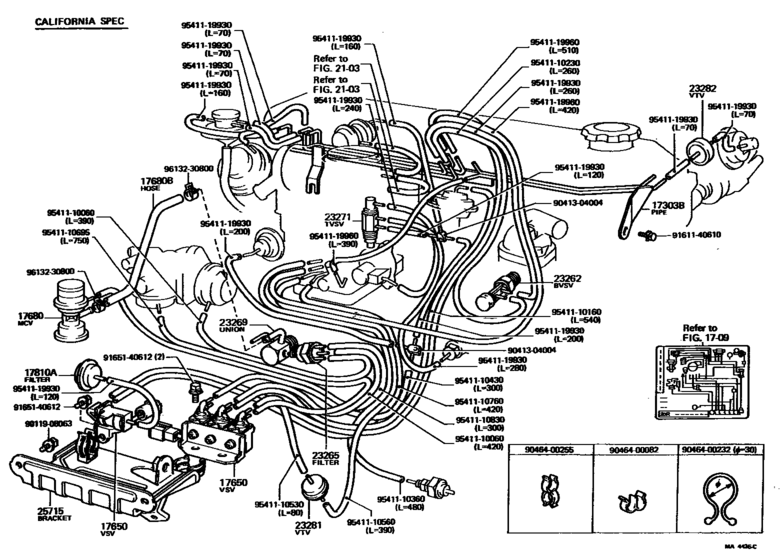

Vacuum Piping ([08.1979 - 08.1980] (7908-8008)20R..MTM..3QT,HLF..USA) Diagram Toyota PICKUP
- Year
- 1978 - 1980
- Sales region
- U.S.A.
- Frame
- RN42
- grade
- DLX
- ENGINE
- 20R
- TRANSMISSION
- MTM
- DESTINATION
- USA
- From
- 08.1978
- To
- 08.1980
- Gear Shift Type
- 5F
- Loading Capacity
- HLF
- Building Condition
- IV
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
17303B
|
17303B
17303-38040
Pipe Sub-Assy, Air, No.1
[08.1978 - 08.1979] 20R..RN3#,4#..USA CALIFORNIA SPEC |
17303-38040 |
— | ||
|
17303B
|
17303B
17303-38050
Pipe Sub-Assy, Air, No.1
[08.1978 - 08.1979] 20R..RN32,42 |
17303-38050 |
— | ||
|
17303B
|
17303B
17303-38060
Pipe Sub-Assy, Air, No.1
[08.1979 - 08.1980] 20R..RN32,42; 20R..RN37..USA |
17303-38060 |
— | ||
|
17650
|
17650
89570-14080
Valve Assy, Vacuum Switching
[08.1979 - 08.1980] 20R..RN37..USA AI,TP&EVAPO; 20R..RN32,42..MTM AI,TP&EVAPO; 20R..RN32,42..3FC..USA AI,TP&EVAPO,CALIFORNIA SPEC |
89570-14080 |
— | ||
|
17650
|
17650
89570-14090
Valve Assy, Vacuum Switching
[08.1979 - 08.1980] 20R..RN42..HVY EGR; 20R..RN3#,4#..MTM..(3QT,HLF)..USA CALIFORNIA SPEC,EGR |
89570-14090 |
— | ||
|
17650
|
17650
89570-35060
Valve Assy, Vacuum Switching
[08.1978 - 08.1979] 20R..RN32,42 |
89570-35060 |
— | ||
|
17650
|
17650
89570-35070
Valve Assy, Vacuum Switching
[08.1978 - 08.1979] 20R..RN3#,4#..USA CALIFORNIA SPEC |
89570-35070 |
— | ||
|
17650
|
17650
89570-35090
Valve Assy, Vacuum Switching
[08.1978 - 08.1979] 20R..RN3#,4#..MTM..USA *THO |
89570-35090 |
— | ||
|
17680
|
17680
17680-38011
Valve Assy, Mixture Control
[08.1979 - 08.1980] 20R..RN42..HVY; 20R..RN3#,4#..MTM..(3QT,HLF)..USA CALIFORNIA SPEC |
17680-38011 |
— | ||
|
17680B
|
17680B
17346-38021
Hose(For Mixture Control Valve)
[08.1979 - 08.1980] 20R..RN42..HVY; 20R..RN3#,4#..MTM..(3QT,HLF)..USA CALIFORNIA SPEC |
17346-38021 |
— | ||
|
17810A
|
17810A
17810-38010
Filter Assy, Air
[08.1979 - 08.1980] 20R..RN42..HVY; 20R..RN3#,4#..MTM..(3QT,HLF)..USA CALIFORNIA SPEC |
17810-38010 |
— | ||
|
23262
|
23262
25820-13010
Valve, Bimetal Vacuum Switching, No.1
[08.1979 - 08.1980] 20R..RN32,42 |
25820-13010 |
— | ||
|
23262
|
23262
90925-05035 Valve, Bimetal Vacuum Switching, No.1[08.1978 - 08.1979] 20R..RN32,42 |
90925-05035 |
from US $36.65 |
||
|
23265
|
23265
90917-11023 Filter, Gas, No.1[08.1978 - 08.1979] 20R..RN32,42 |
90917-11023 |
from US $23.41 |
||
|
23265
|
23265
90917-11024
Filter, Gas, No.1
[08.1979 - 08.1980] 20R..RN32,42; 20R..RN37..USA |
90917-11024 |
— | ||
| replacement | |||||
|
23265
|
23265
90917-11027 Filter, Gas, No.1[08.1979 - 08.1980] 20R..RN32,42; 20R..RN37..USA |
90917-11027 |
from US $26.03 |
||
|
23269
|
23269
90404-54010 Union(For Gas Filter)[08.1978 - 08.1979] 20R..RN3#,4# |
90404-54010 |
US $8.30 |
||
|
23269
|
23269
90404-54014 Union(For Gas Filter)[08.1979 - 08.1980] 20R..RN42..HVY; 20R..RN3#,4#..MTM..(3QT,HLF)..USA CALIFORNIA SPEC |
90404-54014 |
US $15.14 |
||
|
23271
|
23271
90925-02057
Valve, Thermostatic Vacuum Switching, No.1
[08.1978 - 08.1979] 20R..RN32,42 |
90925-02057 |
— | ||
|
23271
|
23271
90925-02060
Valve, Thermostatic Vacuum Switching, No.1
[08.1979 - 08.1980] 20R..RN3#,4# |
90925-02060 |
— | ||
|
23281
|
23281
90925-01031
Valve, Vacuum Transmitting, No.1
[08.1978 - 08.1979] 20R..RN32,42 |
90925-01031 |
— | ||
|
23282
|
23282
90925-01014
Valve, Vacuum Transmitting, No.1
[08.1979 - 08.1980] 20R..RN42..HVY; 20R..RN3#,4#..MTM..(3QT,HLF)..USA; 20R..RN32,42..CND |
90925-01014 |
— | ||
|
23282
|
23282
90925-01021 Valve, Vacuum Transmitting, No.1[08.1979 - 08.1980] 20R..RN32,42..3FC; 20R..RN3#,4#..(3QT,HLF)..USA CALIFORNIA SPEC |
90925-01021 |
from US $18.35 |
||
|
23282
|
23282
90925-01032
Valve, Vacuum Transmitting, No.1
[08.1978 - 08.1979] 20R..RN32,42 |
90925-01032 |
— | ||
|
25715
|
25715
25715-38050
Bracket, Emission Control Valve
[08.1978 - 08.1979] 20R..RN32,42 |
25715-38050 |
— | ||
|
25715
|
25715
25715-38051
Bracket, Emission Control Valve
[08.1979 - 08.1980] 20R..RN42..HVY; 20R..RN3#,4#..MTM..(3QT,HLF)..USA CALIFORNIA SPEC |
25715-38051 |
— | ||
|
9011908063
|
9011908063
90119-08063 BOLT |
90119-08063 |
US $1.51 |
||
|
9041304004
|
9041304004
90413-04004 Way, 3(For Canister) |
90413-04004 |
US $2.62 |
||
|
9046400082
|
9046400082
90464-00082 Clamp(For Resistive Cord) |
90464-00082 |
US $1.79 |
||
|
9046400232
|
9046400232
90464-00232 New Genuine Part |
90464-00232 |
US $0.52 |
||
|
9046400255
|
9046400255
90464-00255
New Genuine Part
|
90464-00255 |
— | ||
|
9161140610
|
9161140610
91611-40610
Bolt(For Dust Cover To Steering Knuckle Arm Setting)
|
91611-40610 |
— | ||
| replacement | |||||
|
9161140610
|
9161140610
91611-B0610 Bolt (For Transfer Oil Receiver No.1) |
91611-B0610 |
from US $0.78 |
||
|
9165140612
|
9165140612
91651-40612 BOLT |
91651-40612 |
from US $0.95 |
||
| replacement | |||||
|
9165140612
|
9165140612
90080-11225 New Genuine Part |
90080-11225 |
US $2.97 |
||
|
9541110060
|
9541110060
95411-10060 Hose, Vacuum |
95411-10060 |
US $12.23 |
||
| replacement | |||||
|
9541110060
|
9541110060
90999-92003
Hose, Breather (For Transfer Case)
|
90999-92003 |
— | ||
|
9541110160
|
9541110160
95411-10160
Hose, Cruise Control Vacuum
|
95411-10160 |
— | ||
| replacement | |||||
|
9541110160
|
9541110160
90999-92003
Hose, Breather (For Transfer Case)
|
90999-92003 |
— | ||
|
9541110230
|
9541110230
95411-10230 Hose, Vacuum, No.2 (For Front Drive Shift) |
95411-10230 |
US $6.70 |
||
| replacement | |||||
|
9541110230
|
9541110230
90999-92002
Air Hose (300 mm)
|
90999-92002 |
— | ||
|
9541110360
|
9541110360
95411-10360
Hose (For Idle Up Device)
|
95411-10360 |
— | ||
| replacement | |||||
|
9541110360
|
9541110360
90999-92003
Hose, Breather (For Transfer Case)
|
90999-92003 |
— | ||
|
9541110430
|
9541110430
95411-10430 Hose (For Idle Up Device) |
95411-10430 |
US $6.84 |
||
| replacement | |||||
|
9541110430
|
9541110430
90999-92002
Air Hose (300 mm)
|
90999-92002 |
— | ||
|
9541110530
|
9541110530
95411-10530 Hose, No.1(For Opener) |
95411-10530 |
US $6.41 |
||
| replacement | |||||
|
9541110530
|
9541110530
90999-92002
Air Hose (300 mm)
|
90999-92002 |
— | ||
|
9541110560
|
9541110560
95411-10560 Hose, Vacuum, No.9 (For Heater Or Air Conditioner) |
95411-10560 |
US $11.65 |
||
| replacement | |||||
|
9541110560
|
9541110560
90999-92003
Hose, Breather (For Transfer Case)
|
90999-92003 |
— | ||
|
9541110695
|
9541110695
95411-10695 Hose, Fuel, No.1(For Charcoal Canister) |
95411-10695 |
US $8.15 |
||
| replacement | |||||
|
9541110695
|
9541110695
90999-92004 Hose, Vacuum, No.1 (For Front Drive Shift) |
90999-92004 |
from US $8.76 |
||
|
9541110760
|
9541110760
95411-10760 Hose, Vacuum, No.7 (For Heater Or Air Conditioner) |
95411-10760 |
US $11.65 |
||
| replacement | |||||
|
9541110760
|
9541110760
90999-92003
Hose, Breather (For Transfer Case)
|
90999-92003 |
— | ||
|
9541110830
|
9541110830
95411-10830 Hose, Cruise Control Vacuum |
95411-10830 |
US $6.70 |
||
| replacement | |||||
|
9541110830
|
9541110830
90999-92002
Air Hose (300 mm)
|
90999-92002 |
— | ||
|
9541119930
|
9541119930
95411-19930
Hose(For Carburetor To Manifold)
|
95411-19930 |
— | ||
| replacement | |||||
|
9541119930
|
9541119930
90999-92002
Air Hose (300 mm)
|
90999-92002 |
— | ||
|
9541119960
|
9541119960
95411-19960
Hose, Vacuum, No.2 (For Front Drive Shift)
|
95411-19960 |
— | ||
| replacement | |||||
|
9541119960
|
9541119960
90999-92003
Hose, Breather (For Transfer Case)
|
90999-92003 |
— | ||
|
9613230800
|
9613230800
96132-30800
Clip, No.3(For Idle-Up Hose)
|
96132-30800 |
— | ||
| replacement | |||||
|
9613230800
|
9613230800
96132-51300 Clip(For Ventilation Hose No.2) |
96132-51300 |
from US $1.44 |
||
|
9641119930
|
9641119930
96411-19930
New Genuine Part
|
96411-19930 |
— | ||
