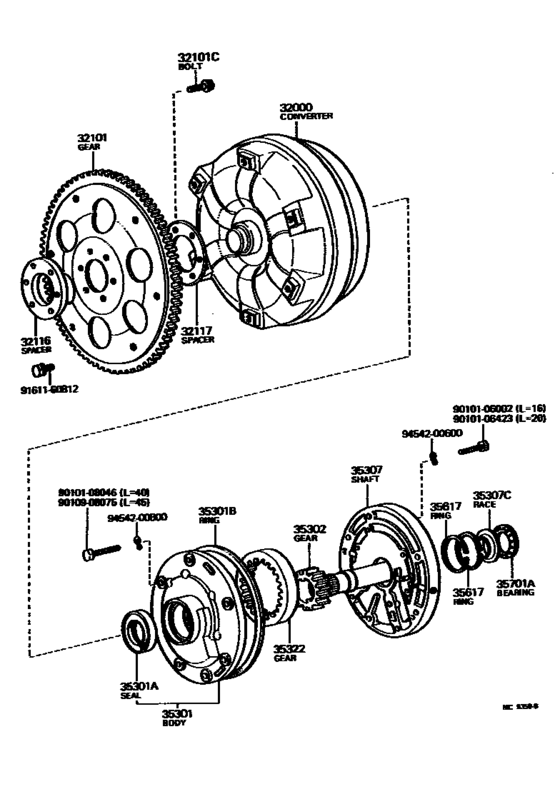

Torque Converter, Front Oil Pump & Chain (Atm) ([08.1978 - 08.1981] (7808-8108)3FC) Diagram Toyota PICKUP
- Year
- 1980 - 1981
- Sales region
- U.S.A.
- Frame
- RN44
- grade
- DLX
- ENGINE
- 22R
- TRANSMISSION
- ATM
- DESTINATION
- CND
- From
- 08.1980
- To
- 08.1981
- Gear Shift Type
- 3FC
- Loading Capacity
- HLF
- Building Condition
- CBU
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
32000
|
32000
32000-22030 Converter Assy, TorqueTORQUE [08.1980 - 08.1981] RN34,44..3FC |
32000-22030 |
US $1,403.58 |
||
|
32000
|
32000
32000-30100 Converter Assy, TorqueTORQUE [08.1981 - 07.1983] RN34,44..4FC |
32000-30100 |
US $1,409.41 |
||
| replacement | |||||
|
32000
|
32000
32000-30101
Converter Assy, Torque
[08.1981 - 07.1983] RN34,44..4FC |
32000-30101 |
— | ||
|
32101
|
32101
32101-20050
Gear Sub-Assy, Drive Plate & Ring
[08.1978 - 07.1983] RN32,34,42,44..ATM |
32101-20050 |
— | ||
|
32101C
|
32101C
90913-01011 Bolt, Flywheel Setting[08.1978 - 07.1983] RN32,34,42,44..ATM *17-1.25PX26-18 |
90913-01011 |
from US $3.32 |
||
|
32116
|
32116
32116-20011
Spacer, Drive Plate, Front
[08.1978 - 07.1983] RN32,34,42,44..ATM |
32116-20011 |
— | ||
|
32117
|
32117
32117-20021 Spacer, Drive Plate, RearDRIVE PLATE, REAR [08.1978 - 07.1983] RN32,34,42,44..ATM |
32117-20021 |
US $5.39 |
||
|
35301
|
35301
35301-22012 Body Sub-Assy, Front Oil PumpFRONT OIL PUMP [09.1979 - 11.1980] RN32,34,42,44..3FC |
35301-22012 |
US $243.15 |
||
| replacements | |||||
|
35301
|
35301
91511-K0840 Bolt(For Crankshaft Bearing Cap Set)[09.1979 - 11.1980] RN32,34,42,44..3FC |
91511-K0840 |
US $3.05 |
||
|
35301
|
35301
90119-06180 Bolt (For Stator Shaft)[09.1979 - 11.1980] RN32,34,42,44..3FC |
90119-06180 |
US $1.02 |
||
|
35301
|
35301
35301-30030
Body Sub-Assy, Front Oil Pump
[09.1979 - 11.1980] RN32,34,42,44..3FC |
35301-30030 |
— | ||
|
35301
|
35301
35301-30030
Body Sub-Assy, Front Oil Pump
[11.1980 - 08.1981] RN34,44..3FC |
35301-30030 |
— | ||
|
35301A
|
35301A
90311-38129 Seal, Oil (For Front Oil Pump)[08.1978 - 07.1983] RN32,34,42,44..ATM |
90311-38129 |
US $7.86 |
||
| replacement | |||||
|
35301A
|
35301A
90311-38020 Seal, Oil (For Front Oil Pump)[08.1978 - 07.1983] RN32,34,42,44..ATM |
90311-38020 |
from US $9.50 |
||
|
35301B
|
35301B
90301-99010 Ring, O (For Front Oil Pump Body)[09.1979 - 07.1983] RN32,34,42,44..ATM |
90301-99010 |
US $12.72 |
||
|
35302
|
35302
35321-22010
Gear Sub-Assy, Front Oil Pump Drive
[08.1978 - 07.1983] RN32,34,42,44..ATM |
35321-22010 |
— | ||
| replacement | |||||
|
35302
|
35302
35321-22090
Gear, Front Oil Pump Drive
[08.1978 - 07.1983] RN32,34,42,44..ATM |
35321-22090 |
— | ||
|
35307
|
35307
35370-22010 Shaft Sub-Assy, StatorSTATOR [09.1979 - 08.1981] RN32,34,42,44..3FC |
35370-22010 |
US $343.62 |
||
|
35307
|
35307
35370-30021
Shaft Sub-Assy, Stator
[08.1981 - 10.1981] RN34,44..4FC |
35370-30021 |
— | ||
|
35307C
|
35307C
35789-22010 Race, Thrust Bearing(For Overdrive Planetary Gear)[08.1978 - 10.1981] RN32,34,42,44..ATM T=4.3 |
35789-22010 |
US $6.99 |
||
|
35322
|
35322
35322-22010 Gear, Front Oil Pump Driven[08.1978 - 07.1983] RN32,34,42,44..ATM T=15.286-15.235 |
35322-22010 |
US $66.10 |
||
| replacement | |||||
|
35322
|
35322
35322-22090
Gear, Front Oil Pump Driven
[08.1978 - 07.1983] RN32,34,42,44..ATM T=15.286-15.235 |
35322-22090 |
— | ||
|
35617
|
35617
35617-16010 Ring, Oil Seal (For Overdrive Case)[08.1981 - 07.1983] RN34,44..4FC |
35617-16010 |
US $16.42 |
||
|
35617
|
35617
35617-22010
Ring, Seal (For Transfer Front Support)
[08.1978 - 08.1981] RN32,34,42,44..3FC |
35617-22010 |
— | ||
|
35701A
|
35701A
90374-24001 Bearing, Thrust Needle Roller(For Overdrive Planetary Gear)[08.1978 - 10.1981] RN32,34,42,44..ATM |
90374-24001 |
US $8.44 |
||
|
9010106002
|
9010106002
90101-06002 Bolt (For Stator Shaft) |
90101-06002 |
US $1.75 |
||
| replacement | |||||
|
9010106002
|
9010106002
90119-06180 Bolt (For Stator Shaft) |
90119-06180 |
US $1.02 |
||
|
9010106423
|
9010106423
90101-06423 Bolt (for Transaxle Case Upper Cover) |
90101-06423 |
US $2.18 |
||
| replacement | |||||
|
9010106423
|
9010106423
91511-H0620 Bolt (For Transaxle Case Upper Cover) |
91511-H0620 |
US $1.97 |
||
|
9010108046
|
9010108046
90101-08046 Bolt (For Front Oil Pump Setting) |
90101-08046 |
US $3.06 |
||
| replacement | |||||
|
9010108046
|
9010108046
91511-K0840 Bolt(For Crankshaft Bearing Cap Set) |
91511-K0840 |
US $3.05 |
||
|
9010908075
|
9010908075
90109-08075 Bolt (For Front Oil Pump Setting) |
90109-08075 |
US $4.37 |
||
| replacement | |||||
|
9010908075
|
9010908075
90109-08073 Bolt (For Front Oil Pump Setting) |
90109-08073 |
US $3.93 |
||
|
9161160812
|
9161160812
91611-60812
Bolt(For Drive Plate & Torque Converter Setting)
|
91611-60812 |
— | ||
| replacement | |||||
|
9161160812
|
9161160812
91611-B0812 Bolt |
91611-B0812 |
from US $0.76 |
||
|
9454200600
|
9454200600
94542-00600 New Genuine Part |
94542-00600 |
US $3.20 |
||
|
9454200800
|
9454200800
94542-00800 New Genuine Part |
94542-00800 |
US $2.18 |
||
