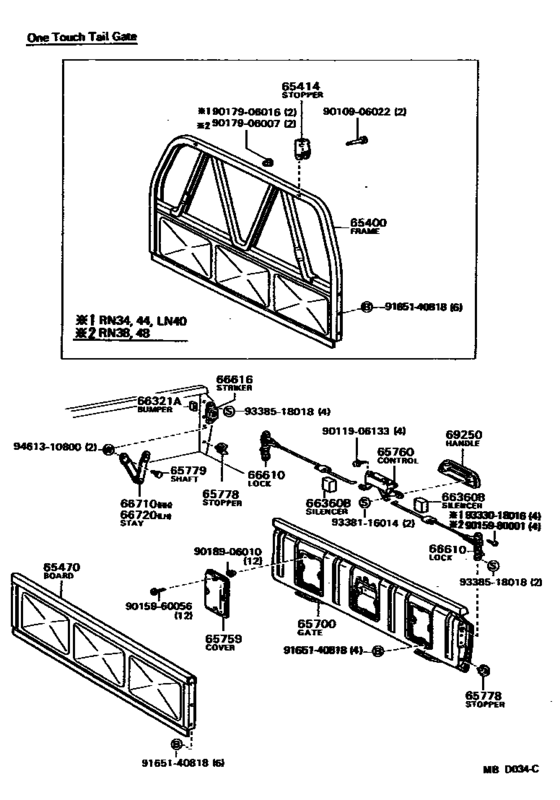

Rear Body Guard Frame & Tail Gate ([08.1981 - ] (8108- )CBU) Diagram Toyota PICKUP
- Year
- 1980 - 1983
- Sales region
- U.S.A.
- Frame
- RN44
- grade
- DLX
- ENGINE
- 22R
- TRANSMISSION
- MTM
- DESTINATION
- CND
- From
- 08.1980
- To
- 07.1983
- Gear Shift Type
- 4F
- Loading Capacity
- HLF
- Building Condition
- CBU
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
65470
|
65470
65470-89108
Board Assy, Header
[08.1980 - 07.1983] LN40,RN3#,4#..3QT,HLF W/O GUARD FRAME |
65470-89108 |
— | ||
|
65700
|
65700
65700-89122
Gate Assy, Rear Body Tail
[08.1981 - 07.1983] LN40,RN3#,4#..CBU ONE TOUCH TAIL GATE,TOYOTA |
65700-89122 |
— | ||
|
65700
|
65700
65700-95124
Gate Assy, Rear Body Tail
[08.1980 - 08.1981] LN40,RN3#,4#..CBU TOYOTA |
65700-95124 |
— | ||
| replacement | |||||
|
65700
|
65700
65700-95127
Gate Assy, Rear Body Tail
[08.1980 - 08.1981] LN40,RN3#,4#..CBU TOYOTA |
65700-95127 |
— | ||
|
65759
|
65759
65759-89101
Cover, Tail Gate Service Hole
[08.1981 - 07.1983] LN40,RN3#,4#..3QT,HLF ONE TOUCH TAIL GATE |
65759-89101 |
— | ||
|
65760
|
65760
65760-89101
Control Assy,tail Gate Lock
[08.1981 - 10.1982] LN40,RN3#,4#..3QT,HLF ONE TOUCH TAIL GATE |
65760-89101 |
— | ||
| replacement | |||||
|
65760
|
65760
65760-89102
Control Assy,tail Gate Lock
[08.1981 - 10.1982] LN40,RN3#,4#..3QT,HLF ONE TOUCH TAIL GATE |
65760-89102 |
— | ||
|
65760
|
65760
65760-89102
Control Assy,tail Gate Lock
[10.1982 - 07.1983] LN40,RN3#,4#..3QT,HLF ONE TOUCH TAIL GATE |
65760-89102 |
— | ||
|
65778
|
65778
65778-89102
Stopper, Tail Gate Stay
[08.1981 - 07.1983] LN40,RN3#,4#..3QT,HLF ONE TOUCH TAIL GATE |
65778-89102 |
— | ||
|
65779
|
65779
65779-89101
Shaft, Tail Gate Stay, Upper
[08.1981 - 07.1983] LN40,RN3#,4#..3QT,HLF ONE TOUCH TAIL GATE |
65779-89101 |
— | ||
|
66321A
|
66321A
66321-89107
Bumper, Gate Rubber
[08.1981 - 07.1983] LN40,RN3#,4#..3QT,HLF ONE TOUCH TAIL GATE |
66321-89107 |
— | ||
|
66360B
|
66360B
69759-89105
Silencer, Door Lock Link
[08.1981 - 07.1983] LN40,RN3#,4#..3QT,HLF ONE TOUCH TAIL GATE |
69759-89105 |
— | ||
|
66610
|
66610
65780-89101
Lock Assy, Tail Gate
[08.1981 - 07.1983] LN40,RN3#,4#..3QT,HLF ONE TOUCH TAIL GATE,RH |
65780-89101 |
— | ||
|
66610
|
66610
65790-89101
Lock Assy, Tail Gate
[08.1981 - 07.1983] LN40,RN3#,4#..3QT,HLF ONE TOUCH TAIL GATE,LH |
65790-89101 |
— | ||
|
66616
|
66616
65768-89101
Striker, Tail Gate Lock
[08.1981 - 07.1983] LN40,RN3#,4#..3QT,HLF ONE TOUCH TAIL GATE |
65768-89101 |
— | ||
| replacement | |||||
|
66616
|
66616
65768-89102 Striker, Tail Gate Lock[08.1981 - 07.1983] LN40,RN3#,4#..3QT,HLF ONE TOUCH TAIL GATE |
65768-89102 |
US $10.83 |
||
|
66710
|
66710
65770-89101
Stay Assy, Tail Gate, Rh
[08.1981 - 07.1983] LN40,RN3#,4#..3QT,HLF ONE TOUCH TAIL GATE |
65770-89101 |
— | ||
|
66720
|
66720
65770-89101
Stay Assy, Tail Gate, Rh
[08.1981 - 07.1983] LN40,RN3#,4#..3QT,HLF ONE TOUCH TAIL GATE |
65770-89101 |
— | ||
|
69250
|
69250
65755-89101
Handle Assy, Tail Gate Lock
[08.1981 - 07.1983] LN40,RN3#,4#..3QT,HLF ONE TOUCH TAIL GATE |
65755-89101 |
— | ||
|
9010906022
|
9010906022
90109-06022
Bolt
|
90109-06022 |
— | ||
|
9011906133
|
9011906133
90119-06133 New Genuine Part |
90119-06133 |
US $7.72 |
||
|
9015960056
|
9015960056
90159-60056 New Genuine Part |
90159-60056 |
US $3.64 |
||
|
9015980001
|
9015980001
90159-80001
SCREW
|
90159-80001 |
— | ||
|
9017906007
|
9017906007
90179-06007 Nut |
90179-06007 |
from US $0.82 |
||
|
9017906016
|
9017906016
90179-06016 New Genuine Part |
90179-06016 |
US $1.05 |
||
|
9018906010
|
9018906010
90189-06010 Clip(For Front Door Inside Handle) |
90189-06010 |
from US $1.20 |
||
|
9165140818
|
9165140818
91651-40818 BOLT, W-WASHER |
91651-40818 |
from US $1.16 |
||
|
9333018016
|
9333018016
93330-18016 New Genuine Part |
93330-18016 |
US $1.43 |
||
|
9338116014
|
9338116014
93381-16014 New Genuine Part |
93381-16014 |
US $0.87 |
||
|
9338518018
|
9338518018
93385-18018 New Genuine Part |
93385-18018 |
US $1.22 |
||
|
9461310800
|
9461310800
94613-10800 Spacer (For Control Select Lever Support) |
94613-10800 |
from US $0.67 |
||
