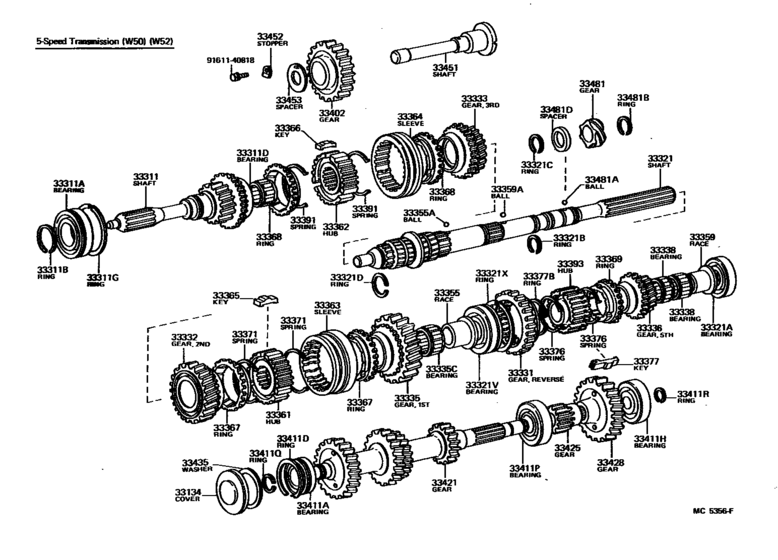

Transmission Gear (Mtm) ([08.1982 - ] (7808-8208)RN32,34,42,44..5F..HLF ; (8208- )R N34,44..5F) Diagram Toyota PICKUP
- Year
- 1981 - 1983
- Sales region
- U.S.A.
- Frame
- RN44
- grade
- STD
- ENGINE
- 22R
- TRANSMISSION
- MTM
- DESTINATION
- USA
- From
- 08.1981
- To
- 07.1983
- Gear Shift Type
- 5F
- Loading Capacity
- 3QT
- Building Condition
- CBU
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
33134
|
33134
33406-31010 Cover, Transmission Countershaft[08.1982 - 07.1983] RN34,44..MTM |
33406-31010 |
US $16.16 |
||
|
33311
|
33311
33301-30041
Shaft, Input
[08.1982 - 07.1983] RN34,44..MTM |
33301-30041 |
— | ||
|
33311
|
33311
33301-35030
Shaft, Input
[08.1981 - 08.1982] RN44..3QT..USA |
33301-35030 |
— | ||
| replacement | |||||
|
33311
|
33311
33301-35031
Shaft, Input
[08.1981 - 08.1982] RN44..3QT..USA |
33301-35031 |
— | ||
|
33311A
|
33311A
90363-32005
Bearing (For Input Shaft Front)
[08.1982 - 07.1983] RN34,44..MTM |
90363-32005 |
— | ||
|
33311A
|
33311A
90363-32010 Bearing (For Input Shaft Front)[12.1980 - 01.1982] LN40;RN44..3QT,HVY;RN3#,4#..4F..HLF |
90363-32010 |
US $104.83 |
||
| replacement | |||||
|
33311A
|
33311A
90365-32011 Bearing (For Input Shaft Front)[12.1980 - 01.1982] LN40;RN44..3QT,HVY;RN3#,4#..4F..HLF |
90365-32011 |
US $104.83 |
||
|
33311B
|
33311B
90520-30214 Ring, Shaft Snap (For Front Bearing)[08.1980 - 07.1983] LN40,RN3#,4#..MTM T=2.05,MARK 0,T=2.05-2.10 |
90520-30214 |
US $3.23 |
||
|
33311B
|
33311B
90520-30215 Ring, Shaft Snap (For Front Bearing)[08.1980 - 07.1983] LN40,RN3#,4#..MTM T=2.10,MARK 1,T=2.10-2.15 |
90520-30215 |
US $2.20 |
||
|
33311B
|
33311B
90520-30216 Ring, Shaft Snap (For Front Bearing)[08.1980 - 07.1983] LN40,RN3#,4#..MTM T=2.15,MARK 2,T=2.15-2.20 |
90520-30216 |
US $3.23 |
||
|
33311B
|
33311B
90520-30217 Ring, Shaft Snap (For Front Bearing)[08.1980 - 07.1983] LN40,RN3#,4#..MTM T=2.20,MARK 3,T=2.20-2.25 |
90520-30217 |
US $2.62 |
||
|
33311B
|
33311B
90520-30218 Ring, Shaft Snap (For Front Bearing)[08.1980 - 07.1983] LN40,RN3#,4#..MTM T=2.25,MARK 4,T=2.25-2.30 |
90520-30218 |
US $3.23 |
||
|
33311B
|
33311B
90520-30219 Ring, Shaft Snap (For Front Bearing)[08.1980 - 07.1983] LN40,RN3#,4#..MTM T=2.30,MARK 5,T=2.30-2.35 |
90520-30219 |
US $2.62 |
||
|
33311D
|
33311D
90361-06047 Bearing, Input Shaft[08.1980 - 02.1982] LN40,RN38,48;RN44..3QT,HVY;RN34,44..4F..HLF |
90361-06047 |
from US $1.37 |
||
|
33311D
|
33311D
90364-19043
Bearing, Input Shaft
[08.1982 - 07.1983] RN34,44..MTM |
90364-19043 |
— | ||
| replacement | |||||
|
33311D
|
33311D
90364-19006 Bearing, Input Shaft[08.1982 - 07.1983] RN34,44..MTM |
90364-19006 |
from US $28.22 |
||
|
33311G
|
33311G
90520-71221 Ring, Shaft Snap (For Front Bearing)[08.1978 - 08.1982] LN40,RN3#,4#..MTM |
90520-71221 |
US $4.12 |
||
|
33321
|
33321
33321-20071 Shaft, Output[08.1982 - 07.1983] RN34,44..MTM |
33321-20071 |
US $295.57 |
||
|
33321
|
33321
33321-35091 Shaft, Output[01.1981 - 02.1982] LN40;RN44..3QT,HVY;RN34,44..4F..HLF |
33321-35091 |
US $428.06 |
||
| replacement | |||||
|
33321
|
33321
33321-35092 Shaft, Output[01.1981 - 02.1982] LN40;RN44..3QT,HVY;RN34,44..4F..HLF |
33321-35092 |
US $270.82 |
||
|
33321A
|
33321A
97104-06228
Bearing (For Output Shaft Rear)
[08.1982 - 07.1983] RN34,44..MTM |
97104-06228 |
— | ||
|
33321B
|
33321B
90520-25005 Ring, Shaft Snap (For Output Shaft Bearing)[01.1981 - 02.1982] LN40,RN38,48;RN44..3QT,HVY;RN34,44..4F..HLF T=2.67-2.72,MARK A,T=2.67-2.72 |
90520-25005 |
from US $1.05 |
||
|
33321B
|
33321B
90520-25006 Ring, Shaft Snap (For Output Shaft Bearing)[01.1981 - 02.1982] LN40,RN38,48;RN44..3QT,HVY;RN34,44..4F..HLF T=2.73-2.78,MARK B,T=2.73-2.78 |
90520-25006 |
US $1.05 |
||
|
33321B
|
33321B
90520-25009 Ring, Shaft Snap (For Output Shaft Bearing)[01.1981 - 02.1982] LN40,RN38,48;RN44..3QT,HVY;RN34,44..4F..HLF T=2.79-2.84,MARK C,T=2.79-2.84 |
90520-25009 |
US $1.05 |
||
|
33321B
|
33321B
90520-25010 Ring, Shaft Snap (For Output Shaft Bearing)[01.1981 - 02.1982] LN40,RN38,48;RN44..3QT,HVY;RN34,44..4F..HLF T=2.85-2.90,MARK D,T=2.85-2.90 |
90520-25010 |
US $2.15 |
||
|
33321B
|
33321B
90520-25011 Ring, Shaft Snap (For Output Shaft Bearing)[01.1981 - 02.1982] LN40,RN38,48;RN44..3QT,HVY;RN34,44..4F..HLF T=2.91-2.96,MARK E,T=2.91-2.96 |
90520-25011 |
US $0.96 |
||
|
33321B
|
33321B
90520-25012 Ring, Shaft Snap (For Output Shaft Bearing)[01.1981 - 02.1982] LN40,RN38,48;RN44..3QT,HVY;RN34,44..4F..HLF T=2.97-3.02,MARK F,T=2.97-3.02 |
90520-25012 |
US $2.15 |
||
|
33321B
|
33321B
90520-25013 Ring, Shaft Snap (For Output Shaft Bearing)[01.1981 - 02.1982] LN40,RN38,48;RN44..3QT,HVY;RN34,44..4F..HLF T=3.03-3.08,MARK G,T=3.03-3.08 |
90520-25013 |
US $2.15 |
||
|
33321B
|
33321B
90520-25014 Ring, Shaft Snap (For Output Shaft Bearing)[01.1981 - 02.1982] LN40,RN38,48;RN44..3QT,HVY;RN34,44..4F..HLF T=3.09-3.14,MARK H,T=3.09-3.14 |
90520-25014 |
US $2.15 |
||
|
33321B
|
33321B
90520-25015 Ring, Shaft Snap (For Output Shaft Bearing)[01.1981 - 02.1982] LN40,RN38,48;RN44..3QT,HVY;RN34,44..4F..HLF T=3.15-3.20,MARK J,T=3.15-3.20 |
90520-25015 |
US $2.15 |
||
|
33321B
|
33321B
90520-25016 Ring, Shaft Snap (For Output Shaft Bearing)[01.1981 - 02.1982] LN40,RN38,48;RN44..3QT,HVY;RN34,44..4F..HLF T=3.21-3.26,MARK K,T=3.21-3.26 |
90520-25016 |
from US $0.96 |
||
|
33321B
|
33321B
90520-25017 Ring, Shaft Snap (For Output Shaft Bearing)[01.1981 - 02.1982] LN40,RN38,48;RN44..3QT,HVY;RN34,44..4F..HLF T=3.27-3.32,MARK L,T=3.27-3.32 |
90520-25017 |
US $1.05 |
||
|
33321B
|
33321B
90520-25270 Ring, Shaft Snap (For Output Shaft Bearing)[08.1982 - 07.1983] RN34,44..MTM T=2.43-2.48,MARK 10,T=2.43-2.48 |
90520-25270 |
US $3.23 |
||
|
33321B
|
33321B
90520-25271 Ring, Shaft Snap (For Output Shaft Bearing)[08.1982 - 07.1983] RN34,44..MTM T=2.49-2.54,MARK 11,T=2.49-2.54 |
90520-25271 |
US $3.23 |
||
|
33321B
|
33321B
90520-25272 Ring, Shaft Snap (For Output Shaft Bearing)[08.1982 - 07.1983] RN34,44..MTM T=2.55-2.60,MARK 12,T=2.55-2.60 |
90520-25272 |
US $3.23 |
||
|
33321B
|
33321B
90520-25273 Ring, Shaft Snap (For Output Shaft Bearing)[08.1982 - 07.1983] RN34,44..MTM T=2.61-2.66,MARK 13,T=2.61-2.66 |
90520-25273 |
US $3.23 |
||
|
33321B
|
33321B
90520-25277
Ring, Shaft Snap (For Output Shaft Bearing)
[08.1982 - 07.1983] RN34,44..MTM T=1.89-1.94 |
90520-25277 |
— | ||
|
33321B
|
33321B
90520-25278
Ring, Shaft Snap (For Output Shaft Bearing)
[08.1982 - 07.1983] RN34,44..MTM T=1.95-2.00 |
90520-25278 |
— | ||
|
33321B
|
33321B
90520-25279
Ring, Shaft Snap (For Output Shaft Bearing)
[08.1982 - 07.1983] RN34,44..MTM T=2.01-2.06 |
90520-25279 |
— | ||
|
33321B
|
33321B
90520-25280
Ring, Shaft Snap (For Output Shaft Bearing)
[08.1982 - 07.1983] RN34,44..MTM T=2.07-2.12 |
90520-25280 |
— | ||
|
33321B
|
33321B
90520-25281 Ring, Shaft Snap (For Output Shaft Bearing)[08.1982 - 07.1983] RN34,44..MTM T=2.13-2.18 |
90520-25281 |
US $2.04 |
||
|
33321B
|
33321B
90520-25282
Ring, Shaft Snap (For Output Shaft Bearing)
[08.1982 - 07.1983] RN34,44..MTM T=2.19-2.24 |
90520-25282 |
— | ||
|
33321B
|
33321B
90520-25283
Ring, Shaft Snap (For Output Shaft Bearing)
[08.1982 - 07.1983] RN34,44..MTM T=2.25-2.30 |
90520-25283 |
— | ||
|
33321B
|
33321B
90520-25284 Ring, Shaft Snap (For Output Shaft Bearing)[08.1982 - 07.1983] RN34,44..MTM T=2.31-2.36,MARK 8,T=2.31-2.36 |
90520-25284 |
US $1.14 |
||
|
33321B
|
33321B
90520-25285 Ring, Shaft Snap (For Output Shaft Bearing)[08.1982 - 07.1983] RN34,44..MTM T=2.37-2.42,MARK 9,T=2.37-2.42 |
90520-25285 |
US $1.05 |
||
|
33321C
|
33321C
90520-26179
Ring, Shaft Snap (For Output Shaft Bearing)
[08.1982 - 07.1983] RN34,44..MTM T=1.50,OD=31.3 |
90520-26179 |
— | ||
| replacement | |||||
|
33321C
|
33321C
90520-26061 Ring Or Spacer (For Mtm Speedometer Drive Gear)[08.1982 - 07.1983] RN34,44..MTM T=1.50,OD=31.3 |
90520-26061 |
US $0.96 |
||
|
33321C
|
33321C
90520-71221 Ring, Shaft Snap (For Front Bearing)[08.1980 - 02.1982] LN40,RN38,48;RN44..3QT,HVY;RN34,44..4F..HLF T=1.65,ID=71.1 |
90520-71221 |
US $4.12 |
||
|
33321D
|
33321D
90520-28010 Ring, Shaft Snap (For Clutch Hub Set)[08.1980 - 02.1982] LN40,RN38,48;RN44..3QT,HVY;RN34,44..4F..HLF T=1.85-1.90,MARK D-1,T=1.85-1.90 |
90520-28010 |
from US $3.31 |
||
|
33321D
|
33321D
90520-28011 Ring, Shaft Snap (For Clutch Hub Set)[08.1980 - 02.1982] LN40,RN38,48;RN44..3QT,HVY;RN34,44..4F..HLF T=1.95-2.00,MARK E-1,T=1.95-2.00 |
90520-28011 |
from US $2.48 |
||
|
33321D
|
33321D
90520-28012 Ring, Shaft Snap (For Clutch Hub Set)[08.1980 - 02.1982] LN40,RN38,48;RN44..3QT,HVY;RN34,44..4F..HLF T=1.75-1.80,MARK C-1,T=1.75-1.80 |
90520-28012 |
from US $2.15 |
||
|
33321D
|
33321D
90520-28013 Ring, Shaft Snap (For Clutch Hub Set)[08.1980 - 02.1982] LN40,RN38,48;RN44..3QT,HVY;RN34,44..4F..HLF T=2.05-2.10,MARK F-1,T=2.05-2.10 |
90520-28013 |
from US $1.60 |
||
|
33321D
|
33321D
90520-28245 Ring, Shaft Snap (For Output Shaft Bearing)[08.1980 - 02.1982] LN40,RN38,48;RN44..3QT,HVY;RN34,44..4F..HLF T=1.80-1.85,MARK D,T=1.80-1.85 |
90520-28245 |
from US $2.18 |
||
|
33321D
|
33321D
90520-28246 Ring, Shaft Snap (For Output Shaft Bearing)[08.1980 - 02.1982] LN40,RN38,48;RN44..3QT,HVY;RN34,44..4F..HLF T=1.90-1.95,MARK E,T=1.90-1.95 |
90520-28246 |
US $1.49 |
||
|
33321D
|
33321D
90520-28248 Ring, Shaft Snap (For Output Shaft Bearing)[08.1980 - 02.1982] LN40,RN38,48;RN44..3QT,HVY;RN34,44..4F..HLF T=2.00-2.05,MARK F,T=2.00-2.05 |
90520-28248 |
US $2.33 |
||
|
33321D
|
33321D
90520-30214 Ring, Shaft Snap (For Front Bearing)[08.1982 - 07.1983] RN34,44..MTM T=2.05,MARK 0,T=2.05-2.10 |
90520-30214 |
US $3.23 |
||
|
33321D
|
33321D
90520-30215 Ring, Shaft Snap (For Front Bearing)[08.1982 - 07.1983] RN34,44..MTM T=2.10,MARK 1,T=2.10-2.15 |
90520-30215 |
US $2.20 |
||
|
33321D
|
33321D
90520-30216 Ring, Shaft Snap (For Front Bearing)[08.1982 - 07.1983] RN34,44..MTM T=2.15,MARK 2,T=2.15-2.20 |
90520-30216 |
US $3.23 |
||
|
33321D
|
33321D
90520-30217 Ring, Shaft Snap (For Front Bearing)[08.1982 - 07.1983] RN34,44..MTM T=2.20,MARK 3,T=2.20-2.25 |
90520-30217 |
US $2.62 |
||
|
33321D
|
33321D
90520-30218 Ring, Shaft Snap (For Front Bearing)[08.1982 - 07.1983] RN34,44..MTM T=2.25,MARK 4,T=2.25-2.30 |
90520-30218 |
US $3.23 |
||
|
33321D
|
33321D
90520-30238
Ring, Shaft Snap (For Clutch Hub Set)
[08.1982 - 07.1983] RN34,44..MTM T=2.00-2.05 |
90520-30238 |
— | ||
|
33321V
|
33321V
90363-30026
Bearing (For Output Shaft Center)
[08.1980 - 02.1982] LN40,RN38,48;RN44..3QT,HVY;RN34,44..4F..HLF |
90363-30026 |
— | ||
| replacement | |||||
|
33321V
|
33321V
90363-30036 Bearing (For Output Shaft Center)[08.1980 - 02.1982] LN40,RN38,48;RN44..3QT,HVY;RN34,44..4F..HLF |
90363-30036 |
US $29.70 |
||
|
33321V
|
33321V
90363-32005
Bearing (For Input Shaft Front)
[08.1982 - 07.1983] RN34,44..MTM |
90363-32005 |
— | ||
|
33321X
|
33321X
90520-71221 Ring, Shaft Snap (For Front Bearing)[08.1982 - 07.1983] RN34,44..MTM T=1.65,ID=71.1 |
90520-71221 |
US $4.12 |
||
|
33331
|
33331
33331-20031
Gear, Reverse
[08.1982 - 07.1983] RN34,44..MTM N=39 |
33331-20031 |
— | ||
|
33331
|
33331
33331-35040 Gear, Reverse[08.1980 - 02.1982] LN40,RN38,48;RN44..3QT,HVY;RN34,44..4F..HLF N=34 |
33331-35040 |
US $183.46 |
||
|
33332
|
33332
33033-35010 Gear, 2Nd[08.1981 - 08.1982] RN44..3QT..USA N=28 |
33033-35010 |
US $219.86 |
||
|
33332
|
33332
33033-35030 Gear, 2Nd2ND [08.1982 - 07.1983] RN34,44..MTM N=31 |
33033-35030 |
US $195.10 |
||
|
33333
|
33333
33034-20020 Gear, 3Rd[08.1982 - 07.1983] RN34,44..MTM N=25 |
33034-20020 |
US $189.28 |
||
|
33333
|
33333
33034-35011
Gear, 3Rd
[08.1980 - 02.1982] LN40,RN38,48;RN44..3QT,HVY;RN34,44..4F..HLF N=27 |
33034-35011 |
— | ||
| replacement | |||||
|
33333
|
33333
33034-35030 Gear, 3Rd[08.1980 - 02.1982] LN40,RN38,48;RN44..3QT,HVY;RN34,44..4F..HLF N=27 |
33034-35030 |
US $153.75 |
||
|
33335
|
33335
33032-20040 Gear, 1St1ST [08.1982 - 07.1983] RN34,44..5F |
33032-20040 |
US $273.73 |
||
|
33335
|
33335
33032-35010
Gear, 1St
[08.1980 - 02.1982] LN40,RN38,48;RN44..3QT,HVY;RN34,44..4F..HLF N=33 |
33032-35010 |
— | ||
|
33335C
|
33335C
90364-39002
Bearing, Needle Roller(For 1St Gear)
[08.1980 - 02.1982] LN40,RN38,48;RN44..3QT,HVY;RN34,44..4F..HLF |
90364-39002 |
— | ||
|
33335C
|
33335C
90364-43004
Bearing, Needle Roller (For 2Nd Gear)
[04.1983 - 07.1983] RN34,44..MTM |
90364-43004 |
— | ||
|
33335C
|
33335C
90364-43042
Bearing, Needle Roller (For 3Rd Gear)
[08.1982 - 04.1983] RN34,44..MTM |
90364-43042 |
— | ||
| replacement | |||||
|
33335C
|
33335C
90364-43004
Bearing, Needle Roller (For 2Nd Gear)
[08.1982 - 04.1983] RN34,44..MTM |
90364-43004 |
— | ||
|
33336
|
33336
33036-35010 Gear, 5Th5TH [08.1982 - 07.1983] RN34,44..5F |
33036-35010 |
US $222.77 |
||
|
33336
|
33336
33336-30010
Gear, 4Th
[08.1981 - 08.1982] RN44..3QT..USA |
33336-30010 |
— | ||
| replacement | |||||
|
33336
|
33336
33336-28020 Gear, 4Th[08.1981 - 08.1982] RN44..3QT..USA |
33336-28020 |
from US $43.16 |
||
|
33338
|
33338
90364-35062
Bearing, Needle Roller (For 5Th Gear)
[08.1982 - 07.1983] RN34,44..5F |
90364-35062 |
— | ||
|
33355
|
33355
33355-31010 Race, 1St Gear Bearing Inner[08.1982 - 07.1983] RN34,44..MTM |
33355-31010 |
US $35.09 |
||
|
33355
|
33355
33355-35011 Race, 1St Gear Bearing Inner[08.1980 - 02.1982] LN40,RN38,48;RN44..3QT,HVY;RN34,44..4F..HLF |
33355-35011 |
US $45.14 |
||
|
33355A
|
33355A
90360-06004 Ball, Detent(For Gear Shift Head No.4)[08.1980 - 07.1983] LN40,RN3#,4#..MTM |
90360-06004 |
from US $0.82 |
||
| replacement | |||||
|
33355A
|
33355A
90080-36191
Ball, Check Valve
[08.1980 - 07.1983] LN40,RN3#,4#..MTM |
90080-36191 |
— | ||
|
33359
|
33359
33338-14021 Bush, 5Th Gear[08.1982 - 07.1983] RN34,44..5F |
33338-14021 |
US $37.56 |
||
|
33359A
|
33359A
90360-06004 Ball, Detent(For Gear Shift Head No.4)[08.1978 - 07.1983] LN40,RN32,34,38,42,44,48..5F |
90360-06004 |
from US $0.82 |
||
| replacement | |||||
|
33359A
|
33359A
90080-36191
Ball, Check Valve
[08.1978 - 07.1983] LN40,RN32,34,38,42,44,48..5F |
90080-36191 |
— | ||
|
33361
|
33361
33361-20030 Hub, Transmission Clutch, No.1[08.1982 - 07.1983] RN34,44..MTM |
33361-20030 |
US $80.08 |
||
|
33361
|
33361
33361-35020 Hub, Transmission Clutch, No.1[08.1980 - 02.1982] LN40,RN38,48;RN44..3QT,HVY;RN34,44..4F..HLF |
33361-35020 |
from US $71.31 |
||
|
33362
|
33362
33362-31011
Hub, Transmission Clutch, No.2
[08.1982 - 07.1983] RN34,44..MTM |
33362-31011 |
— | ||
|
33362
|
33362
33362-35020
Hub, Transmission Clutch, No.2
[08.1980 - 02.1982] LN40,RN38,48;RN44..3QT,HVY;RN34,44..4F..HLF |
33362-35020 |
— | ||
|
33363
|
33363
33363-20030 Sleeve, Transmission Hub, No.1[08.1982 - 07.1983] RN34,44..MTM N=39 |
33363-20030 |
US $123.76 |
||
|
33364
|
33364
33364-20013 Sleeve, Transmission Hub, No.2[08.1982 - 07.1983] RN34,44..5F |
33364-20013 |
US $123.76 |
||
|
33364
|
33364
33364-35010 Sleeve, Transmission Hub, No.2[08.1980 - 02.1982] LN40,RN38,48;RN44..3QT,HVY;RN34,44..4F..HLF |
33364-35010 |
US $109.20 |
||
|
33365
|
33365
33365-35020
Key, Synchromesh Shifting, No.1
[08.1980 - 02.1982] LN40,RN38,48;RN44..3QT,HVY;RN34,44..4F..HLF |
33365-35020 |
— | ||
| replacement | |||||
|
33365
|
33365
33365-35021 Key, Synchromesh Shifting, No.1[08.1980 - 02.1982] LN40,RN38,48;RN44..3QT,HVY;RN34,44..4F..HLF |
33365-35021 |
from US $2.51 |
||
|
33365
|
33365
33366-20011 Key, Synchromesh Shifting, No.1[08.1982 - 07.1983] RN34,44..MTM |
33366-20011 |
from US $3.08 |
||
|
33366
|
33366
33366-20011 Key, Synchromesh Shifting, No.1[08.1982 - 07.1983] RN34,44..MTM |
33366-20011 |
from US $3.08 |
||
|
33366
|
33366
33366-35020 Key, Synchromesh Shifting, No.2[08.1980 - 02.1982] LN40,RN38,48;RN44..3QT,HVY;RN34,44..4F..HLF |
33366-35020 |
from US $3.55 |
||
|
33367
|
33367
33368-20012 Ring, Synchronizer, No.1[08.1980 - 07.1983] LN40,RN3#,4#..MTM |
33368-20012 |
from US $25.99 |
||
|
33368
|
33368
33367-14010 Ring, Synchronizer, No.1[08.1980 - 02.1982] LN40,RN38,48;RN44..3QT,HVY;RN34,44..4F..HLF |
33367-14010 |
from US $20.37 |
||
|
33368
|
33368
33368-20012 Ring, Synchronizer, No.1[08.1982 - 07.1983] RN34,44..MTM |
33368-20012 |
from US $25.99 |
||
|
33369
|
33369
33367-14010 Ring, Synchronizer, No.1[08.1978 - 07.1983] LN40,RN32,34,38,42,44,48..5F |
33367-14010 |
from US $20.37 |
||
|
33371
|
33371
33371-14031 Spring, Synchromesh Shifting Key, No.1[08.1980 - 07.1983] LN40,RN3#,4#..MTM |
33371-14031 |
from US $1.16 |
||
|
33376
|
33376
33371-14010 Spring, Synchromesh Shifting Key, No.1[08.1980 - 07.1983] LN40,RN3#,4#..5F |
33371-14010 |
from US $1.14 |
||
|
33377
|
33377
33394-20010
Key, Synchromesh Shifting (For No.3 Clutch Hub)
[08.1982 - 07.1983] RN34,44..5F |
33394-20010 |
— | ||
|
33377
|
33377
33394-30010
Key, Synchromesh Shifting (For No.3 Clutch Hub)
[08.1981 - 08.1982] RN44..3QT..USA |
33394-30010 |
— | ||
| replacement | |||||
|
33377
|
33377
33394-30011 Key, Synchromesh Shifting (For No.3 Clutch Hub)[08.1981 - 08.1982] RN44..3QT..USA |
33394-30011 |
from US $2.83 |
||
|
33377B
|
33377B
90521-63147
Ring, Snap (For Synchromesh Shifting Key)
[08.1982 - 07.1983] RN34,44..5F |
90521-63147 |
— | ||
|
33391
|
33391
33371-14010 Spring, Synchromesh Shifting Key, No.1[08.1980 - 02.1982] LN40,RN38,48;RN44..3QT,HVY;RN34,44..4F..HLF |
33371-14010 |
from US $1.14 |
||
|
33391
|
33391
33371-14031 Spring, Synchromesh Shifting Key, No.1[08.1982 - 07.1983] RN34,44..MTM |
33371-14031 |
from US $1.16 |
||
|
33391
|
33391
33371-20010 Spring, Synchromesh Shifting Key, No.1[08.1978 - 08.1981] RN32,34,42,44..5F |
33371-20010 |
from US $1.37 |
||
|
33393
|
33393
33393-30020 Hub, Transmission Clutch, No.3[08.1982 - 07.1983] RN34,44..MTM |
33393-30020 |
US $101.92 |
||
|
33402
|
33402
33402-20031 Gear Sub-Assy, Reverse IdlerREVERSE IDLER [08.1982 - 07.1983] RN34,44..MTM N=31 |
33402-20031 |
US $196.56 |
||
|
33402
|
33402
33402-35030 Gear Sub-Assy, Reverse Idler[08.1980 - 02.1982] LN40,RN38,48;RN44..3QT,HVY;RN34,44..4F..HLF N=28 |
33402-35030 |
US $165.98 |
||
|
33411A
|
33411A
90365-25002 Bearing Or Roller(For Counter Gear Front)[08.1982 - 07.1983] RN34,44..MTM |
90365-25002 |
US $38.29 |
||
|
33411A
|
33411A
90365-25007 Bearing Or Roller(For Counter Gear Front)[08.1980 - 02.1982] LN40,RN38,48;RN44..3QT,HVY;RN34,44..4F..HLF |
90365-25007 |
US $61.30 |
||
|
33411D
|
33411D
90520-49222 Ring, Counter Gear Front Bearing Snap, No.1[08.1980 - 07.1983] LN40,RN3#,4#..MTM T=1.07,OD=55.6 |
90520-49222 |
US $3.76 |
||
|
33411H
|
33411H
90363-20075
Bearing Or Roller(For Counter Gear Rear)
[08.1982 - 07.1983] RN34,44..MTM |
90363-20075 |
— | ||
|
33411H
|
33411H
90365-18002
Bearing Or Roller(For Counter Gear Rear)
[08.1981 - 08.1982] RN44..3QT..USA |
90365-18002 |
— | ||
|
33411P
|
33411P
90365-28015
Bearing, Counter Shaft Center
[08.1982 - 07.1983] RN34,44..MTM |
90365-28015 |
— | ||
|
33411P
|
33411P
90365-31002 Bearing, Counter Shaft Center[08.1980 - 02.1982] LN40,RN38,48;RN44..3QT,HVY;RN34,44..4F..HLF |
90365-31002 |
US $31.27 |
||
|
33411Q
|
33411Q
90520-23089 Ring, Shaft Snap (For Input Shaft)[08.1980 - 02.1982] LN40,RN38,48;RN44..3QT,HVY;RN34,44..4F..HLF T=2.10-2.15,T=2.10-2.15 |
90520-23089 |
from US $2.33 |
||
|
33411Q
|
33411Q
90520-23090 Ring, Shaft Snap (For Output Shaft Bearing)[08.1980 - 02.1982] LN40,RN38,48;RN44..3QT,HVY;RN34,44..4F..HLF T=2.20-2.25,T=2.20-2.25 |
90520-23090 |
US $2.33 |
||
|
33411Q
|
33411Q
90520-23115 Ring, Shaft Snap (For Output Shaft Bearing)[08.1980 - 02.1982] LN40,RN38,48;RN44..3QT,HVY;RN34,44..4F..HLF T=2.05-2.10,T=2.05-2.10 |
90520-23115 |
US $2.33 |
||
|
33411Q
|
33411Q
90520-23143 Ring, Shaft Snap (For Output Shaft Bearing)[08.1980 - 02.1982] LN40,RN38,48;RN44..3QT,HVY;RN34,44..4F..HLF T=2.15-2.20,T=2.15-2.20 |
90520-23143 |
US $2.33 |
||
|
33411Q
|
33411Q
90520-23144 Ring, Shaft Snap (For Input Shaft)[08.1980 - 02.1982] LN40,RN38,48;RN44..3QT,HVY;RN34,44..4F..HLF T=2.25-2.30,T=2.25-2.30 |
90520-23144 |
US $1.05 |
||
|
33411Q
|
33411Q
90520-23145 Ring, Shaft Snap (For Output Shaft Bearing)[08.1980 - 02.1982] LN40,RN38,48;RN44..3QT,HVY;RN34,44..4F..HLF T=2.30-2.35,T=2.30-2.35 |
90520-23145 |
US $1.05 |
||
|
33411Q
|
33411Q
90520-23223
Ring, Counter Gear Front Bearing Snap, No.2
[08.1982 - 07.1983] RN34,44..MTM |
90520-23223 |
— | ||
|
33411R
|
33411R
90520-18264
Ring, Snap, Counter Gear Rear Bearing
[08.1982 - 07.1983] RN34,44..MTM T=2.00-2.05 |
90520-18264 |
— | ||
|
33411R
|
33411R
90520-18265
Ring, Snap, Counter Gear Rear Bearing
[08.1982 - 07.1983] RN34,44..MTM T=1.80-1.85 |
90520-18265 |
— | ||
|
33411R
|
33411R
90520-18266
Ring, Snap, Counter Gear Rear Bearing
[08.1982 - 07.1983] RN34,44..MTM T=1.60-1.65,T=1.60-1.65 |
90520-18266 |
— | ||
|
33411R
|
33411R
90520-18275
Ring, Snap, Counter Gear Rear Bearing
[08.1982 - 07.1983] RN34,44..MTM T=1.40-1.45 |
90520-18275 |
— | ||
|
33411R
|
33411R
90521-38001
Ring, Snap, Counter Gear Rear Bearing
[08.1981 - 08.1982] RN44..3QT..USA |
90521-38001 |
— | ||
|
33421
|
33421
33421-20060 Gear, Counter[08.1982 - 07.1983] RN34,44..5F |
33421-20060 |
US $406.22 |
||
|
33421
|
33421
33421-35071
Gear, Counter
[08.1981 - 08.1982] RN44..3QT..USA |
33421-35071 |
— | ||
| replacement | |||||
|
33421
|
33421
33421-35H02 Gear, Counter[08.1981 - 08.1982] RN44..3QT..USA |
33421-35H02 |
US $420.78 |
||
|
33425
|
33425
33425-20030 Gear, Countershaft ReverseCOUNTERSHAFT REVERSE [08.1982 - 07.1983] RN34,44..MTM |
33425-20030 |
US $59.70 |
||
|
33428
|
33428
33046-30020
Gear Sub-Assy, Countershaft, 4Th
[08.1981 - 08.1982] RN44..3QT..USA |
33046-30020 |
— | ||
| replacement | |||||
|
33428
|
33428
33046-35062 Gear Sub-Assy, Countershaft, 4Th[08.1981 - 08.1982] RN44..3QT..USA |
33046-35062 |
from US $138.03 |
||
|
33428
|
33428
33428-35050 Gear, Countershaft 5ThCOUNTERSHAFT 5TH [08.1982 - 07.1983] RN34,44..5F |
33428-35050 |
US $145.60 |
||
|
33435
|
33435
90560-38331 Washer, Counter Gear Case Side Thrust[08.1982 - 07.1983] RN34,44..MTM T=1.95-2.05 |
90560-38331 |
US $6.99 |
||
|
33435
|
33435
90560-38332 Washer, Counter Gear Case Side Thrust[08.1982 - 07.1983] RN34,44..MTM T=2.10-2.20 |
90560-38332 |
US $6.99 |
||
|
33435
|
33435
90560-38333 Washer, Counter Gear Case Side Thrust[08.1982 - 07.1983] RN34,44..MTM T=2.25-2.35 |
90560-38333 |
US $6.99 |
||
|
33435
|
33435
90560-38334 Washer, Counter Gear Case Side Thrust[08.1982 - 07.1983] RN34,44..MTM T=2.40-2.50 |
90560-38334 |
US $6.99 |
||
|
33451
|
33451
33451-14020 Shaft, Reverse Idler Gear[08.1982 - 07.1983] RN34,44..MTM |
33451-14020 |
US $38.29 |
||
|
33451
|
33451
33451-35020 Shaft, Reverse Idler Gear[08.1980 - 02.1982] LN40,RN38,48;RN44..3QT,HVY;RN34,44..4F..HLF |
33451-35020 |
US $25.48 |
||
|
33452
|
33452
33452-14010 Stopper, Reverse Idler Gear Shaft[08.1982 - 07.1983] RN34,44..MTM |
33452-14010 |
US $3.20 |
||
|
33452
|
33452
33452-36020 Stopper, Reverse Idler Gear Shaft[08.1980 - 02.1982] LN40,RN38,48;RN44..3QT,HVY;RN34,44..4F..HLF |
33452-36020 |
US $3.93 |
||
|
33453
|
33453
33453-14010 Spacer, Reverse Idler Gear Shaft[08.1982 - 07.1983] RN34,44..MTM |
33453-14010 |
US $9.03 |
||
|
33481
|
33481
33481-20090 Gear, Speedometer Drive (Mtm)[08.1981 - 08.1982] RN34,44..5F..(DLX,STD) N=6,N=6(DRIVEN GEAR N=15,16 OR 17) |
33481-20090 |
US $22.42 |
||
|
33481
|
33481
33481-22010 Gear, Speedometer Drive (Mtm)[08.1978 - 08.1981] RN32,34,42,44..5F N=6,MARK 6X18-20,N=6(DRIVEN GEAR N=18,19 OR 20) |
33481-22010 |
from US $19.04 |
||
|
33481A
|
33481A
90360-06004 Ball, Detent(For Gear Shift Head No.4)[09.1978 - 07.1983] LN40,RN32,34,42,44..MTM |
90360-06004 |
from US $0.82 |
||
| replacement | |||||
|
33481A
|
33481A
90080-36191
Ball, Check Valve
[09.1978 - 07.1983] LN40,RN32,34,42,44..MTM |
90080-36191 |
— | ||
|
33481B
|
33481B
90520-26179
Ring, Shaft Snap (For Output Shaft Bearing)
[08.1980 - 07.1983] LN40,RN34,44..MTM T=1.50,OD=31.3 |
90520-26179 |
— | ||
| replacement | |||||
|
33481B
|
33481B
90520-26061 Ring Or Spacer (For Mtm Speedometer Drive Gear)[08.1980 - 07.1983] LN40,RN34,44..MTM T=1.50,OD=31.3 |
90520-26061 |
US $0.96 |
||
|
33481D
|
33481D
90560-28339 Spacer (For Speedometer Drive Gear)[08.1982 - 07.1983] RN34,44..MTM |
90560-28339 |
US $4.66 |
||
|
9161140818
|
9161140818
91611-40818
Bolt(for Oil Receiver Pipe)
|
91611-40818 |
— | ||
| replacement | |||||
|
9161140818
|
9161140818
90119-08830 Bolt(For Oil Receiver Pipe) |
90119-08830 |
US $1.79 |
||
