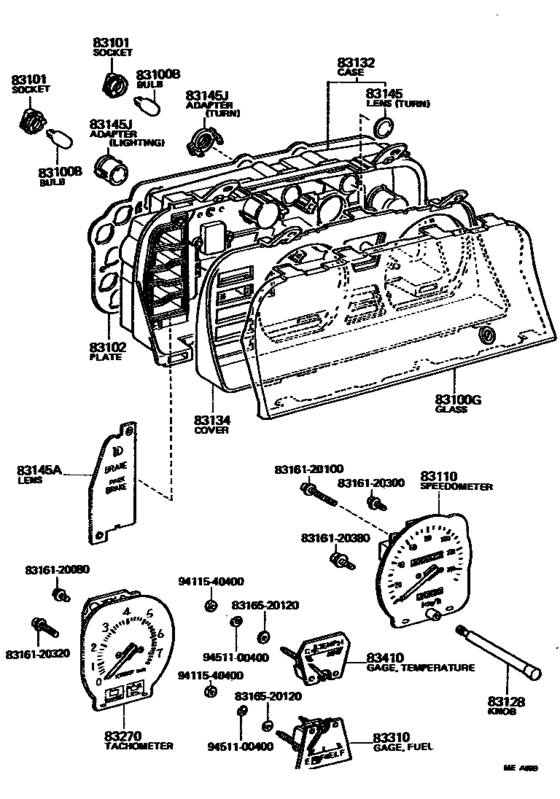

Meter ([08.1981 - ] (8108- )RN3#,4#..SR5) Diagram Toyota PICKUP
- Year
- 1980 - 1983
- Sales region
- U.S.A.
- Frame
- RN44
- grade
- SR5
- ENGINE
- 22R
- TRANSMISSION
- ATM
- DESTINATION
- USA
- From
- 08.1980
- To
- 07.1983
- Gear Shift Type
- 4FC
- Loading Capacity
- HLF
- Building Condition
- IV
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
83100B
|
83100B
99132-12034 Bulb, Position Indicator Lamp[08.1978 - 07.1983] LN40,RN3#,4# 12V 3.4W,12V 3.4W |
99132-12034 |
from US $1.79 |
||
| replacement | |||||
|
83100B
|
83100B
00234-00158 Bulb, Position Indicator Lamp[08.1978 - 07.1983] LN40,RN3#,4# 12V 3.4W,12V 3.4W |
00234-00158 |
US $1.59 |
||
|
83100G
|
83100G
83138-89130
Glass, Combination Meter
[08.1980 - 08.1981] RN38,48;RN34,44..SR5 W/TRIP METER |
83138-89130 |
— | ||
|
83100G
|
83100G
83138-89134 Glass, Combination MeterCOMBINATION METER [08.1980 - 08.1981] RN3#,4# W/CLOCK HOLE |
83138-89134 |
US $42.37 |
||
|
83100G
|
83100G
83138-89257
Glass, Combination Meter
[08.1981 - 07.1983] RN3#,4#..SR5 |
83138-89257 |
— | ||
|
83101
|
83101
83101-20040 Socket, Bulb(For Map Lamp)[08.1978 - 07.1983] LN40,RN3#,4# BULB=3.4W |
83101-20040 |
from US $1.52 |
||
|
83102
|
83102
83102-89130 Plate Sub-Assy, Combination Meter Circuit, No.1[08.1979 - 08.1981] RN3#,4# |
83102-89130 |
US $58.39 |
||
| replacement | |||||
|
83102
|
83102
83102-89142
Plate Sub-Assy, Combination Meter Circuit, No.1
[08.1979 - 08.1981] RN3#,4# |
83102-89142 |
— | ||
|
83102
|
83102
83247-89210 Plate Sub-Assy, Combination Meter Circuit, No.1COMBINATION METER CIRCUIT, NO.1 [08.1980 - 08.1981] RN3#,4#..USA CALIFORNIA SPEC |
83247-89210 |
US $88.82 |
||
|
83102
|
83102
83247-89220
Plate Sub-Assy, Combination Meter Circuit, No.1
[08.1981 - 07.1983] RN3#,4#..SR5 |
83247-89220 |
— | ||
|
83110
|
83110
83110-89165
Speedometer Assy
[08.1979 - 08.1981] RN32,34,42,44..SR5..USA |
83110-89165 |
— | ||
|
83110
|
83110
83110-89167
Speedometer Assy
[08.1980 - 08.1981] RN34,44..SR5..USA W/TACHOMETER,CALIFORNIA SPEC; RN38,48..USA W/TACHOMETER,CALIFORNIA SPEC |
83110-89167 |
— | ||
|
83110
|
83110
83110-89173
Speedometer Assy
[08.1981 - 07.1983] RN3#,4#..SR5..USA |
83110-89173 |
— | ||
|
83128
|
83128
83128-89130 Knob, Trip Counter[08.1980 - 08.1981] RN38,48;RN34,44..SR5..USA |
83128-89130 |
US $3.06 |
||
|
83132
|
83132
83132-89130 Case, Combination Meter[08.1980 - 08.1981] RN3#,4#..3QT,HLF |
83132-89130 |
US $45.28 |
||
|
83132
|
83132
83132-89207
Case, Combination Meter
[08.1980 - 08.1981] RN44..HVY; RN3#,4# CALIFORNIA SPEC |
83132-89207 |
— | ||
|
83132
|
83132
83132-89257
Case, Combination Meter
[08.1981 - 07.1983] RN3#,4#..SR5 |
83132-89257 |
— | ||
|
83134
|
83134
83134-89204
Cover, Combination Meter, No.1
[08.1980 - 08.1981] RN3#,4# |
83134-89204 |
— | ||
|
83134
|
83134
83134-89205
Cover, Combination Meter, No.1
[08.1980 - 08.1981] RN3#,4# W/CLOCK OR TACHOMETER |
83134-89205 |
— | ||
|
83134
|
83134
83134-89257
Cover, Combination Meter, No.1
[08.1981 - 07.1983] RN3#,4#..SR5 |
83134-89257 |
— | ||
|
83145
|
83145
83145-89114
Lens, Meter, No.1
[08.1978 - 08.1981] LN40,RN3#,4# |
83145-89114 |
— | ||
|
83145
|
83145
83145-89246 Lens, Meter, No.1[08.1981 - 07.1983] RN3#,4#..SR5 |
83145-89246 |
US $3.64 |
||
|
83145A
|
83145A
83145-89212
Lens, Meter, No.2
[08.1980 - 08.1981] LN40,RN3#,4# |
83145-89212 |
— | ||
|
83145A
|
83145A
83145-89241
Lens, Meter, No.2
[08.1981 - 04.1983] RN44..4FC..SR5 |
83145-89241 |
— | ||
|
83145A
|
83145A
83145-89253
Lens, Meter, No.2
[04.1983 - 07.1983] RN44..4FC..SR5 |
83145-89253 |
— | ||
|
83145J
|
83145J
83145-16020 Adapter, Meter Bulb Socket[08.1981 - 07.1983] LN40,RN3#,4# LIGHTING |
83145-16020 |
US $8.59 |
||
|
83145J
|
83145J
83145-89244
Adapter, Meter Bulb Socket
[08.1981 - 07.1983] RN3#,4#..SR5 TURN |
83145-89244 |
— | ||
|
83270
|
83270
83270-89166
Tachometer Assy, Engine
[08.1980 - 08.1981] RN38,48;RN34,44..SR5 |
83270-89166 |
— | ||
|
83270
|
83270
83270-89170
Tachometer Assy, Engine
[08.1981 - 03.1983] RN3#,4#..SR5 |
83270-89170 |
— | ||
|
83270
|
83270
83270-89177
Tachometer Assy, Engine
[03.1983 - 07.1983] RN3#,4#..SR5 |
83270-89177 |
— | ||
|
83310
|
83310
83243-89212 Gage Assy, Fuel Receiver[08.1981 - 07.1983] RN3#,4#..SR5 |
83243-89212 |
US $58.68 |
||
|
83310
|
83310
83310-89130
Gage Assy, Fuel Receiver
[08.1978 - 08.1981] LN40,RN3#,4# |
83310-89130 |
— | ||
|
83410
|
83410
83244-89213 Gage Assy, Water Temperature Receiver[08.1981 - 07.1983] RN3#,4#..SR5 |
83244-89213 |
US $38.58 |
||
|
83410
|
83410
83410-89173
Gage Assy, Water Temperature Receiver
[12.1979 - 08.1981] LN40,RN3#,4# |
83410-89173 |
— | ||
|
8316120080
|
8316120080
83161-20080
Case, Combination Meter Mirror, No.1
|
83161-20080 |
— | ||
|
8316120100
|
8316120100
83161-20100 Case, Combination Meter Mirror, No.1 |
83161-20100 |
US $1.69 |
||
|
8316120300
|
8316120300
83161-20300 Case, Combination Meter Mirror, No.1 |
83161-20300 |
US $1.75 |
||
|
8316120320
|
8316120320
83161-20320 Case, Combination Meter Mirror, No.1 |
83161-20320 |
US $1.02 |
||
|
8316120380
|
8316120380
83161-20380 Case, Combination Meter Mirror, No.1 |
83161-20380 |
US $1.14 |
||
|
8316520120
|
8316520120
83165-20120
Mirror, Combination Meter, No.2
|
83165-20120 |
— | ||
|
9411540400
|
9411540400
94115-40400
NUT
|
94115-40400 |
— | ||
| replacement | |||||
|
9411540400
|
9411540400
90076-01001 NUT |
90076-01001 |
US $2.33 |
||
|
9451100400
|
9451100400
94511-00400 WASHERSPRING |
94511-00400 |
US $3.58 |
||
