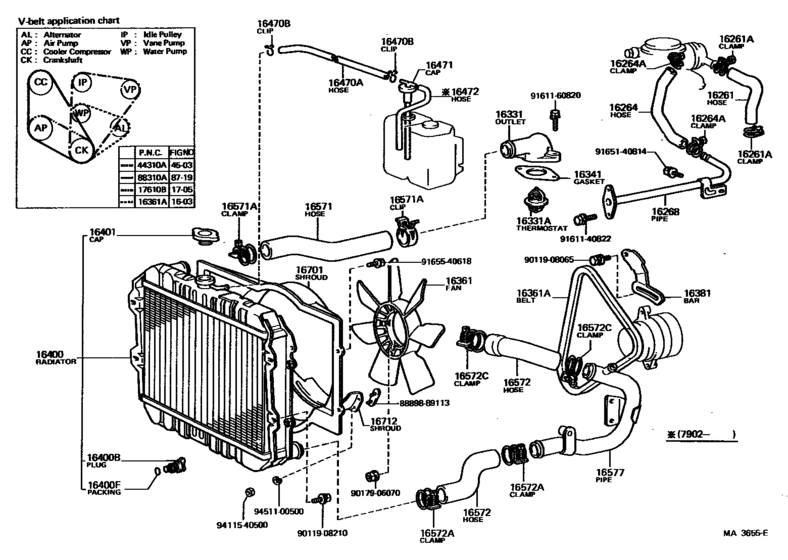

Radiator & Water Outlet ([01.1979 - 08.1979] (7901-7908)20R..RN37,47) Diagram Toyota PICKUP
- Year
- 1979 - 1980
- Sales region
- U.S.A.
- Frame
- RN47
- grade
- DLX
- ENGINE
- 20R
- TRANSMISSION
- MTM
- DESTINATION
- USA
- From
- 01.1979
- To
- 08.1980
- Gear Shift Type
- 4F
- Loading Capacity
- HLF
- Building Condition
- CBU
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
16261
|
16261
16261-38010
Hose, Water By-Pass
[08.1978 - 08.1980] 20R..RN3#,4# |
16261-38010 |
— | ||
|
16261A
|
16261A
90460-25002
Clamp Or Clip, Hose(For Water By-Pass Hose)
[08.1978 - 02.1979] 20R..RN3#,4# |
90460-25002 |
— | ||
| replacement | |||||
|
16261A
|
16261A
96112-10250 Clamp Or Clip, Hose(For Oil Cooler Hose)[08.1978 - 02.1979] 20R..RN3#,4# |
96112-10250 |
from US $2.22 |
||
|
16261A
|
16261A
96112-10250 Clamp Or Clip, Hose(For Oil Cooler Hose)[02.1979 - 08.1980] 20R..RN3#,4# |
96112-10250 |
from US $2.22 |
||
|
16264
|
16264
16264-38020
Hose, Water By-Pass, No.2
[08.1978 - 08.1979] 20R..RN3#,4# |
16264-38020 |
— | ||
|
16264
|
16264
16264-38030
Hose, Water By-Pass, No.2
[08.1979 - 08.1980] 20R..RN3#,4# |
16264-38030 |
— | ||
|
16264A
|
16264A
90460-25002
Clamp Or Clip, Hose(For Water By-Pass Hose)
[08.1978 - 02.1979] 20R..RN3#,4# |
90460-25002 |
— | ||
| replacement | |||||
|
16264A
|
16264A
96112-10250 Clamp Or Clip, Hose(For Oil Cooler Hose)[08.1978 - 02.1979] 20R..RN3#,4# |
96112-10250 |
from US $2.22 |
||
|
16264A
|
16264A
96112-10250 Clamp Or Clip, Hose(For Oil Cooler Hose)[02.1979 - 08.1980] 20R..RN3#,4# |
96112-10250 |
from US $2.22 |
||
|
16268
|
16268
16268-38010
Pipe, Water By-Pass, No.1
[08.1978 - 08.1979] 20R..RN3#,4# |
16268-38010 |
— | ||
|
16268
|
16268
16268-38020
Pipe, Water By-Pass, No.1
[08.1979 - 08.1980] 20R..RN3#,4# |
16268-38020 |
— | ||
|
16331
|
16331
16331-38011 Outlet, WaterWATER [08.1978 - 08.1979] 20R..RN3#,4# |
16331-38011 |
US $45.57 |
||
|
16331
|
16331
16331-38012 Outlet, WaterWATER [08.1979 - 08.1980] 20R..RN3#,4# |
16331-38012 |
US $49.21 |
||
|
16331A
|
16331A
90916-03034 Thermostat[08.1979 - 08.1980] 20R..RN42..HVY *WAX 82-95,FUJI-THOMSON; 20R..RN3#,4#..(3QT,HLF)..USA *CAL,*WAX 82-95,FUJI-THOMSON |
90916-03034 |
US $17.02 |
||
|
16331A
|
16331A
90916-03036
Thermostat
[08.1979 - 08.1980] 20R..RN3#,4#..3QT,HLF *WAX 88-100,FUJI-THOMSON |
90916-03036 |
— | ||
| replacement | |||||
|
16331A
|
16331A
90916-03078 Thermostat[08.1979 - 08.1980] 20R..RN3#,4#..3QT,HLF *WAX 88-100,FUJI-THOMSON |
90916-03078 |
from US $17.14 |
||
|
16341
|
16341
16341-38010
Gasket, Water Outlet
[08.1978 - 08.1980] 20R..RN3#,4# |
16341-38010 |
— | ||
| replacement | |||||
|
16341
|
16341
16341-34010 Gasket, Water Outlet[08.1978 - 08.1980] 20R..RN3#,4# |
16341-34010 |
US $5.73 |
||
|
16361
|
16361
16361-38010 Fan[08.1978 - 07.1983] 20R,22R..RN3#,4# 7 BLADES,OD=380 |
16361-38010 |
from US $77.39 |
||
|
16361A
|
16361A
99331-00880
Belt, V(For Fan & Alternator)
[08.1978 - 08.1979] 20R..RN3#,4# L=880 |
99331-00880 |
— | ||
|
16361A
|
16361A
99331-10880
Belt, V(For Fan & Alternator)
[08.1979 - 07.1983] 20R,22R..RN3#,4# L=880 |
99331-10880 |
— | ||
|
16381
|
16381
16381-38020 Bar, Fan Belt Adjusting[08.1978 - 07.1983] 20R,22R..RN3#,4# |
16381-38020 |
US $13.40 |
||
|
16400B
|
16400B
90910-09054
Plug, Radiator Drain Cock
[08.1978 - 07.1983] L..LN40; 20R,22R..RN3#,4# |
90910-09054 |
— | ||
| replacement | |||||
|
16400B
|
16400B
90910090541
Drain Plug
[08.1978 - 07.1983] L..LN40; 20R,22R..RN3#,4# |
90910090541 |
— | ||
|
16400F
|
16400F
96710-01007
Packing(For Radiator Drain Cock)
[08.1978 - 10.1981] L..LN40; 20R,22R..RN3#,4# |
96710-01007 |
— | ||
| replacement | |||||
|
16400F
|
16400F
96711-19007 Packing(For Radiator Drain Cock)[08.1978 - 10.1981] L..LN40; 20R,22R..RN3#,4# |
96711-19007 |
from US $2.09 |
||
|
16401
|
16401
16401-36011 Cap Sub-Assy, Radiator[08.1978 - 07.1983] L..LN40; 20R,22R..RN3#,4# |
16401-36011 |
from US $19.66 |
||
|
16470A
|
16470A
90445-12077
Hose Or Pipe(For Radiator Reserve Tank)
[08.1978 - 07.1983] 20R,22R..RN3#,4# |
90445-12077 |
— | ||
| replacement | |||||
|
16470A
|
16470A
90099-33370 Hose Or Pipe(For Radiator Reserve Tank)[08.1978 - 07.1983] 20R,22R..RN3#,4# |
90099-33370 |
US $3.84 |
||
|
16470B
|
16470B
90467-11085 Clamp Or Clip(For Radiator Breather Hose)[08.1978 - 07.1983] L..LN40; 20R,22R..RN3#,4# |
90467-11085 |
from US $0.70 |
||
|
16471
|
16471
85037-14010
Cap Sub-Assy, Reserve Tank
[08.1978 - 02.1979] 20R..RN3#,4# |
85037-14010 |
— | ||
|
16471
|
16471
85339-14010
Cap Sub-Assy, Reserve Tank
[02.1979 - 07.1983] 20R,22R..RN3#,4# |
85339-14010 |
— | ||
|
16472
|
16472
85338-14020
Hose, Breather
[02.1979 - 07.1983] 20R,22R..RN3#,4#..USA |
85338-14020 |
— | ||
|
16472
|
16472
85338-20020
Hose, Breather
[02.1979 - 07.1983] 20R,22R..RN3#,4#..CND; 20R,22R..RN3#,4#..USA COLD SPEC |
85338-20020 |
— | ||
|
16571
|
16571
16571-37010
Hose, Radiator, Inlet
[08.1979 - 03.1981] 20R,22R..RN3#,4# |
16571-37010 |
— | ||
| replacement | |||||
|
16571
|
16571
16571-35030
Hose, Radiator, Inlet
[08.1979 - 03.1981] 20R,22R..RN3#,4# |
16571-35030 |
— | ||
|
16571
|
16571
16571-38012
Hose, Radiator, Inlet
[08.1978 - 08.1979] 20R..RN3#,4# |
16571-38012 |
— | ||
|
16571A
|
16571A
90467-37001
Clip(For Water Inlet Hose)
[08.1978 - 08.1980] 20R..RN3#,4# OUTLET SIDE,ID=37 |
90467-37001 |
— | ||
| replacement | |||||
|
16571A
|
16571A
90467-37003 Clamp Or Clip, Hose(For Radiator Inlet)[08.1978 - 08.1980] 20R..RN3#,4# OUTLET SIDE,ID=37 |
90467-37003 |
from US $4.45 |
||
|
16571A
|
16571A
96111-10440 Clamp Or Clip, Hose(For Radiator Inlet)[08.1978 - 08.1980] 20R..RN3#,4# RADIATOR SIDE,ID=44 |
96111-10440 |
US $4.12 |
||
|
16572
|
16572
16572-38080
Hose, Radiator, Outlet
[01.1979 - 07.1983] 20R,22R..RN37,38,47,48 RADIATOR SIDE |
16572-38080 |
— | ||
|
16572
|
16572
16573-38020 Hose, Radiator, OutletRADIATOR, NO.3 [01.1979 - 07.1983] 20R,22R..RN37,38,47,48 ENGINE SIDE |
16573-38020 |
from US $14.61 |
||
|
16572A
|
16572A
96111-10460 Clamp Or Clip, Hose(For Radiator Inlet)[01.1979 - 07.1983] 20R,22R..RN37,38,47,48 |
96111-10460 |
from US $2.77 |
||
|
16572C
|
16572C
96111-10460 Clamp Or Clip, Hose(For Radiator Inlet)[01.1979 - 07.1983] 20R,22R..RN37,38,47,48 PIPE SIDE,ID=46 |
96111-10460 |
from US $2.77 |
||
|
16572C
|
16572C
96111-10480 Clamp Or Clip, Hose(For Radiator Outlet No.1)[01.1979 - 06.1982] 20R,22R..RN37,38,47,48 CHAIN COVER SIDE,ID=48 |
96111-10480 |
US $2.15 |
||
|
16701
|
16701
16711-95111
Shroud Sub-Assy, Fan
[01.1979 - 07.1983] 20R,22R..RN37,38,47,48 |
16711-95111 |
— | ||
|
16712
|
16712
16831-95111
Shroud, Fan, No.2
[01.1979 - 07.1983] 20R,22R..RN37,38,47,48 W/COOLER |
16831-95111 |
— | ||
|
44310A
|
44310A
99332-11135
Belt, V(For Vane Pump)
[08.1980 - 08.1981] RN3#,4#..MTM..(DLX,SR5)..HLF |
99332-11135 |
— | ||
|
88310A
|
88310A
99332-10920
Belt, V (Cooler Compressor To Crankshaft Pulley), No.1
[08.1980 - 08.1981] RN3#,4#..(3QT,HLF)..USA |
99332-10920 |
— | ||
|
88310A
|
88310A
99332-11110 Belt, V(For Vane Pump)V(FOR VANE PUMP) [08.1980 - 07.1983] RN44..HVY..USA; RN3#,4#..USA CALIFORNIA SPEC |
99332-11110 |
US $24.95 |
||
|
8889889113
|
8889889113
88898-89113
Tube Sub-assy, Equalizer
|
88898-89113 |
— | ||
|
9011908065
|
9011908065
90119-08065 New Genuine Part |
90119-08065 |
US $1.89 |
||
|
9011908210
|
9011908210
90119-08210 New Genuine Part |
90119-08210 |
US $4.95 |
||
|
9017906070
|
9017906070
90179-06070
Nut(For Steering Inter Shaft Dust Seal Cover)
|
90179-06070 |
— | ||
| replacement | |||||
|
9017906070
|
9017906070
90179-06159 Nut, Rear Wiper Link Pivot, No.1 |
90179-06159 |
from US $0.57 |
||
|
9161140822
|
9161140822
91611-40822
Bolt(For Intake Manifold To Exhaust Manifold)
|
91611-40822 |
— | ||
| replacement | |||||
|
9161140822
|
9161140822
91611-60822 Bolt |
91611-60822 |
from US $1.16 |
||
|
9161160820
|
9161160820
91611-60820
Bolt(For Transaxle & Engine Setting)
|
91611-60820 |
— | ||
| replacement | |||||
|
9161160820
|
9161160820
91611-G0820 Bolt |
91611-G0820 |
from US $1.18 |
||
|
9165140814
|
9165140814
91651-40814 BOLT |
91651-40814 |
from US $1.20 |
||
| replacement | |||||
|
9165140814
|
9165140814
90080-11228 New Genuine Part |
90080-11228 |
US $3.20 |
||
|
9165540618
|
9165540618
91655-40618
New Genuine Part
|
91655-40618 |
— | ||
| replacement | |||||
|
9165540618
|
9165540618
91651-60616 BOLT |
91651-60616 |
from US $0.91 |
||
|
9411540500
|
9411540500
94115-40500 Nut(For Lpg Filter Stud Bolt Set) |
94115-40500 |
US $1.97 |
||
|
9451100500
|
9451100500
94511-00500 Washer, Cover Set, No.2 |
94511-00500 |
from US $0.24 |
||
