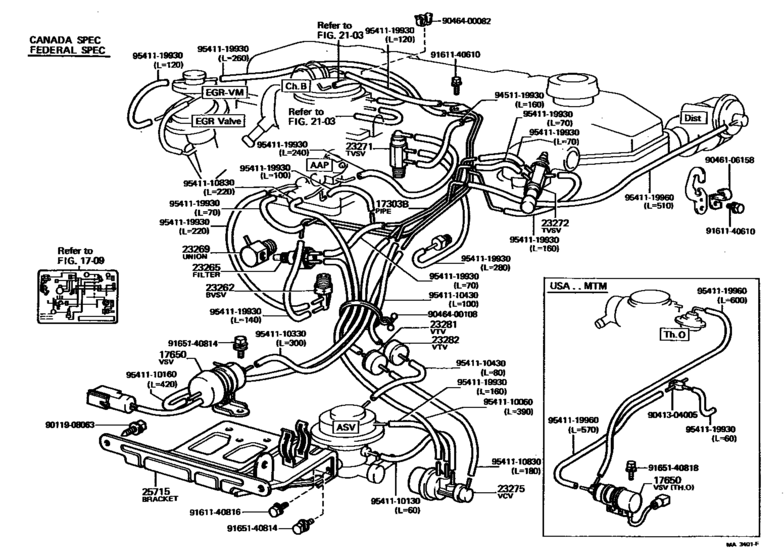

Vacuum Piping ([01.1979 - 08.1979] (7808-7908)20R..RN32,42 ; (7901-7908)20R..RN37,4 7..USA) Diagram Toyota PICKUP
- Year
- 1979 - 1980
- Sales region
- U.S.A.
- Frame
- RN47
- grade
- DLX
- ENGINE
- 20R
- TRANSMISSION
- MTM
- DESTINATION
- USA
- From
- 01.1979
- To
- 08.1980
- Gear Shift Type
- 4F
- Loading Capacity
- HLF
- Building Condition
- CBU
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
17303B
|
17303B
17303-38040
Pipe Sub-Assy, Air, No.1
[08.1978 - 08.1979] 20R..RN3#,4#..USA CALIFORNIA SPEC |
17303-38040 |
— | ||
|
17650
|
17650
89570-14090
Valve Assy, Vacuum Switching
[08.1979 - 08.1980] 20R..RN42..HVY EGR; 20R..RN3#,4#..MTM..(3QT,HLF)..USA CALIFORNIA SPEC,EGR |
89570-14090 |
— | ||
|
17650
|
17650
89570-35070
Valve Assy, Vacuum Switching
[08.1978 - 08.1979] 20R..RN3#,4#..USA CALIFORNIA SPEC |
89570-35070 |
— | ||
|
17650
|
17650
89570-35090
Valve Assy, Vacuum Switching
[08.1978 - 08.1979] 20R..RN3#,4#..MTM..USA *THO |
89570-35090 |
— | ||
|
23262
|
23262
25820-13010
Valve, Bimetal Vacuum Switching, No.1
[08.1979 - 08.1981] 20R,22R..RN37,38,47,48..USA |
25820-13010 |
— | ||
|
23269
|
23269
90404-54010 Union(For Gas Filter)[08.1978 - 08.1979] 20R..RN3#,4# |
90404-54010 |
US $8.30 |
||
|
23269
|
23269
90404-54014 Union(For Gas Filter)[08.1979 - 08.1980] 20R..RN42..HVY; 20R..RN3#,4#..MTM..(3QT,HLF)..USA CALIFORNIA SPEC |
90404-54014 |
US $15.14 |
||
|
23271
|
23271
90925-02060
Valve, Thermostatic Vacuum Switching, No.1
[08.1979 - 08.1980] 20R..RN3#,4# |
90925-02060 |
— | ||
|
23272
|
23272
90925-02049
Valve, Thermostatic Vacuum Switching, No.2
[08.1978 - 08.1979] 20R..RN3#,4#..USA CALIFORNIA SPEC |
90925-02049 |
— | ||
|
23282
|
23282
90925-01014
Valve, Vacuum Transmitting, No.1
[08.1979 - 08.1980] 20R..RN42..HVY; 20R..RN3#,4#..MTM..(3QT,HLF)..USA; 20R..RN32,42..CND |
90925-01014 |
— | ||
|
23282
|
23282
90925-01021 Valve, Vacuum Transmitting, No.1[08.1979 - 08.1980] 20R..RN32,42..3FC; 20R..RN3#,4#..(3QT,HLF)..USA CALIFORNIA SPEC |
90925-01021 |
from US $18.35 |
||
|
25715
|
25715
25715-38051
Bracket, Emission Control Valve
[08.1979 - 08.1980] 20R..RN42..HVY; 20R..RN3#,4#..MTM..(3QT,HLF)..USA CALIFORNIA SPEC |
25715-38051 |
— | ||
|
9011908063
|
9011908063
90119-08063 BOLT |
90119-08063 |
US $1.51 |
||
|
9041304005
|
9041304005
90413-04005 Way, 3, No.1 (For Front Drive Shift) |
90413-04005 |
from US $3.40 |
||
|
9046106158
|
9046106158
90461-06158
New Genuine Part
|
90461-06158 |
— | ||
|
9046400082
|
9046400082
90464-00082 Clamp(For Resistive Cord) |
90464-00082 |
US $1.79 |
||
|
9046400108
|
9046400108
90464-00108 New Genuine Part |
90464-00108 |
from US $2.43 |
||
|
9161140610
|
9161140610
91611-40610
Bolt(For Dust Cover To Steering Knuckle Arm Setting)
|
91611-40610 |
— | ||
| replacement | |||||
|
9161140610
|
9161140610
91611-B0610 Bolt (For Transfer Oil Receiver No.1) |
91611-B0610 |
from US $0.78 |
||
|
9161140816
|
9161140816
91611-40816
Screw Or Bolt(For Valve Rocker Shaft Lock)
|
91611-40816 |
— | ||
| replacement | |||||
|
9161140816
|
9161140816
91611-B0816 Bolt |
91611-B0816 |
from US $0.99 |
||
|
9165140814
|
9165140814
91651-40814 BOLT |
91651-40814 |
from US $1.20 |
||
| replacement | |||||
|
9165140814
|
9165140814
90080-11228 New Genuine Part |
90080-11228 |
US $3.20 |
||
|
9165140818
|
9165140818
91651-40818 BOLT, W-WASHER |
91651-40818 |
from US $1.16 |
||
|
9451119930
|
9451119930
94511-19930
New Genuine Part
|
94511-19930 |
— | ||
|
9541110060
|
9541110060
95411-10060 Hose, Vacuum |
95411-10060 |
US $12.23 |
||
| replacement | |||||
|
9541110060
|
9541110060
90999-92003
Hose, Breather (For Transfer Case)
|
90999-92003 |
— | ||
|
9541110130
|
9541110130
95411-10130
Pipe Or Hose
|
95411-10130 |
— | ||
| replacement | |||||
|
9541110130
|
9541110130
90999-92002
Air Hose (300 mm)
|
90999-92002 |
— | ||
|
9541110160
|
9541110160
95411-10160
Hose, Cruise Control Vacuum
|
95411-10160 |
— | ||
| replacement | |||||
|
9541110160
|
9541110160
90999-92003
Hose, Breather (For Transfer Case)
|
90999-92003 |
— | ||
|
9541110330
|
9541110330
95411-10330 Hose, Vacuum, No.1 (For Front Drive Shift) |
95411-10330 |
US $6.70 |
||
| replacement | |||||
|
9541110330
|
9541110330
90999-92002
Air Hose (300 mm)
|
90999-92002 |
— | ||
|
9541110430
|
9541110430
95411-10430 Hose (For Idle Up Device) |
95411-10430 |
US $6.84 |
||
| replacement | |||||
|
9541110430
|
9541110430
90999-92002
Air Hose (300 mm)
|
90999-92002 |
— | ||
|
9541110830
|
9541110830
95411-10830 Hose, Cruise Control Vacuum |
95411-10830 |
US $6.70 |
||
| replacement | |||||
|
9541110830
|
9541110830
90999-92002
Air Hose (300 mm)
|
90999-92002 |
— | ||
|
9541119930
|
9541119930
95411-19930
Hose(For Carburetor To Manifold)
|
95411-19930 |
— | ||
| replacement | |||||
|
9541119930
|
9541119930
90999-92002
Air Hose (300 mm)
|
90999-92002 |
— | ||
|
9541119960
|
9541119960
95411-19960
Hose, Vacuum, No.2 (For Front Drive Shift)
|
95411-19960 |
— | ||
| replacement | |||||
|
9541119960
|
9541119960
90999-92003
Hose, Breather (For Transfer Case)
|
90999-92003 |
— | ||
