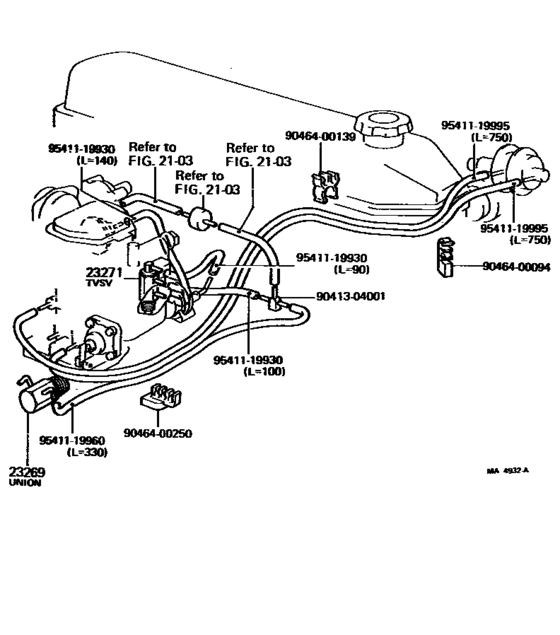

Vacuum Piping ([08.1980 - 08.1981] (8008-8108)22R..RN38,48..CND) Diagram Toyota PICKUP
- Year
- 1980 - 1983
- Sales region
- U.S.A.
- Frame
- RN48
- grade
- DLX
- ENGINE
- 22R
- TRANSMISSION
- MTM
- DESTINATION
- CND
- From
- 08.1980
- To
- 07.1983
- Gear Shift Type
- 4F
- Loading Capacity
- HLF
- Building Condition
- CBU
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
23269
|
23269
90404-54021 Union(For Gas Filter)[08.1980 - 07.1983] 22R..RN38,48..CND |
90404-54021 |
US $13.54 |
||
|
23271
|
23271
90925-02068
Valve, Thermostatic Vacuum Switching, No.1
[08.1980 - 08.1981] 22R..RN3#,4# |
90925-02068 |
— | ||
|
23271
|
23271
90925-02069
Valve, Thermostatic Vacuum Switching, No.1
[08.1981 - 08.1982] 22R..RN3#,4# |
90925-02069 |
— | ||
|
9041304001
|
9041304001
90413-04001 Way, 3(For Transfer Breather Hose) |
90413-04001 |
US $5.56 |
||
|
9046400094
|
9046400094
90464-00094
New Genuine Part
|
90464-00094 |
— | ||
|
9046400139
|
9046400139
90464-00139 Clamp (For Idle Up Divice), No.1 |
90464-00139 |
US $3.32 |
||
|
9046400250
|
9046400250
90464-00250 New Genuine Part |
90464-00250 |
US $4.51 |
||
|
9541119930
|
9541119930
95411-19930
Hose(For Carburetor To Manifold)
|
95411-19930 |
— | ||
| replacement | |||||
|
9541119930
|
9541119930
90999-92002
Air Hose (300 mm)
|
90999-92002 |
— | ||
|
9541119960
|
9541119960
95411-19960
Hose, Vacuum, No.2 (For Front Drive Shift)
|
95411-19960 |
— | ||
| replacement | |||||
|
9541119960
|
9541119960
90999-92003
Hose, Breather (For Transfer Case)
|
90999-92003 |
— | ||
|
9541119995
|
9541119995
95411-19995
Hose, Vaccum
|
95411-19995 |
— | ||
| replacement | |||||
|
9541119995
|
9541119995
90999-92004 Hose, Vacuum, No.1 (For Front Drive Shift) |
90999-92004 |
from US $8.76 |
||
