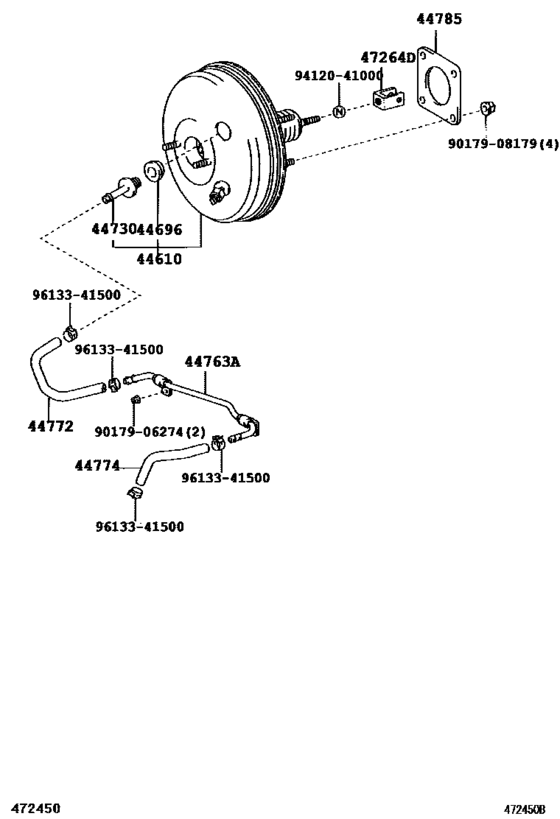

Brake Booster & Vacuum Tube ([05.2001 - ] (0105- )CLM20..RHD) Diagram Toyota PICNIC/ AVENSIS/ VERSO
- Year
- 2001 - 2005
- Sales region
- Europe
- Frame
- CLM20
- ENGINE
- 1CDFTV
- TRANSMISSION
- MTM
- DESTINATION
- EUR
- Model
- PICNIC/AVENIS/VERSO
- From
- 05.2001
- To
- 07.2005
- Seating Capacity
- 07S
- Vehicle Model
- PICNIC/AVENIS/VERSO
- Driver's Position
- RHD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
44610
|
44610
44610-44180 Booster Assy, BrakeBRAKE [05.2001 - 10.2003] CLM20..RHD |
44610-44180 |
US $662.48 |
||
|
44610
|
44610
44610-44181 Booster Assy, BrakeBRAKE [10.2003 - 07.2005] CLM20..RHD W(VSC) |
44610-44181 |
US $663.94 |
||
|
44610
|
44610
44610-44240 Booster Assy, BrakeBRAKE [10.2003 - 07.2005] CLM20..RHD |
44610-44240 |
US $710.53 |
||
| replacement | |||||
|
44610
|
44610
44610-44241
Booster Assy, Brake
[10.2003 - 07.2005] CLM20..RHD |
44610-44241 |
— | ||
|
44696
|
44696
90480-24439 Grommet, Check Valve[05.2001 - 10.2003] ACM20,CLM20 |
90480-24439 |
from US $2.57 |
||
|
44730
|
44730
44730-22150 Valve Assy, Vacuum Check(For Brake)[05.2001 - 10.2003] ACM20,CLM20..RHD |
44730-22150 |
from US $21.84 |
||
|
44763A
|
44763A
44763-44030 Tube, Hose To Hose, No.1HOSE TO HOSE, NO.1 [05.2001 - 10.2003] CLM20..RHD |
44763-44030 |
US $26.06 |
||
|
44772
|
44772
44772-44030 Hose, Check Valve To Connector TubeCHECK VALVE TO CONNECTOR TUBE [05.2001 - 10.2003] CLM20..RHD |
44772-44030 |
US $22.42 |
||
|
44774
|
44774
44774-44030 Hose, Union To Connector TubeUNION TO CONNECTOR TUBE [05.2001 - 10.2003] CLM20..RHD |
44774-44030 |
US $16.60 |
||
|
44785
|
44785
44785-32010 Gasket, Brake Booster[05.2001 - 10.2003] ACM20,CLM20 |
44785-32010 |
US $3.94 |
||
|
47264D
|
47264D
47264-60020 Clevis, Master Cylinder Push Rod[05.2001 - 10.2003] ACM20,CLM20 |
47264-60020 |
US $3.58 |
||
|
9017906274
|
9017906274
90179-06274 Nut |
90179-06274 |
from US $0.70 |
||
|
9017908179
|
9017908179
90179-08179 New Genuine Part |
90179-08179 |
US $3.58 |
||
|
9412041000
|
9412041000
94120-41000 Nut(For Clutch Pedal Stopper) |
94120-41000 |
from US $0.76 |
||
| replacement | |||||
|
9412041000
|
9412041000
90170-A0002 Nut |
90170-A0002 |
US $2.33 |
||
|
9613341500
|
9613341500
96133-41500 Clamp Or Clip(For Air Hose, No.5) |
96133-41500 |
from US $2.32 |
||
