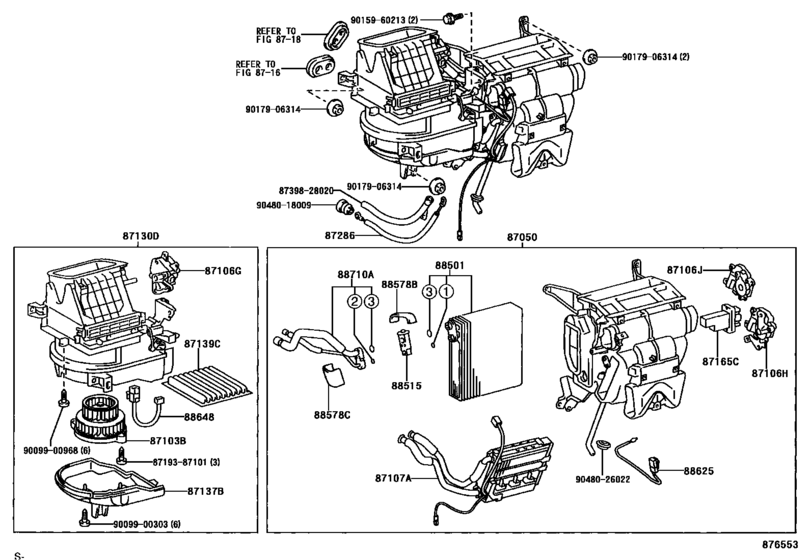

Heating & Air Conditioning - Cooler Unit ([10.2003 - ] FRONT (0310- )CLM20..RHD) Diagram Toyota PICNIC/ AVENSIS/ VERSO
- Year
- 2001 - 2005
- Sales region
- Europe
- Frame
- CLM20
- ENGINE
- 1CDFTV
- TRANSMISSION
- MTM
- DESTINATION
- EUR
- Model
- PICNIC/AVENIS/VERSO
- From
- 05.2001
- To
- 07.2005
- Seating Capacity
- 07S
- Vehicle Model
- PICNIC/AVENIS/VERSO
- Driver's Position
- RHD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
87050
|
87050
87050-44270 Radiator Assy, Air ConditionerAIR CONDITIONER [05.2001 - 10.2003] CLM20..RHD W(MANUAL AIR CONDITIONER) |
87050-44270 |
US $1,543.36 |
||
|
87050
|
87050
87050-44290 Radiator Assy, Air ConditionerAIR CONDITIONER [05.2001 - 10.2003] CLM20..RHD |
87050-44290 |
US $761.49 |
||
|
87050
|
87050
87050-44420 Radiator Assy, Air ConditionerAIR CONDITIONER [10.2003 - 07.2005] CLM20..RHD |
87050-44420 |
US $1,674.40 |
||
|
87103B
|
87103B
87103-44040 Motor Sub-Assy, Blower W/fan[05.2001 - 10.2003] CLM20..RHD |
87103-44040 |
US $246.59 |
||
|
87106G
|
87106G
87106-44050
Servo Sub-Assy, Damper(For Blower)
[05.2001 - 10.2003] CLM20..RHD |
87106-44050 |
— | ||
|
87106H
|
87106H
87106-44030 Servo Sub-Assy, Damper(For Airmix)[05.2001 - 10.2003] ACM20,CLM20..RHD |
87106-44030 |
from US $139.78 |
||
|
87106J
|
87106J
87106-44020
Servo Sub-Assy, Damper(For Mode)
[05.2001 - 10.2003] ACM20,CLM20..RHD |
87106-44020 |
— | ||
|
87107A
|
87107A
87107-44100
Unit Sub-Assy, Heater Radiator
[05.2001 - 02.2002] ACM20,CLM20..RHD |
87107-44100 |
— | ||
|
87130D
|
87130D
87130-44070
Blower Assy
[05.2001 - 10.2003] CLM20..RHD W(MANUAL AIR CONDITIONER) |
87130-44070 |
— | ||
|
87130D
|
87130D
87130-44120
Blower Assy
[05.2001 - 10.2003] CLM20..RHD |
87130-44120 |
— | ||
|
87137B
|
87137B
87137-44010
Cover, Heater Blower
[05.2001 - 10.2003] CLM20..RHD |
87137-44010 |
— | ||
|
87139C
|
87139C
87139-47010 Filter, Clean Air[05.2001 - 10.2003] ACM20,CLM20 |
87139-47010 |
from US $22.71 |
||
| replacement | |||||
|
87139C
|
87139C
87139-28010 Filter, Clean Air[05.2001 - 10.2003] ACM20,CLM20 |
87139-28010 |
from US $26.79 |
||
|
87165C
|
87165C
87165-32010 Resistor, Blower[10.2003 - 07.2005] CLM20; ACM20..LHD W(REAR HEATER) |
87165-32010 |
US $160 |
||
|
87286
|
87286
87286-44040
Cable, Control
[05.2001 - 10.2003] ACM20,CLM20..RHD..EUR |
87286-44040 |
— | ||
|
88501
|
88501
88501-28310
Evaporator Sub-Assy, Cooler, No.1
[05.2001 - 10.2003] ACM20,CLM20..RHD |
88501-28310 |
— | ||
|
88515
|
88515
88515-28160 Valve, Cooler Expansion[08.2001 - 10.2003] ACM20,CLM20 MAKER OPTION,MARK Z |
88515-28160 |
from US $67.28 |
||
|
88515
|
88515
88515-44020 Valve, Cooler Expansion[05.2001 - 08.2001] ACM20,CLM20 MARK A |
88515-44020 |
US $141.23 |
||
| replacement | |||||
|
88515
|
88515
88515-28160 Valve, Cooler Expansion[05.2001 - 08.2001] ACM20,CLM20 MARK A |
88515-28160 |
from US $67.28 |
||
|
88578B
|
88578B
88578-12520
Packing, Cooling Unit, No.1
[10.2003 -] ACM2#,CLM20 |
88578-12520 |
— | ||
|
88578C
|
88578C
88578-44090
Packing, Cooling Unit, No.2
[10.2003 -] ACM20..LHD;ACM21,CLM20 |
88578-44090 |
— | ||
|
88625
|
88625
88625-52020
Thermistor, Cooler, No.1
[05.2001 - 10.2003] ACM20,CLM20 MAKER OPTION |
88625-52020 |
— | ||
|
88625
|
88625
88625-60140 Thermistor, Cooler, No.1[05.2001 - 10.2003] ACM20,CLM20..EUR DEALER OPTION |
88625-60140 |
US $10.51 |
||
|
88648
|
88648
88648-28280
Wiring, Cooler, No.1
[05.2001 - 10.2003] CLM20..RHD |
88648-28280 |
— | ||
|
88710A
|
88710A
88710-44450 Tube Assy, Air Conditioner[05.2001 - 10.2003] ACM20,CLM20..RHD |
88710-44450 |
US $131.04 |
||
|
8719387101
|
8719387101
87193-87101
SCREW TAPPING
|
87193-87101 |
— | ||
|
8739828020
|
8739828020
87398-28020
Band Assy (for Combustion Heater)
|
87398-28020 |
— | ||
|
9009900303
|
9009900303
90099-00303
New Genuine Part
|
90099-00303 |
— | ||
|
9009900968
|
9009900968
90099-00968 Screw(For Air Conditioner Unit) |
90099-00968 |
US $0.82 |
||
|
9015960213
|
9015960213
90159-60213 New Genuine Part |
90159-60213 |
US $1.43 |
||
|
9017906314
|
9017906314
90179-06314 NUT |
90179-06314 |
from US $0.80 |
||
|
9048018009
|
9048018009
90480-18009 Grommet(For Heater Control Cable) |
90480-18009 |
US $2.34 |
||
|
9048026022
|
9048026022
90480-26022 Grommet (For Cooler Unit) |
90480-26022 |
US $2.45 |
||
