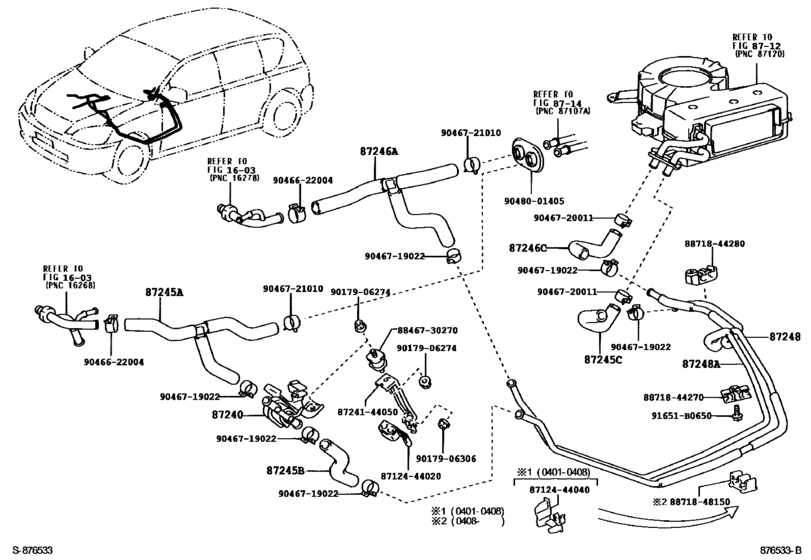

Heating & Air Conditioning - Water Piping ([10.2003 - ] W(REAR HEATER) (0310- )CLM20..RHD) Diagram Toyota PICNIC/ AVENSIS/ VERSO
- Year
- 2001 - 2005
- Sales region
- Europe
- Frame
- CLM20
- ENGINE
- 1CDFTV
- TRANSMISSION
- MTM
- DESTINATION
- EUR
- Model
- PICNIC/AVENIS/VERSO
- From
- 05.2001
- To
- 07.2005
- Seating Capacity
- 07S
- Vehicle Model
- PICNIC/AVENIS/VERSO
- Driver's Position
- RHD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
87240
|
87240
87240-44030 Valve Assy, Heater Water[05.2001 - 10.2003] ACM20,CLM20..RHD..EUR |
87240-44030 |
US $36.25 |
||
|
87245A
|
87245A
87209-44070 Hose, Heater Water, Inlet AHEATER WATER, INLET A [05.2001 - 10.2003] CLM20..RHD W(REAR HEATER) |
87209-44070 |
US $34.80 |
||
|
87245B
|
87245B
87245-44550 Hose, Heater Water, Inlet B[05.2001 - 10.2003] ACM20,CLM20..RHD..EUR |
87245-44550 |
US $13.26 |
||
|
87245C
|
87245C
87245-44530
Hose, Heater Water ,inlet C
[05.2001 - 10.2003] ACM20,CLM20..EUR |
87245-44530 |
— | ||
|
87246A
|
87246A
87209-44030 Hose, Heater Water, Outlet AHEATER WATER, OUTLET A [05.2001 - 10.2003] CLM20..RHD W(REAR HEATER) |
87209-44030 |
US $33.63 |
||
|
87246C
|
87246C
87245-44540 Hose, Heater Water, Outlet C[05.2001 - 10.2003] ACM20,CLM20..EUR |
87245-44540 |
US $10.05 |
||
|
87248
|
87248
87248-44020
Pipe Sub-Assy, Water
[05.2001 - 10.2003] ACM20,CLM20..RHD..EUR |
87248-44020 |
— | ||
|
87248A
|
87248A
87248-44030
Pipe, Heater Water Inlet, A
[05.2001 - 10.2003] ACM20,CLM20..RHD..EUR |
87248-44030 |
— | ||
|
87248A
|
87248A
87248-44190
Pipe, Heater Water Inlet, A
[08.2004 - 07.2005] ACM20,CLM20..RHD..EUR |
87248-44190 |
— | ||
|
91651B0650
|
91651B0650
91651-B0650 New Genuine Part |
91651-B0650 |
US $1.38 |
||
|
8712444020
|
8712444020
87124-44020
Clamp, Heater
|
87124-44020 |
— | ||
|
8712444040
|
8712444040
87124-44040
Clamp, Heater
|
87124-44040 |
— | ||
|
8724144050
|
8724144050
87241-44050
Controller, Water Valve
|
87241-44050 |
— | ||
|
8846730270
|
8846730270
88467-30270 Cushion, Cooler Condenser, No.1 |
88467-30270 |
from US $1.75 |
||
|
8871844270
|
8871844270
88718-44270
Pipe, Cooler Refrigerant Suction, No.2
|
88718-44270 |
— | ||
|
8871844280
|
8871844280
88718-44280
Pipe, Cooler Refrigerant Suction, No.2
|
88718-44280 |
— | ||
|
8871848150
|
8871848150
88718-48150
Pipe, Cooler Refrigerant Suction, No.2
|
88718-48150 |
— | ||
|
9017906274
|
9017906274
90179-06274 Nut |
90179-06274 |
from US $0.70 |
||
|
9017906306
|
9017906306
90179-06306 NUT |
90179-06306 |
US $2.15 |
||
|
9046622004
|
9046622004
90466-22004 Clamp Or Clip, Hose(For Water By-Pass Hose) |
90466-22004 |
US $6.45 |
||
|
9046719022
|
9046719022
90467-19022 Clip(For Ventilation Hose No.2) |
90467-19022 |
from US $2.20 |
||
|
9046720011
|
9046720011
90467-20011 Clamp Or Clip(For Water By-Pass Hose No.2) |
90467-20011 |
from US $2.36 |
||
|
9046721010
|
9046721010
90467-21010 Clip(For Ventilation Hose No.2) |
90467-21010 |
from US $2.54 |
||
|
9048001405
|
9048001405
90480-01405 Grommet, Heater Hose |
90480-01405 |
US $3.84 |
