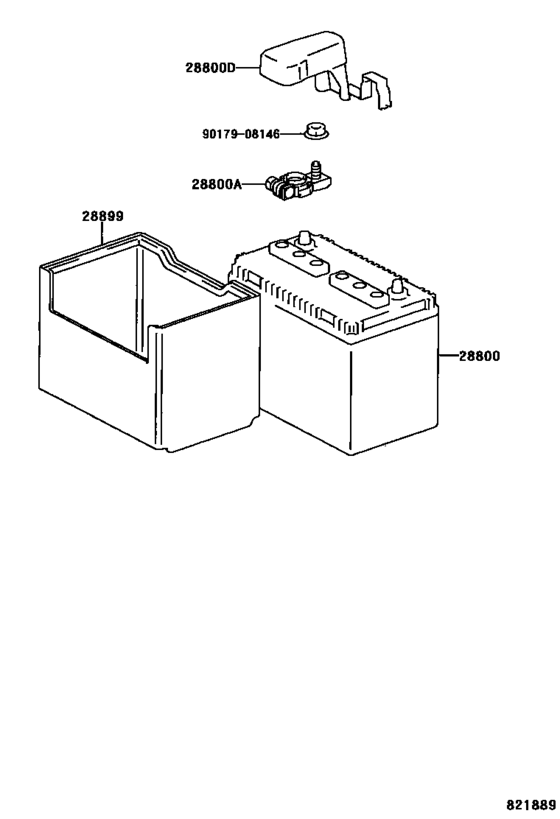

Battery & Battery Cable ([08.1999 - ] (9908- )) Diagram Toyota PICNIC/ AVENSIS/ VERSO
- Year
- 1999 - 2001
- Sales region
- General
- Frame
- SXM10
- ENGINE
- 3SFE
- Model
- PICNIC
- From
- 08.1999
- To
- 05.2001
- Vehicle Model
- PICNIC
- Driver's Position
- RHD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
28800
|
28800
28800-16090
Battery
[08.1999 - 03.2001] 3SFE..SXM10 46B24L,YUASA |
28800-16090 |
— | ||
| replacement | |||||
|
28800
|
28800
28800-16091
Battery
[08.1999 - 03.2001] 3SFE..SXM10 46B24L,YUASA |
28800-16091 |
— | ||
|
28800
|
28800
28800-16100
Battery
[08.1999 - 03.2001] 3SFE..SXM10 46B24L,SHINKOBE |
28800-16100 |
— | ||
|
28800
|
28800
28800-16110
Battery
[08.1999 - 03.2001] 3SFE..SXM10 46B24L,MATSUSHITA |
28800-16110 |
— | ||
| replacement | |||||
|
28800
|
28800
28800-16111
Battery
[08.1999 - 03.2001] 3SFE..SXM10 46B24L,MATSUSHITA |
28800-16111 |
— | ||
|
28800
|
28800
28800-16111
Battery
[03.2001 - 05.2001] 3SFE..SXM10 46B24L,MATSUSHITA |
28800-16111 |
— | ||
|
28800
|
28800
28800-16120
Battery
[08.1999 - 03.2001] 3SFE..SXM10 46B24L,FURUKAWA |
28800-16120 |
— | ||
| replacement | |||||
|
28800
|
28800
28800-22040
Battery
[08.1999 - 03.2001] 3SFE..SXM10 46B24L,FURUKAWA |
28800-22040 |
— | ||
|
28800
|
28800
28800-16121
Battery
[03.2001 - 05.2001] 3SFE..SXM10 46B24L,FURUKAWA |
28800-16121 |
— | ||
| replacement | |||||
|
28800
|
28800
28800-22040
Battery
[03.2001 - 05.2001] 3SFE..SXM10 46B24L,FURUKAWA |
28800-22040 |
— | ||
|
28800A
|
28800A
90982-05034 Terminal, Battery Positive[08.1999 -] 3SFE..SXM10 |
90982-05034 |
from US $16.46 |
||
|
28800D
|
28800D
82821-20350 Cover, Connector(For Battery Terminal)[08.1999 -] 3SFE..SXM10 |
82821-20350 |
from US $9.48 |
||
|
28899
|
28899
28899-46020 Insulator Assy, Battery[08.1999 -] 3SFE..SXM10 |
28899-46020 |
US $32.59 |
||
|
9017908146
|
9017908146
90179-08146
Nut
|
90179-08146 |
— | ||
| replacement | |||||
|
9017908146
|
9017908146
90179-08204 Nut |
90179-08204 |
from US $1.07 |
||
