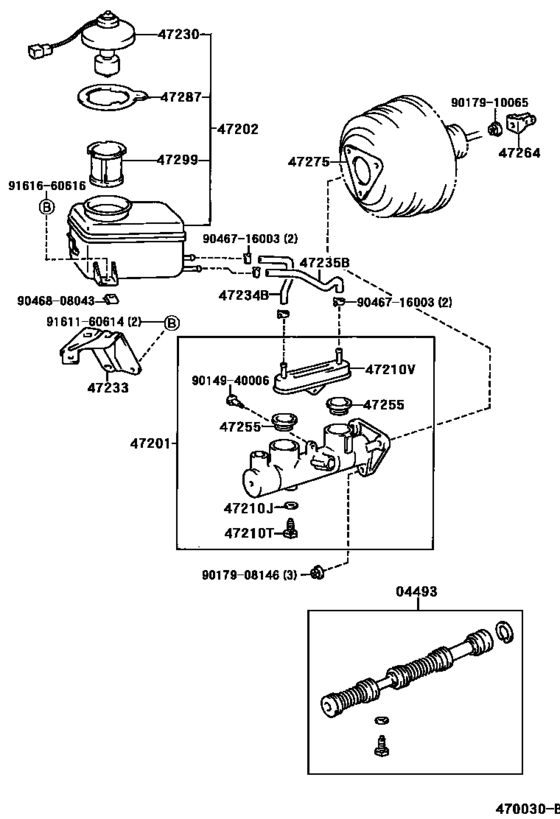

Brake Master Cylinder ([08.1999 - ] (9908- )) Diagram Toyota PICNIC/ AVENSIS/ VERSO
- Year
- 1999 - 2001
- Sales region
- General
- Frame
- SXM10
- ENGINE
- 3SFE
- Model
- PICNIC
- From
- 08.1999
- To
- 05.2001
- Vehicle Model
- PICNIC
- Driver's Position
- RHD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
04493
|
04493
04493-44010 Cylinder Kit, Brake Master[08.1999 -] SXM10 |
04493-44010 |
US $66.74 |
||
|
47201
|
47201
47201-44021
Cylinder Sub-Assy, Brake Master
[08.1999 -] SXM10 |
47201-44021 |
— | ||
|
47202
|
47202
47220-44020 Reservoir Sub-Assy, Brake Master Cylinder[08.1999 -] SXM10 |
47220-44020 |
US $131.04 |
||
|
47210J
|
47210J
90430-06104 Gasket(For Brake Actuator)[08.1999 -] SXM10 |
90430-06104 |
from US $1.79 |
||
|
47210T
|
47210T
90109-06077 Bolt(For Brake Master Cylinder)[08.1999 -] SXM10 |
90109-06077 |
from US $2.87 |
||
|
47210V
|
47210V
90029-40011 Union(For Brake Master Cylinder)[08.1999 -] SXM10 |
90029-40011 |
US $6.84 |
||
|
47230
|
47230
84460-30040 Cap Assy, Brake Master Cylinder Reservoir Filler[08.1999 -] SXM10 |
84460-30040 |
from US $83.33 |
||
|
47233
|
47233
47233-44010 Bracket, Reservoir[08.1999 -] SXM10 |
47233-44010 |
US $11.36 |
||
|
47234B
|
47234B
47234-44010 Tube, Reservoir, No.1[08.1999 -] SXM10 |
47234-44010 |
US $7.57 |
||
|
47235B
|
47235B
47235-44010 Tube, Brake Master Cyrinder Reservoir, No.2[08.1999 -] SXM10 |
47235-44010 |
US $7.57 |
||
|
47255
|
47255
47255-16010 Grommet, Master Cylinder Reservoir[08.1999 -] SXM10 |
47255-16010 |
from US $6.45 |
||
|
47264
|
47264
47264-28010 Clevis, Master Cylinder Push Rod[08.1999 -] SXM10 |
47264-28010 |
US $7.16 |
||
|
47275
|
47275
47275-32010 Gasket, Brake Master Cylinder[08.1999 -] SXM10 |
47275-32010 |
from US $3.96 |
||
|
47287
|
47287
47287-20020 Label, Brake Fluid Information[08.1999 -] SXM10 |
47287-20020 |
from US $3.32 |
||
|
47299
|
47299
47299-32010 Strainer, Brake Master Cylinder Reservoir[08.1999 -] SXM10 |
47299-32010 |
US $4.89 |
||
|
9014940006
|
9014940006
90149-40006 Bolt |
90149-40006 |
US $1.61 |
||
|
9017908146
|
9017908146
90179-08146
Nut
|
90179-08146 |
— | ||
| replacement | |||||
|
9017908146
|
9017908146
90179-08204 Nut |
90179-08204 |
from US $1.07 |
||
|
9017910065
|
9017910065
90179-10065 Nut, Master Cylinder Push Rod Clevis Lock |
90179-10065 |
from US $1.61 |
||
|
9046716003
|
9046716003
90467-16003
Clip Or Clamp(For Ventilation Hose)
|
90467-16003 |
— | ||
| replacement | |||||
|
9046716003
|
9046716003
96133-41500 Clamp Or Clip(For Air Hose, No.5) |
96133-41500 |
from US $2.32 |
||
|
9046808043
|
9046808043
90468-08043 New Genuine Part |
90468-08043 |
US $2.62 |
||
|
9161160614
|
9161160614
91611-60614
Screw Or Bolt(For Valve Rocker Shaft Lock)
|
91611-60614 |
— | ||
| replacement | |||||
|
9161160614
|
9161160614
91611-B0614 Bolt (For Rear Differential Breather Plug Oil Deflector) |
91611-B0614 |
from US $0.80 |
||
|
9161660616
|
9161660616
91616-60616 BOLT |
91616-60616 |
US $1.61 |
||
