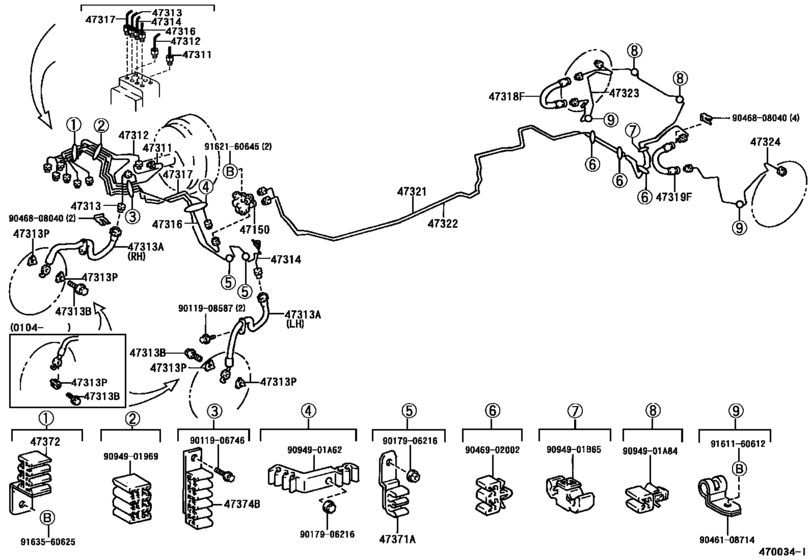

Brake Tube & Clamp ([08.1999 - ] (9908- )) Diagram Toyota PICNIC/ AVENSIS/ VERSO
- Year
- 1999 - 2001
- Sales region
- General
- Frame
- SXM10
- ENGINE
- 3SFE
- Model
- PICNIC
- From
- 08.1999
- To
- 05.2001
- Vehicle Model
- PICNIC
- Driver's Position
- RHD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
47150
|
47150
47150-44020 Valve Assy, Proportioning[08.1999 -] SXM10 |
47150-44020 |
US $190.44 |
||
|
47311
|
47311
47311-44010 Tube, Front Brake, No.1[08.1999 -] SXM10 |
47311-44010 |
US $14.71 |
||
|
47312
|
47312
47312-44010 Tube, Front Brake, No.2[08.1999 -] SXM10 |
47312-44010 |
US $10.05 |
||
|
47313
|
47313
47313-44010 Tube, Front Brake, No.3[08.1999 -] SXM10 |
47313-44010 |
US $14.71 |
||
|
47313A
|
47313A
90947-02887 Hose, Flexible, No.1(For Front)[08.1999 - 05.2001] SXM10 RH |
90947-02887 |
US $41.16 |
||
|
47313A
|
47313A
90947-02888 Hose, Flexible, No.1(For Front)[08.1999 - 05.2001] SXM10 LH |
90947-02888 |
from US $41.16 |
||
|
47313B
|
47313B
90401-10015 Bolt, Union(For Clutch Mas Cylinder To Flexible Hose Tube)[08.1999 - 04.2001] SXM10 |
90401-10015 |
from US $3.58 |
||
|
47313B
|
47313B
90401-10058 Bolt, Union(For Front Flexible Hose)[04.2001 - 05.2001] SXM10 |
90401-10058 |
from US $3.94 |
||
|
47313P
|
47313P
47389-30010 Gasket(For Clutch Master Cylinder To Flexible Hose Tube)[08.1999 - 04.2001] SXM10 |
47389-30010 |
from US $1.19 |
||
|
47313P
|
47313P
47389-50020 Gasket(For Front Flexible Hose)[04.2001 - 05.2001] SXM10 |
47389-50020 |
from US $4.91 |
||
|
47314
|
47314
47314-44010 Tube, Front Brake, No.4[08.1999 -] SXM10 |
47314-44010 |
US $31.89 |
||
|
47316
|
47316
47316-44010 Tube, Front Brake, No.6[08.1999 -] SXM10 |
47316-44010 |
US $17.76 |
||
|
47317
|
47317
47317-44010 Tube, Front Brake, No.7[08.1999 -] SXM10 |
47317-44010 |
US $19.80 |
||
|
47318F
|
47318F
90947-02874 Hose, Flexible(For Rear Rh)[08.1999 - 04.2000] SXM10 |
90947-02874 |
US $25.03 |
||
|
47318F
|
47318F
90947-02C39 Hose, Flexible(For Rear Rh)[04.2000 -] SXM10 |
90947-02C39 |
US $19.31 |
||
|
47319F
|
47319F
90947-02874 Hose, Flexible(For Rear Rh)[08.1999 - 04.2000] SXM10 |
90947-02874 |
US $25.03 |
||
|
47319F
|
47319F
90947-02C39 Hose, Flexible(For Rear Rh)[04.2000 -] SXM10 |
90947-02C39 |
US $19.31 |
||
|
47321
|
47321
47321-44030 Tube, Rear Brake, No.1[08.1999 -] SXM10 |
47321-44030 |
US $64.06 |
||
|
47322
|
47322
47322-44030 Tube, Rear Brake, No.2[08.1999 -] SXM10 |
47322-44030 |
US $50.96 |
||
|
47323
|
47323
47323-44010 Tube, Rear Brake, No.3[08.1999 -] SXM10 |
47323-44010 |
US $12.67 |
||
|
47324
|
47324
47324-44010 Tube, Rear Brake, No.4[08.1999 -] SXM10 |
47324-44010 |
US $12.67 |
||
|
47371A
|
47371A
47371-16030 Clamp, Brake Tube, No.1[08.1999 -] SXM10 |
47371-16030 |
US $7.28 |
||
|
47372
|
47372
47371-44040 Clamp, Brake Tube, No.2[08.1999 -] SXM10 |
47371-44040 |
US $9.17 |
||
|
47374B
|
47374B
47371-44030 Clamp, Brake Tube, No.4[08.1999 -] SXM10 |
47371-44030 |
US $6.84 |
||
|
9094901A62
|
9094901A62
90949-01A62 New Genuine Part |
90949-01A62 |
US $9.32 |
||
|
9094901A84
|
9094901A84
90949-01A84 Clamp, Height Control Tube, No.3 |
90949-01A84 |
US $5.56 |
||
|
9094901B65
|
9094901B65
90949-01B65 Clamp, Front Drive Vacuum Tube, No.2 |
90949-01B65 |
US $2.04 |
||
|
9011906746
|
9011906746
90119-06746 New Genuine Part |
90119-06746 |
US $1.60 |
||
| replacement | |||||
|
9011906746
|
9011906746
91631-J0612 BRACKET |
91631-J0612 |
from US $0.72 |
||
|
9011908587
|
9011908587
90119-08587
New Genuine Part
|
90119-08587 |
— | ||
| replacement | |||||
|
9011908587
|
9011908587
90129-08007 New Genuine Part |
90129-08007 |
US $1.61 |
||
|
9017906216
|
9017906216
90179-06216
Direct
|
90179-06216 |
— | ||
| replacement | |||||
|
9017906216
|
9017906216
90179-06274 Nut |
90179-06274 |
from US $0.70 |
||
|
9046108714
|
9046108714
90461-08714 New Genuine Part |
90461-08714 |
US $3.79 |
||
|
9046808040
|
9046808040
90468-08040 CLIP |
90468-08040 |
from US $1.40 |
||
|
9046902002
|
9046902002
90469-02002 Clamp, Brake Tube, No.2 |
90469-02002 |
US $2.04 |
||
|
9094901969
|
9094901969
90949-01969 Clamp, Brake Tube, No.6 |
90949-01969 |
US $6.29 |
||
| replacement | |||||
|
9094901969
|
9094901969
90080-46365
Clamp, Brake Tube, No.5
|
90080-46365 |
— | ||
|
9161160612
|
9161160612
91611-60612
Bolt(For Dust Cover To Steering Knuckle Arm Setting)
|
91611-60612 |
— | ||
| replacement | |||||
|
9161160612
|
9161160612
91611-G0612 Bolt(For Dust Cover To Steering Knuckle Arm Setting) |
91611-G0612 |
from US $0.78 |
||
|
9162160645
|
9162160645
91621-60645 New Genuine Part |
91621-60645 |
US $2.18 |
||
|
9163560625
|
9163560625
91635-60625
Screw(For Steering Column Tube)
|
91635-60625 |
— | ||
| replacement | |||||
|
9163560625
|
9163560625
91631-60622 Screw |
91631-60622 |
US $1.25 |
||
