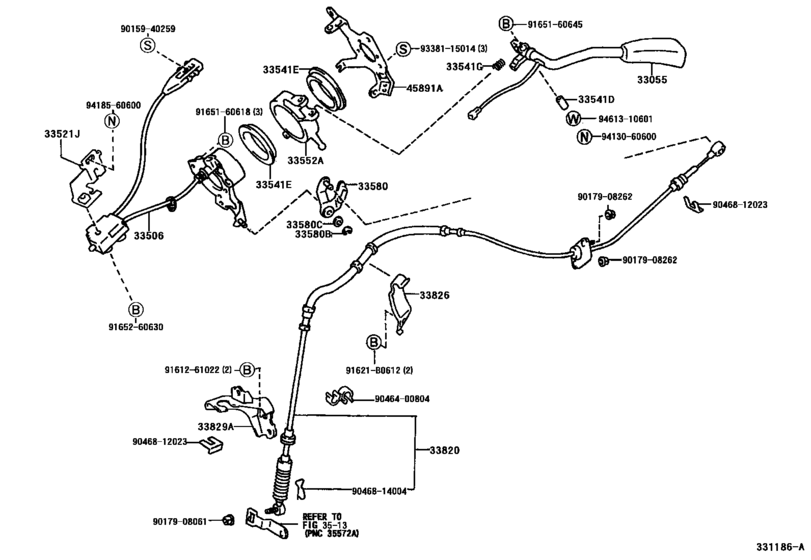

Control Shaft & Crossshaft ([08.1999 - ] (9908- )) Diagram Toyota PICNIC/ AVENSIS/ VERSO
- Year
- 1999 - 2001
- Sales region
- General
- Frame
- SXM10
- ENGINE
- 3SFE
- Model
- PICNIC
- From
- 08.1999
- To
- 05.2001
- Vehicle Model
- PICNIC
- Driver's Position
- RHD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
33055
|
33055
33055-44030 Lever Sub-Assy, Column Shift[08.1999 -] SXM10 |
33055-44030 |
US $65.08 |
||
|
33506
|
33506
33506-44040 Retainer Sub-Assy, Control Shift Lever (For Column Shift)[08.1999 -] SXM10 |
33506-44040 |
US $77.17 |
||
|
33521J
|
33521J
33521-44010 Housing, Shift Lever (For Column Shift)[08.1999 -] SXM10 |
33521-44010 |
US $5.10 |
||
|
33541D
|
33541D
90387-06062 Collar (For Column Shift Lever)[08.1999 -] SXM10 |
90387-06062 |
US $2.18 |
||
|
33541E
|
33541E
90387-49001 Bush (For Column Shift Lever)[08.1999 -] SXM10 |
90387-49001 |
US $4.22 |
||
|
33541G
|
33541G
90501-16150 Spring, Compression (For Column Shift Lever)[08.1999 -] SXM10 |
90501-16150 |
US $3.93 |
||
|
33552A
|
33552A
33552-44011 Arm, Shift Lever[08.1999 -] SXM10 |
33552-44011 |
US $34.07 |
||
|
33580
|
33580
33580-44010 Bellcrank Assy, Shifting (For Column Shift)[08.1999 -] SXM10 |
33580-44010 |
US $23.88 |
||
|
33580B
|
33580B
96160-01000 Ring, E(For Clutch Booster Air Valve)[08.1999 -] SXM10 |
96160-01000 |
US $0.42 |
||
|
33580C
|
33580C
90560-11028 Washer, Plate (For Shifting Bell Crank)[08.1999 -] SXM10 |
90560-11028 |
US $1.60 |
||
|
33820
|
33820
33820-44070 Cable Assy, Transmission Control (For Column Shift)[08.1999 -] SXM10 |
33820-44070 |
US $200.93 |
||
| replacement | |||||
|
33820
|
33820
33820-44071
Cable Assy, Transmission Control (For Column Shift)
[08.1999 -] SXM10 |
33820-44071 |
— | ||
|
33826
|
33826
33826-44030 Bracket, Transmission Control Cable, No.2[08.1999 -] SXM10 |
33826-44030 |
US $6.41 |
||
|
33829A
|
33829A
33829-44030 Support, Transmission Control Cable[08.1999 -] SXM10 |
33829-44030 |
US $20.53 |
||
|
45891A
|
45891A
45891-44020 Bracket, Turn Signal[08.1999 -] SXM10 |
45891-44020 |
US $10.19 |
||
|
91621B0612
|
91621B0612
91621-B0612
New Genuine Part
|
91621-B0612 |
— | ||
| replacement | |||||
|
91621B0612
|
91621B0612
91621-J0612 BOLT W-WASHER |
91621-J0612 |
from US $0.66 |
||
|
9015940259
|
9015940259
90159-40259 New Genuine Part |
90159-40259 |
US $1.46 |
||
|
9017908061
|
9017908061
90179-08061 Nut (For Connecting Rod Swivel) |
90179-08061 |
from US $0.76 |
||
|
9017908262
|
9017908262
90179-08262 New Genuine Part |
90179-08262 |
US $1.02 |
||
|
9046400804
|
9046400804
90464-00804 Clamp(For Vacuum Hose) |
90464-00804 |
US $4.22 |
||
|
9046812023
|
9046812023
90468-12023 CLIP |
90468-12023 |
from US $1.97 |
||
|
9046814004
|
9046814004
90468-14004 Union, Auxiliary Fuel Band |
90468-14004 |
from US $0.66 |
||
|
9161261022
|
9161261022
91612-61022 Bolt (For Transmission Control Cable Bracket) |
91612-61022 |
US $2.33 |
||
|
9165160618
|
9165160618
91651-60618 Bolt(For Oil Receiver Pipe) |
91651-60618 |
from US $1.19 |
||
|
9165160645
|
9165160645
91651-60645 BOLT |
91651-60645 |
US $1.79 |
||
|
9165260630
|
9165260630
91652-60630 New Genuine Part |
91652-60630 |
US $1.60 |
||
|
9338115014
|
9338115014
93381-15014 New Genuine Part |
93381-15014 |
US $1.16 |
||
|
9413060600
|
9413060600
94130-60600 Nut, Wire Adjusting, No.1 |
94130-60600 |
from US $0.78 |
||
|
9418560600
|
9418560600
94185-60600 Nut, Wire Adjusting, No.1 |
94185-60600 |
from US $0.72 |
||
|
9461310601
|
9461310601
94613-10601 Washer (For Primary Regulator Valve) |
94613-10601 |
US $1.25 |
||
