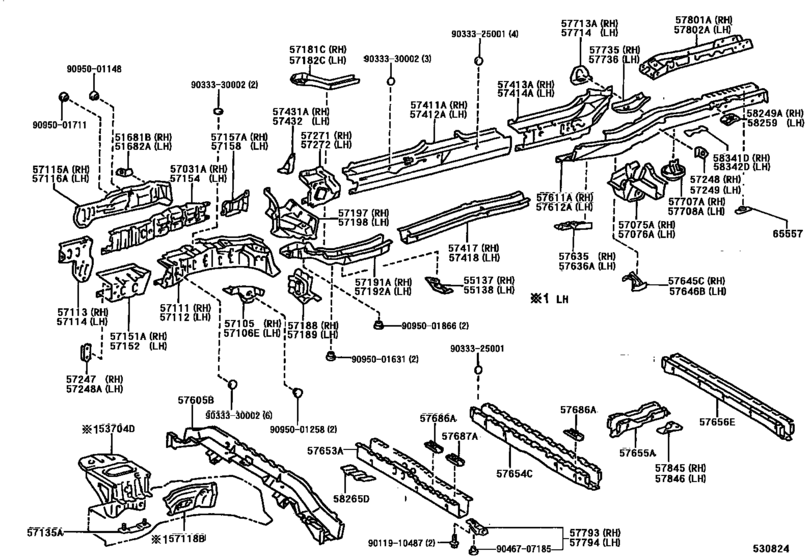

Floor Side Member ([08.1999 - ] (9908- )) Diagram Toyota PICNIC/ AVENSIS/ VERSO
- Year
- 1999 - 2001
- Sales region
- General
- Frame
- SXM10
- ENGINE
- 3SFE
- Model
- PICNIC
- From
- 08.1999
- To
- 05.2001
- Vehicle Model
- PICNIC
- Driver's Position
- RHD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
51681B
|
51681B
51681-20060 Plate, Front Brake Flexible Hose Support, Rh[08.1999 -] SXM10 |
51681-20060 |
US $11.21 |
||
|
51682A
|
51682A
51682-20060 Plate, Front Brake Flexible Hose Support, Lh[08.1999 -] SXM10 |
51682-20060 |
US $11.21 |
||
|
53704D
|
53704D
53704-44011 Support Sub-Assy, Battery, Lh[08.1999 -] SXM10 |
53704-44011 |
US $90.27 |
||
|
55137
|
55137
55137-44010 Brace, Dash To Frame, Rh[08.1999 -] SXM10 |
55137-44010 |
US $25.92 |
||
|
55138
|
55138
55138-44010 Brace, Dash To Frame, Lh[08.1999 -] SXM10 |
55138-44010 |
US $25.92 |
||
|
57031A
|
57031A
57031-44010 Reinforce Sub-Assy, Front Side Member, No.2 Rh[08.1999 -] SXM10 |
57031-44010 |
US $144.14 |
||
|
57075A
|
57075A
57075-44011 Bracket Sub-Assy, Rear Suspension Arm, Rh[08.1999 -] SXM10 |
57075-44011 |
US $85.90 |
||
|
57076A
|
57076A
57076-44011 Bracket Sub-Assy, Rear Suspension Arm, Lh[08.1999 -] SXM10 |
57076-44011 |
US $90.27 |
||
|
57105
|
57105
57105-20090 Bracket Sub-Assy, Front Suspension Member Mounting, Front Rh[08.1999 -] SXM10 |
57105-20090 |
US $36.40 |
||
|
57106E
|
57106E
57106-20080 Bracket Sub-Assy, Front Suspension Member Mounting, Front Lh[08.1999 -] SXM10 |
57106-20080 |
US $36.25 |
||
|
57111
|
57111
57111-44010 Member, Front Side, Rh[08.1999 -] SXM10 |
57111-44010 |
US $203.84 |
||
|
57112
|
57112
57112-44010 Member, Front Side, Lh[08.1999 -] SXM10 |
57112-44010 |
US $203.84 |
||
|
57113
|
57113
57113-44010 Extension, Front Side Member, Rh[08.1999 -] SXM10 |
57113-44010 |
US $53.58 |
||
|
57114
|
57114
57114-44010 Extension, Front Side Member, Lh[08.1999 -] SXM10 |
57114-44010 |
US $53.58 |
||
|
57115A
|
57115A
57115-20180 Plate, Front Side Member, Outer Rh[08.1999 -] SXM10 |
57115-20180 |
US $81.54 |
||
|
57116A
|
57116A
57116-20200 Plate, Front Side Member, Outer Lh[08.1999 -] SXM10 |
57116-20200 |
US $81.54 |
||
|
57118B
|
57118B
57118-44010 Plate, Front Side Member, No.2 Lh[08.1999 -] SXM10 |
57118-44010 |
US $20.82 |
||
|
57135A
|
57135A
57135-44011 Bracket, Front Floor Side, Rh[08.1999 -] SXM10 |
57135-44011 |
US $9.03 |
||
|
57151A
|
57151A
57151-44011 Reinforcement, Front Side Member, No.1 Rh[08.1999 -] SXM10 |
57151-44011 |
US $44.84 |
||
|
57152
|
57152
57152-44011 Reinforcement, Front Side Member, No.1 Lh[08.1999 -] SXM10 |
57152-44011 |
US $44.84 |
||
|
57154
|
57154
57154-44011 Reinforcement, Front Side Member, No.2 Lh[08.1999 -] SXM10 |
57154-44011 |
US $126.67 |
||
|
57157A
|
57157A
57157-20080 Reinforcement, Front Side Member, No.4 Rh[08.1999 -] SXM10 |
57157-20080 |
US $13.69 |
||
|
57158
|
57158
57158-20080 Reinforcement, Front Side Member, No.4 Lh[08.1999 -] SXM10 |
57158-20080 |
US $13.40 |
||
|
57181C
|
57181C
57181-44020 Reinforcement, Front Side Member, Rear No.1 Rh[08.1999 -] SXM10 |
57181-44020 |
US $117.94 |
||
|
57182C
|
57182C
57182-44020 Reinforcement, Front Side Member, Rear No.1 Lh[08.1999 -] SXM10 |
57182-44020 |
US $117.94 |
||
|
57188
|
57188
57188-44010 Reinforcement, Front Side Member Extention, Rh[08.1999 -] SXM10 |
57188-44010 |
US $18.20 |
||
|
57189
|
57189
57189-44010 Reinforcement, Front Side Member Extention, Lh[08.1999 -] SXM10 |
57189-44010 |
US $18.20 |
||
|
57191A
|
57191A
57191-44901 Member, Front Side, Inner Rear Rh[08.1999 -] SXM10 |
57191-44901 |
US $273.73 |
||
|
57192A
|
57192A
57192-44902 Member, Front Side, Inner Rear Lh[08.1999 -] SXM10 |
57192-44902 |
US $273.73 |
||
|
57197
|
57197
57197-44010 Box, Torque, Front Rh[08.1999 -] SXM10 |
57197-44010 |
US $90.27 |
||
|
57198
|
57198
57198-44010 Box, Torque, Front Lh[08.1999 -] SXM10 |
57198-44010 |
US $90.27 |
||
|
57247
|
57247
57247-44010 Retainer, Front Bumper Support Spacer, No.1[08.1999 -] SXM10 |
57247-44010 |
US $5.97 |
||
|
57248
|
57248
57248-44010 Bracket, Flexible Hose, No.2[08.1999 -] SXM10 |
57248-44010 |
US $11.79 |
||
|
57248A
|
57248A
57247-44010 Retainer, Front Bumper Support Spacer, No.1[08.1999 -] SXM10 |
57247-44010 |
US $5.97 |
||
|
57249
|
57249
57249-44010 Bracket, Flexible Hose, No.1[08.1999 -] SXM10 |
57249-44010 |
US $11.79 |
||
|
57271
|
57271
57271-44010 Extension, Steering Gear Box Support Member, Rh[08.1999 -] SXM10 |
57271-44010 |
US $43.53 |
||
|
57272
|
57272
57272-44010 Extension, Steering Gear Box Suport Member, Lh[08.1999 -] SXM10 |
57272-44010 |
US $43.53 |
||
|
57411A
|
57411A
57411-44010 Member, Floor Side, Inner Rh[08.1999 -] SXM10 |
57411-44010 |
US $200.93 |
||
|
57412A
|
57412A
57412-44010 Member, Floor Side, Inner Lh[08.1999 -] SXM10 |
57412-44010 |
US $200.93 |
||
|
57413A
|
57413A
57413-44010
Member, Floor Side, Inner Rear Rh
[08.1999 -] SXM10 |
57413-44010 |
— | ||
|
57414A
|
57414A
57414-44010
Member, Floor Side, Inner Rear Lh
[08.1999 -] SXM10 |
57414-44010 |
— | ||
|
57417
|
57417
57417-44010 Reinforcement, Front Floor Under, Rh[08.1999 -] SXM10 |
57417-44010 |
US $138.32 |
||
|
57418
|
57418
57506-44010 Reinforcement, Front Floor Under, Lh[08.1999 -] SXM10 |
57506-44010 |
US $144.14 |
||
|
57431A
|
57431A
57431-44010 Patch, Step Panel Under, Rh[08.1999 -] SXM10 |
57431-44010 |
US $9.90 |
||
|
57432
|
57432
57432-44010 Patch, Step Panel Under, Lh[08.1999 -] SXM10 |
57432-44010 |
US $9.90 |
||
|
57605B
|
57605B
57605-44010 Member Sub-Assy, Rear Floor Cross, No.1[08.1999 -] SXM10 |
57605-44010 |
US $179.09 |
||
| replacement | |||||
|
57605B
|
57605B
57605-44040 Member Sub-Assy, Rear Floor Cross, No.1[08.1999 -] SXM10 |
57605-44040 |
US $179.09 |
||
|
57611A
|
57611A
57611-44010 Member, Rear Floor Side, Rh[08.1999 -] SXM10 |
57611-44010 |
US $273.73 |
||
|
57612A
|
57612A
57612-44010 Member, Rear Floor Side, Lh[08.1999 -] SXM10 |
57612-44010 |
US $273.73 |
||
|
57635
|
57635
57635-44011 Reinforcement, Rear Floor Side Member[08.1999 -] SXM10 |
57635-44011 |
US $28.54 |
||
|
57636A
|
57636A
57636-44011 Reinforcement, Rear Floor Side Member, Rear Lh[08.1999 -] SXM10 |
57636-44011 |
US $28.54 |
||
|
57645C
|
57645C
57645-44010 Reinforcement, Rear Floor Side Member, Rear No.3 Rh[08.1999 -] SXM10 |
57645-44010 |
US $18.93 |
||
|
57646B
|
57646B
57646-44010 Reinforcement, Rear Floor Side Member, Rear No.3 Lh[08.1999 -] SXM10 |
57646-44010 |
US $18.93 |
||
|
57653A
|
57653A
57653-44010 Member, Rear Floor Cross, No.2[08.1999 -] SXM10 |
57653-44010 |
US $145.60 |
||
|
57653A
|
57653A
57653-44020 Member, Rear Floor Cross, No.2[08.1999 -] SXM10 W(CLEARANCE SONAR & BACK SONAR) |
57653-44020 |
US $145.60 |
||
|
57654C
|
57654C
57654-44010 Member, Rear Floor Cross, No.3[08.1999 -] SXM10 |
57654-44010 |
US $145.60 |
||
|
57655A
|
57655A
57655-44010 Member, Rear Floor Cross, No.4[08.1999 -] SXM10 |
57655-44010 |
US $32.32 |
||
|
57656E
|
57656E
57609-44010 Member, Rear Floor Cross, No.5[08.1999 -] SXM10 |
57609-44010 |
US $104.83 |
||
|
57686A
|
57686A
57686-30040 Bracket, Fuel Tank Mounting, Rear Rh[08.1999 -] SXM10 |
57686-30040 |
US $3.20 |
||
|
57687A
|
57687A
57686-30040 Bracket, Fuel Tank Mounting, Rear Rh[08.1999 -] SXM10 |
57686-30040 |
US $3.20 |
||
|
57707A
|
57707A
57707-44010 Plate Sub-Assy, Rear Spring, Rh[08.1999 -] SXM10 |
57707-44010 |
US $28.54 |
||
|
57708A
|
57708A
57708-44010 Plate Sub-Assy, Rear Spring, Lh[08.1999 -] SXM10 |
57708-44010 |
US $28.54 |
||
|
57713A
|
57713A
57713-44010 Stopper, Rear Spring Bumper, No.1 Rh[08.1999 -] SXM10 |
57713-44010 |
US $26.94 |
||
|
57714
|
57714
57714-44010 Stopper, Rear Spring Bumper, No.1 Lh[08.1999 -] SXM10 |
57714-44010 |
US $26.94 |
||
|
57735
|
57735
57735-44010 Reinforcement, Rear Torque Box, Rh[08.1999 -] SXM10 |
57735-44010 |
US $33.05 |
||
|
57736
|
57736
57736-44010 Reinforcement, Rear Torque Box, Lh[08.1999 -] SXM10 |
57736-44010 |
US $33.05 |
||
|
57793
|
57793
57793-44010 Bracket, Rear Suspension Arm, Rear Rh No.1[08.1999 -] SXM10 |
57793-44010 |
US $18.20 |
||
|
57794
|
57794
57794-44010 Bracket, Rear Suspension Arm, Rear Lh No.1[08.1999 -] SXM10 |
57794-44010 |
US $18.20 |
||
|
57801A
|
57801A
57801-44010 Reinforcement Sub-Assy, Rear Floor Side Member, Rh[08.1999 -] SXM10 |
57801-44010 |
US $144.14 |
||
|
57802A
|
57802A
57802-44010 Reinforcement Sub-Assy, Rear Floor Side Member, Lh[08.1999 -] SXM10 |
57802-44010 |
US $160.16 |
||
|
57845
|
57845
57845-44020 Reinforcement, Rear No.2 Seat Leg, Rear Rh[08.1999 -] SXM10 |
57845-44020 |
US $18.20 |
||
|
57846
|
57846
57846-44010 Reinforcement, Rear No.2 Seat Leg, Rear Lh[08.1999 -] SXM10 |
57846-44010 |
US $18.20 |
||
|
58249A
|
58249A
58249-44010 Reinforcement, Rear Seat Mounting[08.1999 -] SXM10 |
58249-44010 |
US $11.21 |
||
|
58259
|
58259
58259-44010 Reinforcement, Rear Seat Mounting, No.2[08.1999 -] SXM10 |
58259-44010 |
US $11.21 |
||
|
58265D
|
58265D
58266-44020 Bracket, Parking Brake Cable Guide, No.2[08.1999 -] SXM10 |
58266-44020 |
US $64.36 |
||
|
58341D
|
58341D
58341-44010 Bracket, Rear Absorber Mounting, No.1 Rh[08.1999 -] SXM10 |
58341-44010 |
US $16.60 |
||
|
58342D
|
58342D
58342-44010 Bracket, Rear Absorber Mounting, No.1 Lh[08.1999 -] SXM10 |
58342-44010 |
US $16.60 |
||
|
65557
|
65557
65557-44010 Retainer, Rope Hook[08.1999 -] SXM10 |
65557-44010 |
US $9.61 |
||
|
9011910487
|
9011910487
90119-10487 New Genuine Part |
90119-10487 |
US $2.61 |
||
|
9033325001
|
9033325001
90333-25001 Plug, Hole(For Hood) |
90333-25001 |
from US $1.29 |
||
|
9033330002
|
9033330002
90333-30002 Cover, Front Floor Hole |
90333-30002 |
from US $1.07 |
||
|
9046707185
|
9046707185
90467-07185 New Genuine Part |
90467-07185 |
US $1.46 |
||
|
9095001148
|
9095001148
90950-01148 New Genuine Part |
90950-01148 |
US $1.60 |
||
|
9095001258
|
9095001258
90950-01258
Plug, Hole(For Rear Suspension Arm)
|
90950-01258 |
— | ||
| replacement | |||||
|
9095001258
|
9095001258
90950-01478 Plug, Hole(For Front Suspension Lower Arm) |
90950-01478 |
US $3.40 |
||
|
9095001631
|
9095001631
90950-01631 Plug Hole |
90950-01631 |
US $2.15 |
||
|
9095001711
|
9095001711
90950-01711 New Genuine Part |
90950-01711 |
US $1.79 |
||
|
9095001866
|
9095001866
90950-01866 Plug, Hole(For Front Door Panel) |
90950-01866 |
from US $2.15 |
||
