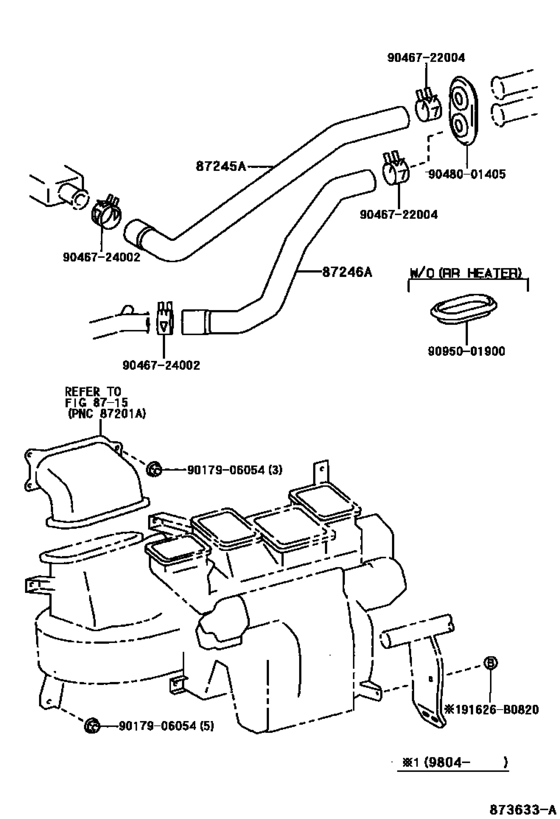

Heating & Air Conditioning - Water Piping ([08.1999 - ] (9908- )) Diagram Toyota PICNIC/ AVENSIS/ VERSO
- Year
- 1999 - 2001
- Sales region
- General
- Frame
- SXM10
- ENGINE
- 3SFE
- Model
- PICNIC
- From
- 08.1999
- To
- 05.2001
- Vehicle Model
- PICNIC
- Driver's Position
- RHD
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
87245A
|
87245A
87245-44010 Hose, Heater Water, Inlet A[08.1999 -] SXM10 |
87245-44010 |
US $22.28 |
||
|
87246A
|
87246A
87245-44020
Hose, Heater Water, Outlet A
[08.1999 -] SXM10 |
87245-44020 |
— | ||
|
91626B0820
|
91626B0820
91626-B0820
New Genuine Part
|
91626-B0820 |
— | ||
| replacement | |||||
|
91626B0820
|
91626B0820
91621-B0816 BOLT WWASHER |
91621-B0816 |
from US $0.84 |
||
|
9017906054
|
9017906054
90179-06054 NUT |
90179-06054 |
US $1.89 |
||
| replacement | |||||
|
9017906054
|
9017906054
90179-06314 NUT |
90179-06314 |
from US $0.80 |
||
|
9046722004
|
9046722004
90467-22004
Clip(For Ventilation Hose No.2)
|
90467-22004 |
— | ||
| replacement | |||||
|
9046722004
|
9046722004
90467-21010 Clip(For Ventilation Hose No.2) |
90467-21010 |
from US $2.54 |
||
|
9046724002
|
9046724002
90467-24002 Clip(For Water By-Pass Hose No.2) |
90467-24002 |
US $4.30 |
||
|
9048001405
|
9048001405
90480-01405 Grommet, Heater Hose |
90480-01405 |
US $3.84 |
||
|
9095001900
|
9095001900
90950-01900 New Genuine Part |
90950-01900 |
US $2.15 |
||
