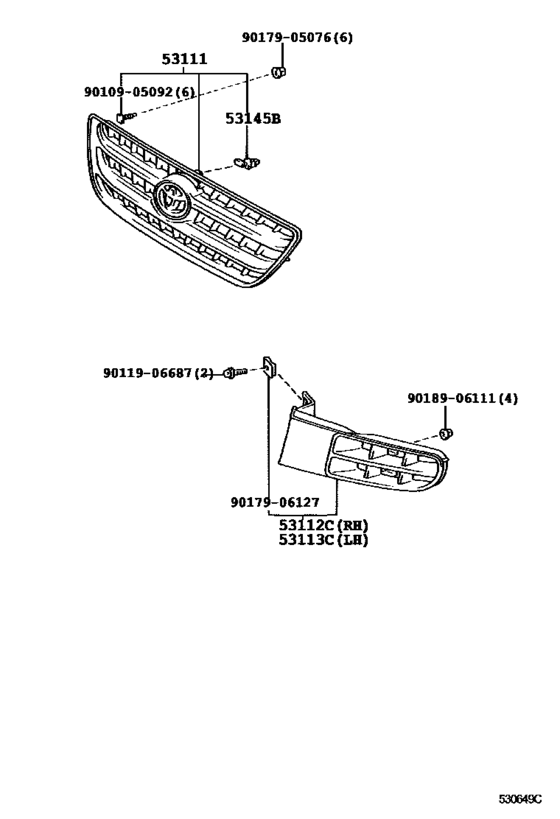

Radiator Grille ([08.1999 - ] (9908- )) Diagram Toyota PICNIC/ AVENSIS/ VERSO
- Year
- 1999 - 2001
- Sales region
- General
- Frame
- SXM10
- ENGINE
- 3SFE
- Model
- PICNIC
- From
- 08.1999
- To
- 05.2001
- Vehicle Model
- PICNIC
- Driver's Position
- RHD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
53111
|
53111
53101-44010-A1 Grille, Radiator[08.1999 -] SXM10 WHITE PEARL M,057 |
53101-44010-A1 |
US $275.18 |
||
|
53111
|
53111
53101-44050-A0 Grille, Radiator[08.1999 -] SXM10 WHITE PM.,057 |
53101-44050-A0 |
US $289.74 |
||
| replacement | |||||
|
53111
|
53111
53101-44050-B0 Grille, Radiator[08.1999 -] SXM10 WHITE PM.,057 |
53101-44050-B0 |
US $185.07 |
||
|
53111
|
53111
53101-44050-B0 Grille, Radiator[08.1999 -] SXM10 SILVER ME,199 |
53101-44050-B0 |
US $185.07 |
||
|
53111
|
53111
53101-44050-D0 Grille, Radiator[08.1999 -] SXM10 WINE RED MC,3J8 |
53101-44050-D0 |
US $289.74 |
||
|
53111
|
53111
53101-44050-H0 Grille, Radiator[08.1999 -] SXM10 DK.TURQUOISE MC.,760 |
53101-44050-H0 |
US $289.74 |
||
|
53111
|
53111
53101-44050-H1 Grille, Radiator[04.2000 -] SXM10 TURQUOISE ME.,765 |
53101-44050-H1 |
US $289.74 |
||
|
53111
|
53111
53101-44050-J0
Grille, Radiator
[08.1999 -] SXM10 DK.BLUE MM.GR.,8K5 |
53101-44050-J0 |
— | ||
| replacement | |||||
|
53111
|
53111
53101-44050-B0 Grille, Radiator[08.1999 -] SXM10 DK.BLUE MM.GR.,8K5 |
53101-44050-B0 |
US $185.07 |
||
|
53111
|
53111
53101-44050-J1 Grille, Radiator[08.1999 - 04.2000] SXM10 BLUE ME.AMC.,8N2 |
53101-44050-J1 |
from US $185.07 |
||
|
53112C
|
53112C
53112-44010-A0 Grille, Radiator, Lower Rh[08.1999 - 04.2000] SXM10 SILVER ME,TRIM1#&199 ,8K5 ,8N2 |
53112-44010-A0 |
US $61.59 |
||
|
53112C
|
53112C
53112-44010-A4 Grille, Radiator, Lower Rh[04.2000 -] SXM10 SILVER ME,199 ,765 ,8K5 |
53112-44010-A4 |
US $61.59 |
||
| replacement | |||||
|
53112C
|
53112C
53112-44010-A0 Grille, Radiator, Lower Rh[04.2000 -] SXM10 SILVER ME,199 ,765 ,8K5 |
53112-44010-A0 |
US $61.59 |
||
|
53112C
|
53112C
53112-44010-G0 Grille, Radiator, Lower Rh[08.1999 - 04.2000] SXM10 YELLOW SILVER,TRIM12&057 ,3J8 ,760 |
53112-44010-G0 |
US $61.59 |
||
| replacement | |||||
|
53112C
|
53112C
53112-44010-G2 Grille, Radiator, Lower Rh[08.1999 - 04.2000] SXM10 YELLOW SILVER,TRIM12&057 ,3J8 ,760 |
53112-44010-G2 |
US $38.73 |
||
|
53112C
|
53112C
53112-44010-G2 Grille, Radiator, Lower Rh[04.2000 -] SXM10 YELLOW SILVER,057 ,3J8 ,760 |
53112-44010-G2 |
US $38.73 |
||
|
53112C
|
53112C
53112-44050-A0 Grille, Radiator, Lower Rh[08.1999 -] SXM10 WHITE RM.,057 |
53112-44050-A0 |
US $61.44 |
||
|
53113C
|
53113C
53113-44010-A0 Grille, Radiator, Lower Lh[08.1999 - 04.2000] SXM10 SILVER ME,TRIM1#&199 ,8K5 ,8N2 |
53113-44010-A0 |
from US $39.90 |
||
|
53113C
|
53113C
53113-44010-A4 Grille, Radiator, Lower Lh[04.2000 -] SXM10 SILVER ME,199 ,765 ,8K5 |
53113-44010-A4 |
US $61.59 |
||
| replacement | |||||
|
53113C
|
53113C
53113-44010-A0 Grille, Radiator, Lower Lh[04.2000 -] SXM10 SILVER ME,199 ,765 ,8K5 |
53113-44010-A0 |
from US $39.90 |
||
|
53113C
|
53113C
53113-44010-G0 Grille, Radiator, Lower Lh[08.1999 - 04.2000] SXM10 YELLOW SILVER,TRIM12&057 ,3J8 ,760 |
53113-44010-G0 |
US $61.59 |
||
| replacement | |||||
|
53113C
|
53113C
53113-44010-G2 Grille, Radiator, Lower Lh[08.1999 - 04.2000] SXM10 YELLOW SILVER,TRIM12&057 ,3J8 ,760 |
53113-44010-G2 |
US $38.73 |
||
|
53113C
|
53113C
53113-44010-G2 Grille, Radiator, Lower Lh[04.2000 -] SXM10 YELLOW SILVER,057 ,3J8 ,760 |
53113-44010-G2 |
US $38.73 |
||
|
53113C
|
53113C
53113-44050-A0 Grille, Radiator, Lower Lh[08.1999 -] SXM10 WHITE RM.,057 |
53113-44050-A0 |
from US $39.96 |
||
|
53145B
|
53145B
53145-44010 Clip, Radiator Grille Garnish[08.1999 -] SXM10 |
53145-44010 |
US $3.35 |
||
|
9010905092
|
9010905092
90109-05092 BOLT |
90109-05092 |
from US $0.66 |
||
|
9011906687
|
9011906687
90119-06687 BOLT WWASHER |
90119-06687 |
US $2.15 |
||
|
9017905076
|
9017905076
90179-05076
NUT
|
90179-05076 |
— | ||
| replacement | |||||
|
9017905076
|
9017905076
90179-05030 NUT |
90179-05030 |
US $2.15 |
||
|
9017906127
|
9017906127
90179-06127 Bracket, Front Licence Plate Mounting |
90179-06127 |
from US $0.70 |
||
|
9018906111
|
9018906111
90189-06111 CLIP |
90189-06111 |
from US $1.17 |
||
