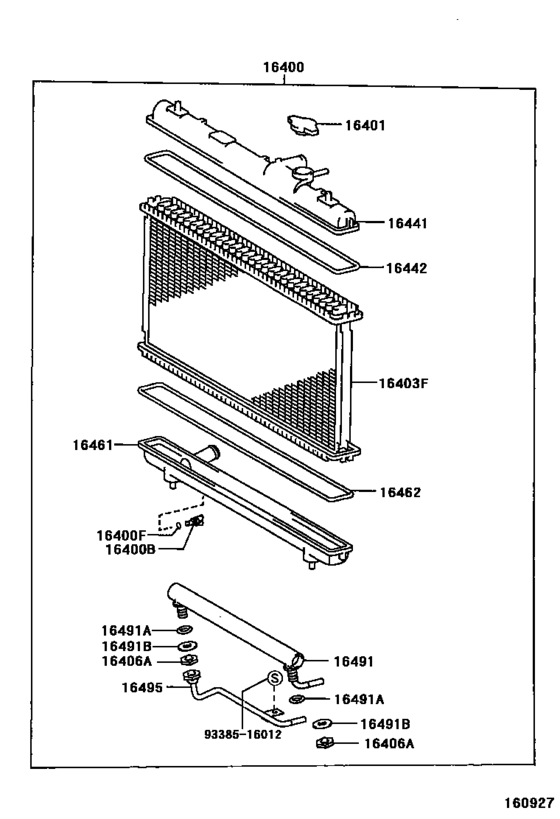

Radiator & Water Outlet ([08.1999 - ] (9908- )) Diagram Toyota PICNIC/ AVENSIS/ VERSO
- Year
- 1999 - 2001
- Sales region
- General
- Frame
- SXM10
- ENGINE
- 3SFE
- Model
- PICNIC
- From
- 08.1999
- To
- 05.2001
- Vehicle Model
- PICNIC
- Driver's Position
- RHD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
16400
|
16400
16400-7A282
Radiator Assy
[08.1999 -] 3SFE..SXM10 |
16400-7A282 |
— | ||
|
16400B
|
16400B
23322-54010 Plug,air(For Oil Cooler Drain Cock)[08.1999 -] 3SFE..SXM10 |
23322-54010 |
from US $4.86 |
||
|
16400F
|
16400F
16492-21050 Ring, O(For Oil Cooler Drain Cock)[08.1999 -] 3SFE..SXM10 |
16492-21050 |
from US $2.16 |
||
|
16401
|
16401
16401-62100
Cap Sub-Assy, Radiator
[08.1999 -] 3SFE..SXM10 |
16401-62100 |
— | ||
| replacements | |||||
|
16401
|
16401
16401-31520
Radiator Cap Sub-Assy (108kPa)
[08.1999 -] 3SFE..SXM10 |
16401-31520 |
— | ||
|
16401
|
16401
16401-36020 Cap Sub-Assy, Radiator[08.1999 -] 3SFE..SXM10 |
16401-36020 |
from US $16.31 |
||
|
16403F
|
16403F
16403-7A260 Core Sub-Assy, Radiator[08.1999 -] 3SFE..SXM10 |
16403-7A260 |
US $391.66 |
||
|
16406A
|
16406A
16406-62060
Support(For Oil Cooler)
[08.1999 -] 3SFE..SXM10 |
16406-62060 |
— | ||
|
16441
|
16441
16441-7A260 Tank, Radiator, Upper[08.1999 -] 3SFE..SXM10 |
16441-7A260 |
US $40.77 |
||
|
16442
|
16442
16442-74520 Ring, O(For Radiator Upper Tank)[08.1999 -] 3SFE..SXM10 |
16442-74520 |
from US $13.10 |
||
|
16461
|
16461
16461-7A281 Tank, Radiator, Lower[08.1999 -] 3SFE..SXM10 |
16461-7A281 |
US $44.84 |
||
|
16462
|
16462
16462-74520
Ring, O(For Radiator Lower Tank)
[08.1999 -] 3SFE..SXM10 |
16462-74520 |
— | ||
|
16491
|
16491
16491-74790 Cooler, Oil(For Atm)[08.1999 -] 3SFE..SXM10 |
16491-74790 |
US $85.90 |
||
|
16491A
|
16491A
16492-62060 Ring, O(For Atm Oil Cooler)[08.1999 -] 3SFE..SXM10 |
16492-62060 |
US $8.01 |
||
|
16491B
|
16491B
16493-62060 Washer, Plate(For Atm Oil Cooler)[08.1999 -] 3SFE..SXM10 |
16493-62060 |
US $2.18 |
||
|
16495
|
16495
16495-7A260 Nut, Flare(For Atm Oil Cooler)[08.1999 -] 3SFE..SXM10 |
16495-7A260 |
US $19.51 |
||
|
9338516012
|
9338516012
93385-16012 New Genuine Part |
93385-16012 |
US $0.96 |
||
