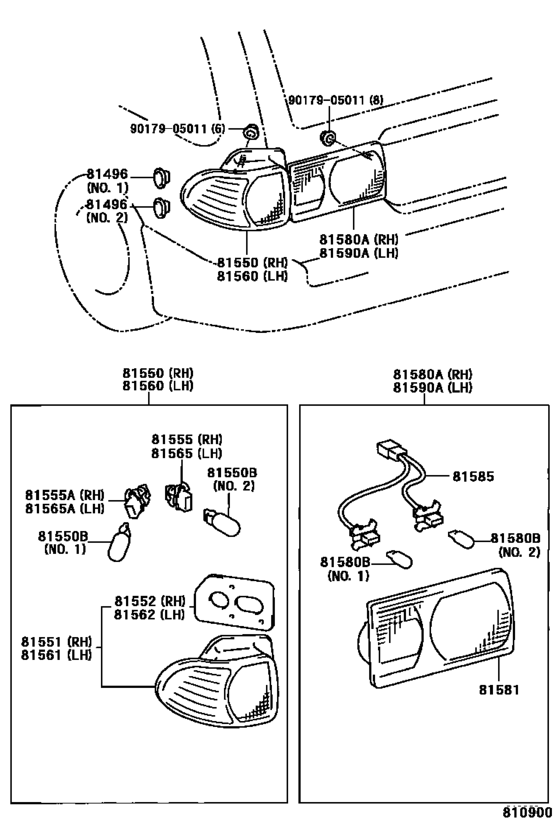

Rear Combination Lamp ([08.1999 - ] (9908- )) Diagram Toyota PICNIC/ AVENSIS/ VERSO
- Year
- 1999 - 2001
- Sales region
- General
- Frame
- SXM10
- ENGINE
- 3SFE
- Model
- PICNIC
- From
- 08.1999
- To
- 05.2001
- Vehicle Model
- PICNIC
- Driver's Position
- RHD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
81496
|
81496
81496-44010 Guide, Rear Combination Lamp[08.1999 -] SXM10 NO.1 |
81496-44010 |
US $4.80 |
||
|
81496
|
81496
81496-44020 Guide, Rear Combination Lamp[08.1999 -] SXM10 NO.2 |
81496-44020 |
US $4.80 |
||
|
81550
|
81550
81550-44040 Lamp Assy, Rear Combination, Rh[08.1999 -] SXM10 |
81550-44040 |
US $227.14 |
||
|
81550B
|
81550B
90981-13043 Bulb (12V 21W)[08.1999 -] SXM10 12V 21W,NO.1 |
90981-13043 |
from US $3.24 |
||
|
81550B
|
81550B
90981-13044 Bulb(For Rear Combination Lamp) (12V 21/5W)[08.1999 -] SXM10 12V 21/5W,NO.2 |
90981-13044 |
from US $3.55 |
||
|
81551
|
81551
81551-44040 Lens, Rear Combination Lamp, Rh[08.1999 -] SXM10 |
81551-44040 |
US $199.47 |
||
|
81552
|
81552
81552-44010 Gasket, Rear Combination Lamp Lens, Rh[08.1999 -] SXM10 |
81552-44010 |
US $27.08 |
||
|
81555
|
81555
90075-60002 Socket, Tail & Stop Lamp[08.1999 -] SXM10 |
90075-60002 |
from US $4.02 |
||
|
81555A
|
81555A
90075-60003 Socket,rear Fog Lamp[08.1999 -] SXM10 |
90075-60003 |
US $6.47 |
||
|
81560
|
81560
81560-44040 Lamp Assy, Rear Combination, Lh[08.1999 -] SXM10 |
81560-44040 |
US $227.14 |
||
|
81561
|
81561
81561-44040 Lens, Rear Combination Lamp, Lh[08.1999 -] SXM10 |
81561-44040 |
US $199.47 |
||
|
81562
|
81562
81552-44010 Gasket, Rear Combination Lamp Lens, Rh[08.1999 -] SXM10 |
81552-44010 |
US $27.08 |
||
|
81565
|
81565
90075-60002 Socket, Tail & Stop Lamp[08.1999 -] SXM10 |
90075-60002 |
from US $4.02 |
||
|
81565A
|
81565A
90075-60003 Socket,rear Fog Lamp[08.1999 -] SXM10 |
90075-60003 |
US $6.47 |
||
|
81580A
|
81580A
81580-44040 Lamp Assy, Rear[08.1999 -] SXM10 |
81580-44040 |
US $187.82 |
||
|
81580B
|
81580B
90981-11039
Bulb (For License Plate Lamp)
[08.1999 -] SXM10 12V 16W,NO.1 |
90981-11039 |
— | ||
| replacement | |||||
|
81580B
|
81580B
90981-11059 Bulb(For Rear Combination Lamp) (12V 16W)[08.1999 -] SXM10 12V 16W,NO.1 |
90981-11059 |
from US $3.24 |
||
|
81580B
|
81580B
90981-13044 Bulb(For Rear Combination Lamp) (12V 21/5W)[08.1999 -] SXM10 12V 21/5W,NO.2 |
90981-13044 |
from US $3.55 |
||
|
81581
|
81581
81581-44040 Lens, Rear Lamp[08.1999 -] SXM10 RH |
81581-44040 |
from US $151.42 |
||
|
81581
|
81581
81591-44040 Lens, Rear Lamp[08.1999 -] SXM10 LH |
81591-44040 |
US $151.42 |
||
|
81585
|
81585
81585-44040 Socket & Wire, Rear Lamp[08.1999 -] SXM10 |
81585-44040 |
US $29.27 |
||
|
81590A
|
81590A
81590-44040 Lamp Assy, Rear, Lh[08.1999 -] SXM10 |
81590-44040 |
US $187.82 |
||
|
9017905011
|
9017905011
90179-05011 NUT |
90179-05011 |
from US $0.78 |
||
| replacement | |||||
|
9017905011
|
9017905011
90178-A0005 New Genuine Part |
90178-A0005 |
US $3.02 |
||
