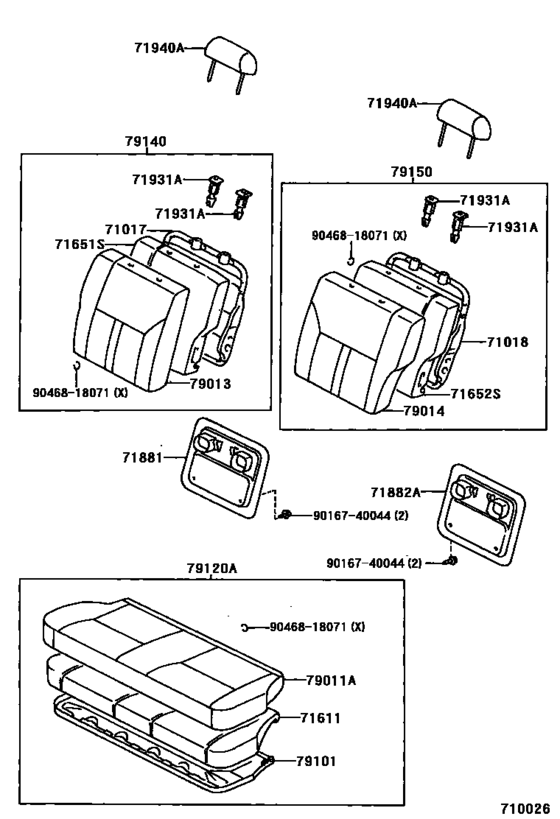

Rear Seat & Seat Track ([08.1999 - ] NO.1 SEAT (9908- )) Diagram Toyota PICNIC/ AVENSIS/ VERSO
- Year
- 1999 - 2001
- Sales region
- General
- Frame
- SXM10
- ENGINE
- 3SFE
- Model
- PICNIC
- From
- 08.1999
- To
- 05.2001
- Vehicle Model
- PICNIC
- Driver's Position
- RHD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
71017
|
71017
79103-44010 Frame Sub-Assy, Rear Seat Back, Rh[08.1999 -] SXM10 |
79103-44010 |
US $96.10 |
||
|
71018
|
71018
79104-44010 Frame Sub-Assy, Rear Seat Back, Lh[08.1999 -] SXM10 |
79104-44010 |
US $96.10 |
||
|
71611
|
71611
79135-44010 Pad, Rear Seat Cushion[08.1999 -] SXM10 |
79135-44010 |
US $417.87 |
||
| replacement | |||||
|
71611
|
71611
79135-44090 Pad, Rear Seat Cushion[08.1999 -] SXM10 |
79135-44090 |
US $444.08 |
||
|
71651S
|
71651S
79175-44010 Pad, Rear Seat Back, Rh(For Separate Type)[08.1999 -] SXM10 |
79175-44010 |
US $218.40 |
||
|
71652S
|
71652S
79185-44010 Pad, Rear Seat Back, Lh(For Separate Type)[08.1999 -] SXM10 |
79185-44010 |
US $218.40 |
||
|
71881
|
71881
71881-44010-B0 Board, Rear Seat Back, Rh[08.1999 -] SXM10 MD.MOON MIST,TRIM1# |
71881-44010-B0 |
US $149.97 |
||
| replacement | |||||
|
71881
|
71881
71881-44010-C0 Board, Rear Seat Back, Rh[08.1999 -] SXM10 MD.MOON MIST,TRIM1# |
71881-44010-C0 |
US $149.97 |
||
|
71882A
|
71882A
71881-44010-B0 Board, Rear Seat Back, Rh[08.1999 -] SXM10 MD.MOON MIST,TRIM1# |
71881-44010-B0 |
US $149.97 |
||
| replacement | |||||
|
71882A
|
71882A
71881-44010-C0 Board, Rear Seat Back, Rh[08.1999 -] SXM10 MD.MOON MIST,TRIM1# |
71881-44010-C0 |
US $149.97 |
||
|
71931A
|
71931A
71930-44010-B0
Support, Front Seat Headrest
[08.1999 - 05.2001] SXM10 W(LOCK),BLUE GRAY,TRIM1# |
71930-44010-B0 |
— | ||
| replacement | |||||
|
71931A
|
71931A
71930-44010-C0 Support, Front Seat Headrest[08.1999 - 05.2001] SXM10 W(LOCK),BLUE GRAY,TRIM1# |
71930-44010-C0 |
US $16.60 |
||
|
71931A
|
71931A
71931-28030-B5
Support, Front Seat Headrest
[08.1999 - 05.2001] SXM10 W/O(LOCK),BLUISH GRAY,TRIM1# |
71931-28030-B5 |
— | ||
|
71940A
|
71940A
71910-44022-B3 Headrest Assy, Front Seat[08.1999 - 09.1999] SXM10 MEDIUM MOON MIST,TRIM1# |
71910-44022-B3 |
US $398.94 |
||
|
71940A
|
71940A
71910-44023-B7 Headrest Assy, Front Seat[09.1999 - 05.2001] SXM10 MD. MOON MIST,TRIM1# |
71910-44023-B7 |
US $398.94 |
||
|
79011A
|
79011A
79011-44022-B6
Cover Sub-Assy, No.1 Seat Cushion
[08.1999 - 09.1999] SXM10 MEDIUM MOON MIST,TRIM1# |
79011-44022-B6 |
— | ||
|
79011A
|
79011A
79011-44023-B6 Cover Sub-Assy, No.1 Seat Cushion[09.1999 -] SXM10 MEDIUM MOON MIST,TRIM1# |
79011-44023-B6 |
US $605.70 |
||
|
79013
|
79013
79013-44022-B6
Cover Sub-Assy, No.1 Seat Back, Rh
[08.1999 - 09.1999] SXM10 MEDIUM MOON MIST,TRIM1# |
79013-44022-B6 |
— | ||
|
79013
|
79013
79013-44023-B6 Cover Sub-Assy, No.1 Seat Back, Rh[09.1999 -] SXM10 MEDIUM MOON MIST,TRIM1# |
79013-44023-B6 |
US $455.73 |
||
|
79014
|
79014
79014-44022-B6
Cover Sub-Assy, No.1 Seat Back, Lh
[08.1999 - 09.1999] SXM10 MEDIUM MOON MIST,TRIM1# |
79014-44022-B6 |
— | ||
|
79014
|
79014
79014-44023-B6 Cover Sub-Assy, No.1 Seat Back, Lh[09.1999 -] SXM10 MEDIUM MOON MIST,TRIM1# |
79014-44023-B6 |
US $455.73 |
||
|
79101
|
79101
79101-44010 Frame Sub-Assy, No.1 Seat Cushion[08.1999 -] SXM10 |
79101-44010 |
US $419.33 |
||
|
79120A
|
79120A
79120-44022-B2 Cushion Assy, No.1 Seat[08.1999 - 09.1999] SXM10 ***,MEDIUM MOON MIST,TRIM1# |
79120-44022-B2 |
US $1,183.73 |
||
| replacement | |||||
|
79120A
|
79120A
79120-44023-B4 Cushion Assy, No.1 Seat[08.1999 - 09.1999] SXM10 ***,MEDIUM MOON MIST,TRIM1# |
79120-44023-B4 |
US $1,183.73 |
||
|
79120A
|
79120A
79120-44023-B4 Cushion Assy, No.1 Seat[09.1999 -] SXM10 ***,MD. MOON MIST,TRIM1# |
79120-44023-B4 |
US $1,183.73 |
||
|
79140
|
79140
79140-44022-B2 Back Assy, No.1 Seat, Rh[08.1999 - 09.1999] SXM10 ***,MEDIUM MOON MIST,TRIM1# |
79140-44022-B2 |
US $891.07 |
||
| replacement | |||||
|
79140
|
79140
79140-44023-B4 Back Assy, No.1 Seat, Rh[08.1999 - 09.1999] SXM10 ***,MEDIUM MOON MIST,TRIM1# |
79140-44023-B4 |
US $891.07 |
||
|
79140
|
79140
79140-44023-B4 Back Assy, No.1 Seat, Rh[09.1999 -] SXM10 ***,MD. MOON MIST,TRIM1# |
79140-44023-B4 |
US $891.07 |
||
|
79150
|
79150
79150-44022-B2 Back Assy, No.1 Seat, Lh[08.1999 - 09.1999] SXM10 ***,MEDIUM MOON MIST,TRIM1# |
79150-44022-B2 |
US $891.07 |
||
| replacement | |||||
|
79150
|
79150
79150-44023-B4 Back Assy, No.1 Seat, Lh[08.1999 - 09.1999] SXM10 ***,MEDIUM MOON MIST,TRIM1# |
79150-44023-B4 |
US $891.07 |
||
|
79150
|
79150
79150-44023-B4 Back Assy, No.1 Seat, Lh[09.1999 -] SXM10 ***,MD.MOON MIST,TRIM1# |
79150-44023-B4 |
US $891.07 |
||
|
9016740044
|
9016740044
90167-40044 BOLT |
90167-40044 |
from US $0.92 |
||
|
9046818071
|
9046818071
90468-18071
Clip (For Front Seat Cushion Cover)
|
90468-18071 |
— | ||
| replacement | |||||
|
9046818071
|
9046818071
90468-16019 Clip (For Rear Seat Back) |
90468-16019 |
from US $0.86 |
||
