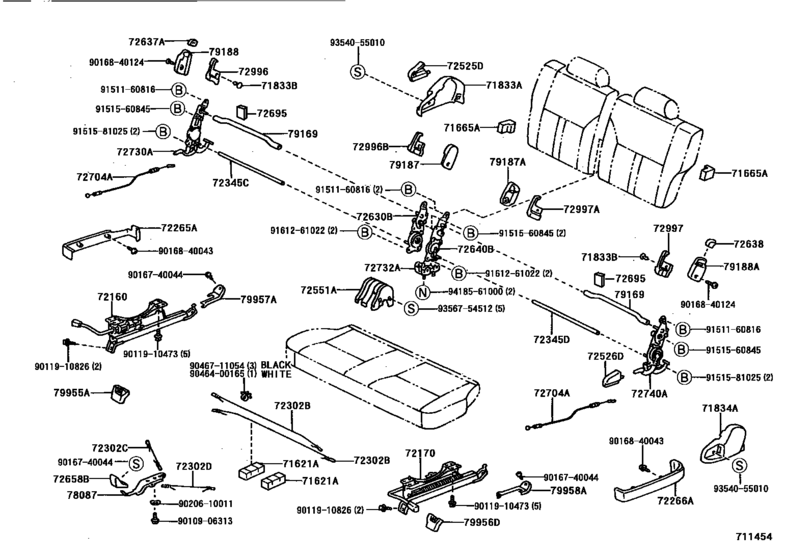

Rear Seat & Seat Track ([08.1999 - ] NO.1 SEAT (9908- )) Diagram Toyota PICNIC/ AVENSIS/ VERSO
- Year
- 1999 - 2001
- Sales region
- General
- Frame
- SXM10
- ENGINE
- 3SFE
- Model
- PICNIC
- From
- 08.1999
- To
- 05.2001
- Vehicle Model
- PICNIC
- Driver's Position
- RHD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
71621A
|
71621A
71621-44010 Pad, Rear Seat Cushion Silencer, A[08.1999 -] SXM10 |
71621-44010 |
US $4.66 |
||
|
71665A
|
71665A
71665-44010 Pad, Rear Seat Back, Side A[08.1999 -] SXM10 |
71665-44010 |
US $5.24 |
||
|
71833A
|
71833A
71833-44010-B0 Cover, Rear Seat Reclining, No.1 Rh[08.1999 -] SXM10 MD.MOON MIST,TRIM1# |
71833-44010-B0 |
US $29.41 |
||
| replacement | |||||
|
71833A
|
71833A
71833-44010-B1 Cover, Rear Seat Reclining, No.1 Rh[08.1999 -] SXM10 MD.MOON MIST,TRIM1# |
71833-44010-B1 |
US $29.41 |
||
|
71833B
|
71833B
90467-05017-B4 Clip (For Rear Seat Reclining Cover)[08.1999 -] SXM10 MD.MOON MIST,TRIM1# |
90467-05017-B4 |
US $2.15 |
||
|
71834A
|
71834A
71834-44010-B0 Cover, Rear Seat Reclining, No.1 Lh[08.1999 -] SXM10 MD.MOON MIST,TRIM1# |
71834-44010-B0 |
US $29.41 |
||
| replacement | |||||
|
71834A
|
71834A
71834-44010-B1 Cover, Rear Seat Reclining, No.1 Lh[08.1999 -] SXM10 MD.MOON MIST,TRIM1# |
71834-44010-B1 |
US $29.41 |
||
|
72160
|
72160
72160-44011 Track Assy, Rear Seat, Outer Rh[08.1999 -] SXM10 |
72160-44011 |
US $398.94 |
||
|
72170
|
72170
72170-44011 Track Assy, Rear Seat, Outer Lh[08.1999 -] SXM10 |
72170-44011 |
US $398.94 |
||
|
72265A
|
72265A
72265-44010-B0 Cover, Seat Track Upper Rail, Rh[08.1999 -] SXM10 MD.MOON MIST,TRIM1# |
72265-44010-B0 |
US $46.88 |
||
| replacement | |||||
|
72265A
|
72265A
72265-44010-B1 Cover, Seat Track Upper Rail, Rh[08.1999 -] SXM10 MD.MOON MIST,TRIM1# |
72265-44010-B1 |
US $46.88 |
||
|
72266A
|
72266A
72266-44010-B0 Cover, Seat Track Upper Rail, Lh[08.1999 -] SXM10 MD.MOON MIST,TRIM1# |
72266-44010-B0 |
US $46.88 |
||
| replacement | |||||
|
72266A
|
72266A
72266-44010-B1 Cover, Seat Track Upper Rail, Lh[08.1999 -] SXM10 MD.MOON MIST,TRIM1# |
72266-44010-B1 |
US $46.88 |
||
|
72302B
|
72302B
72302-44010 Wire Sub-Assy, Rear Seat Track Equalizing[08.1999 -] SXM10 |
72302-44010 |
US $6.70 |
||
|
72302C
|
72302C
72302-44020 Wire Sub-Assy, Rear Seat Track Equalizing, Rh[08.1999 -] SXM10 |
72302-44020 |
US $5.24 |
||
|
72302D
|
72302D
72302-44020 Wire Sub-Assy, Rear Seat Track Equalizing, Rh[08.1999 -] SXM10 |
72302-44020 |
US $5.24 |
||
|
72345C
|
72345C
72345-44010 Pipe,reclining Connecting, Rh[08.1999 -] SXM10 |
72345-44010 |
US $31.16 |
||
|
72345D
|
72345D
72345-44010 Pipe,reclining Connecting, Rh[08.1999 -] SXM10 |
72345-44010 |
US $31.16 |
||
|
72525D
|
72525D
72525-16010-B7
Handle, Reclining Adjuster Release, Rh
[08.1999 -] SXM10 MD.MOON MIST,TRIM1# |
72525-16010-B7 |
— | ||
|
72526D
|
72526D
72526-16010-B7 Handle, Reclining Adjuster Release, No.1 Rh[08.1999 -] SXM10 MD.MOON MIST,TRIM1# |
72526-16010-B7 |
US $16.42 |
||
|
72551A
|
72551A
72551-44010-B0 Cover, Reclining Hinge[08.1999 -] SXM10 MD.MOON MIST,TRIM1# |
72551-44010-B0 |
US $43.68 |
||
| replacement | |||||
|
72551A
|
72551A
72551-44010-B1 Cover, Reclining Hinge[08.1999 -] SXM10 MD.MOON MIST,TRIM1# |
72551-44010-B1 |
US $43.68 |
||
|
72630B
|
72630B
72630-44010 Adjuster Assy, Rear No.1 Seat, Inner Rh[08.1999 -] SXM10 |
72630-44010 |
US $182 |
||
|
72637A
|
72637A
72637-44030-B0 Handle, Rear Seat Lock[08.1999 - 05.2001] SXM10 MD.MOON MIST,TRIM1# |
72637-44030-B0 |
US $8.15 |
||
| replacement | |||||
|
72637A
|
72637A
72637-44030-B1 Handle, Rear Seat Lock[08.1999 - 05.2001] SXM10 MD.MOON MIST,TRIM1# |
72637-44030-B1 |
US $8.15 |
||
|
72638
|
72638
72638-44030-B0 Handle, Rear Seat Lock, Lh[08.1999 - 05.2001] SXM10 MD.MOON MIST,TRIM1# |
72638-44030-B0 |
US $8.15 |
||
| replacement | |||||
|
72638
|
72638
72638-44030-B1 Handle, Rear Seat Lock, Lh[08.1999 - 05.2001] SXM10 MD.MOON MIST,TRIM1# |
72638-44030-B1 |
US $8.15 |
||
|
72640B
|
72640B
72640-44010 Adjuster Assy, Rear No.1 Seat, Inner Lh[08.1999 -] SXM10 |
72640-44010 |
US $182 |
||
|
72658B
|
72658B
72658-44010-B0 Knob, Rear Seat Lock Handle[08.1999 -] SXM10 MD.MOON MIST,TRIM1# |
72658-44010-B0 |
US $12.23 |
||
| replacement | |||||
|
72658B
|
72658B
72658-44010-B1 Knob, Rear Seat Lock Handle[08.1999 -] SXM10 MD.MOON MIST,TRIM1# |
72658-44010-B1 |
US $12.23 |
||
|
72695
|
72695
72695-44010 Silencer, Rear Seat Back Lock Control Rod[08.1999 -] SXM10 |
72695-44010 |
US $3.49 |
||
|
72704A
|
72704A
72704-44010 Cable, Rear Seat Reclining Control[08.1999 -] SXM10 |
72704-44010 |
US $15.58 |
||
|
72730A
|
72730A
72710-44010 Adjuster Assy, Rear Seat Reclining, Rh[08.1999 -] SXM10 |
72710-44010 |
US $206.75 |
||
|
72732A
|
72732A
72732-44010 Bracket, Rear Seat Adjuster, Inner[08.1999 -] SXM10 |
72732-44010 |
US $25.19 |
||
|
72740A
|
72740A
72720-44010 Adjuster Assy, Rear Seat Reclining, Lh[08.1999 -] SXM10 |
72720-44010 |
US $206.75 |
||
|
72996
|
72996
72996-44010-B0 Cover, Rear Seat Back, Rh[08.1999 -] SXM10 MD.MOON MIST,TRIM1# |
72996-44010-B0 |
US $12.67 |
||
| replacement | |||||
|
72996
|
72996
72996-44010-B1 Cover, Rear Seat Back, Rh[08.1999 -] SXM10 MD.MOON MIST,TRIM1# |
72996-44010-B1 |
US $12.67 |
||
|
72996B
|
72996B
72997-44010-B0 Cover, Rear Seat Back, Inner Rh[08.1999 -] SXM10 MD.MOON MIST,TRIM1# |
72997-44010-B0 |
US $14.41 |
||
| replacement | |||||
|
72996B
|
72996B
72997-44010-B1 Cover, Rear Seat Back, Inner Rh[08.1999 -] SXM10 MD.MOON MIST,TRIM1# |
72997-44010-B1 |
US $14.41 |
||
|
72997
|
72997
72997-44020-B0 Cover, Rear Seat Back, Lh[08.1999 -] SXM10 MD.MOON MIST,TRIM1# |
72997-44020-B0 |
US $12.67 |
||
| replacement | |||||
|
72997
|
72997
72997-44020-B1 Cover, Rear Seat Back, Lh[08.1999 -] SXM10 MD.MOON MIST,TRIM1# |
72997-44020-B1 |
US $12.67 |
||
|
72997A
|
72997A
72996-44020-B0 Cover, Rear Seat Back, Inner Lh[08.1999 -] SXM10 MD.MOON MIST,TRIM1# |
72996-44020-B0 |
US $14.41 |
||
| replacement | |||||
|
72997A
|
72997A
72996-44020-B1 Cover, Rear Seat Back, Inner Lh[08.1999 -] SXM10 MD.MOON MIST,TRIM1# |
72996-44020-B1 |
US $14.41 |
||
|
78087
|
78087
78087-44010 Lever Sub-Assy, Sub Seat Lock[08.1999 -] SXM10 |
78087-44010 |
US $12.38 |
||
|
79169
|
79169
79169-44010 Rod, Rear Seat Hinge Connector[08.1999 -] SXM10 |
79169-44010 |
US $15.14 |
||
|
79187
|
79187
79187-44010-B0 Cover, No.1 Seat Inner Bracket[08.1999 -] SXM10 MD.MOON MIST,TRIM1# |
79187-44010-B0 |
US $33.49 |
||
| replacement | |||||
|
79187
|
79187
79187-44010-B1 Cover, No.1 Seat Inner Bracket[08.1999 -] SXM10 MD.MOON MIST,TRIM1# |
79187-44010-B1 |
US $33.49 |
||
|
79187A
|
79187A
79187-44020-B0 Cover, No.1 Seat Inner Bracket, Lh[08.1999 -] SXM10 MD.MOON MIST,TRIM1# |
79187-44020-B0 |
US $33.49 |
||
| replacement | |||||
|
79187A
|
79187A
79187-44020-B1 Cover, No.1 Seat Inner Bracket, Lh[08.1999 -] SXM10 MD.MOON MIST,TRIM1# |
79187-44020-B1 |
US $33.49 |
||
|
79188
|
79188
79188-44010-B0 Cover, No.1 Seat Outer Bracket[08.1999 -] SXM10 MD.MOON MIST,TRIM1# |
79188-44010-B0 |
US $33.49 |
||
| replacement | |||||
|
79188
|
79188
79188-44010-B1 Cover, No.1 Seat Outer Bracket[08.1999 -] SXM10 MD.MOON MIST,TRIM1# |
79188-44010-B1 |
US $33.49 |
||
|
79188A
|
79188A
79188-44020-B0 Cover, No.1 Seat Outer Bracket, Lh[08.1999 -] SXM10 MD.MOON MIST,TRIM1# |
79188-44020-B0 |
US $33.49 |
||
| replacement | |||||
|
79188A
|
79188A
79188-44020-B1 Cover, No.1 Seat Outer Bracket, Lh[08.1999 -] SXM10 MD.MOON MIST,TRIM1# |
79188-44020-B1 |
US $33.49 |
||
|
79955A
|
79955A
79955-44010-B0 Cover, Rear Seat Front Bracket, Rh[08.1999 -] SXM10 MD.MOON MIST,TRIM1# |
79955-44010-B0 |
US $7.86 |
||
|
79956D
|
79956D
79956-44010-B0 Cover, Rear Seat Front Bracket, Lh[08.1999 -] SXM10 MD.MOON MIST,TRIM1# |
79956-44010-B0 |
US $7.86 |
||
|
79957A
|
79957A
79957-44010-B0 Cover, Rear Seat Rear Bracket, Rh[08.1999 -] SXM10 MD.MOON MIST,TRIM1# |
79957-44010-B0 |
US $9.03 |
||
|
79958A
|
79958A
79958-44010-B0 Cover, Rear Seat Rear Bracket, Lh[08.1999 -] SXM10 MD.MOON MIST,TRIM1# |
79958-44010-B0 |
US $9.03 |
||
|
9010906313
|
9010906313
90109-06313 New Genuine Part |
90109-06313 |
US $1.75 |
||
|
9011910473
|
9011910473
90119-10473 New Genuine Part |
90119-10473 |
US $3.40 |
||
|
9011910826
|
9011910826
90119-10826 New Genuine Part |
90119-10826 |
US $2.33 |
||
| replacement | |||||
|
9011910826
|
9011910826
90119-10842 New Genuine Part |
90119-10842 |
US $2.18 |
||
|
9016740044
|
9016740044
90167-40044 BOLT |
90167-40044 |
from US $0.92 |
||
|
9016840043
|
9016840043
90168-40043 SCREW |
90168-40043 |
from US $0.74 |
||
|
9016840124
|
9016840124
90168-40124 New Genuine Part |
90168-40124 |
US $1.46 |
||
|
9020610011
|
9020610011
90206-10011 New Genuine Part |
90206-10011 |
US $0.83 |
||
|
9046400165
|
9046400165
90464-00165 Clamp, No.2(For Luggage Door Lock Control Cable) |
90464-00165 |
US $1.40 |
||
|
9046711054
|
9046711054
90467-11054 New Genuine Part |
90467-11054 |
US $1.60 |
||
|
9151160816
|
9151160816
91511-60816
BOLT
|
91511-60816 |
— | ||
| replacement | |||||
|
9151160816
|
9151160816
91511-B0816 BOLT |
91511-B0816 |
US $0.84 |
||
|
9151560845
|
9151560845
91515-60845 New Genuine Part |
91515-60845 |
US $2.18 |
||
|
9151581025
|
9151581025
91515-81025 New Genuine Part |
91515-81025 |
US $1.31 |
||
|
9161261022
|
9161261022
91612-61022 Bolt (For Transmission Control Cable Bracket) |
91612-61022 |
US $2.33 |
||
|
9354055010
|
9354055010
93540-55010 SCREW |
93540-55010 |
US $1.25 |
||
|
9356754512
|
9356754512
93567-54512
SCREW
|
93567-54512 |
— | ||
| replacement | |||||
|
9356754512
|
9356754512
93568-54512 SCREW |
93568-54512 |
from US $0.64 |
||
|
9418561000
|
9418561000
94185-61000 NUTLOCK |
94185-61000 |
from US $0.96 |
||
