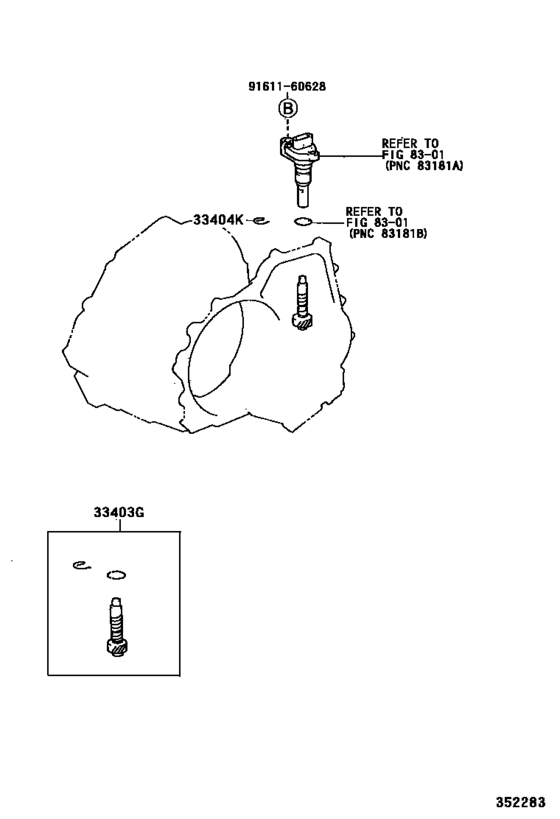

Speedometer Driven Gear (Atm) ([08.1999 - ] A247E (9908- )) Diagram Toyota PICNIC/ AVENSIS/ VERSO
- Year
- 1999 - 2001
- Sales region
- General
- Frame
- SXM10
- ENGINE
- 3SFE
- Model
- PICNIC
- From
- 08.1999
- To
- 05.2001
- Vehicle Model
- PICNIC
- Driver's Position
- RHD
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
33403G
|
33403G
33403-19525
Gear Sub-Assy, Speedometer Driven (Atm)
[08.1999 -] SXM10 N=21,MARK 21:25 |
33403-19525 |
— | ||
|
33404K
|
33404K
90468-12005 Clip (For Mtm Speedometer Shaft Sleeve)[08.1999 -] SXM10 |
90468-12005 |
US $1.61 |
||
|
9161160628
|
9161160628
91611-60628 Bolt, Hexagon |
91611-60628 |
US $1.51 |
