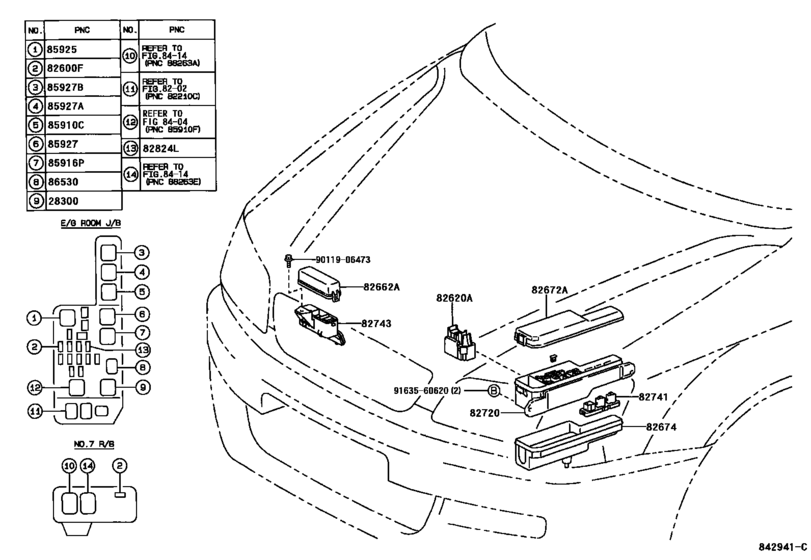

Switch & Relay & Computer ([08.1999 - ] ENGINE ROOM (9908- )) Diagram Toyota PICNIC/ AVENSIS/ VERSO
- Year
- 1999 - 2001
- Sales region
- General
- Frame
- SXM10
- ENGINE
- 3SFE
- Model
- PICNIC
- From
- 08.1999
- To
- 05.2001
- Vehicle Model
- PICNIC
- Driver's Position
- RHD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
28300
|
28300
28300-10020 Relay Assy, Starter[08.1999 -] 3SFE..SXM10 |
28300-10020 |
from US $53.76 |
||
|
82600F
|
82600F
90982-09007 Fusible Link[08.1999 -] SXM10 5A,MINI FUSE |
90982-09007 |
from US $0.55 |
||
|
82600F
|
82600F
90982-09008 Fusible Link[08.1999 -] SXM10 7.5A,MINI FUSE |
90982-09008 |
from US $0.90 |
||
|
82600F
|
82600F
90982-09009 Fusible Link[08.1999 -] SXM10 10A,MINI FUSE |
90982-09009 |
US $1.25 |
||
|
82600F
|
82600F
90982-09010 Fusible Link[08.1999 -] SXM10 15A,MINI FUSE |
90982-09010 |
from US $0.49 |
||
|
82600F
|
82600F
90982-09011 Fusible Link[08.1999 -] SXM10 20A,MINI FUSE |
90982-09011 |
from US $0.94 |
||
|
82600F
|
82600F
90982-09012 Fusible Link[08.1999 -] SXM10 25A,MINI FUSE |
90982-09012 |
from US $0.90 |
||
|
82600F
|
82600F
90982-09013 Fusible Link[08.1999 -] SXM10 30A,MINI FUSE |
90982-09013 |
from US $0.94 |
||
|
82620A
|
82620A
82620-20170 Block Assy, Fusible Link[08.1999 -] SXM10 |
82620-20170 |
US $51.40 |
||
|
82662A
|
82662A
82662-44050 Cover, Relay Block, Upper, No.1[08.1999 -] SXM10 |
82662-44050 |
US $16.89 |
||
|
82672A
|
82672A
82672-44011 Cover, Junction Block[08.1999 -] SXM10 |
82672-44011 |
US $38.58 |
||
|
82674
|
82674
82674-20040 Cover, Junction Block[08.1999 -] SXM10 |
82674-20040 |
from US $25.19 |
||
|
82720
|
82720
82720-44011 Block Assy, Engine Room Junction[08.1999 -] SXM10 |
82720-44011 |
US $272.27 |
||
|
82741
|
82741
82741-44010 Block, Engine Room Relay[08.1999 -] SXM10 |
82741-44010 |
US $14.27 |
||
|
82743
|
82743
82743-44030 Block, Engine Room Relay, No.3[08.1999 -] SXM10 |
82743-44030 |
US $42.95 |
||
|
82824L
|
82824L
82824-20140 Connector, Wiring Harness[08.1999 -] SXM10 |
82824-20140 |
US $2.48 |
||
|
85910C
|
85910C
90987-04002 Relay, Ignition, No.1[08.1999 -] SXM10 |
90987-04002 |
from US $24.32 |
||
|
85916P
|
85916P
90987-02006 Relay[08.1999 -] SXM10 |
90987-02006 |
from US $26.75 |
||
|
85925
|
85925
85925-17010 Relay, Ignition, No.1[08.1999 -] SXM10 |
85925-17010 |
from US $38.90 |
||
|
85927
|
85927
90987-03003 Relay Assy, Fuel Pump[08.1999 -] SXM10 |
90987-03003 |
from US $23.61 |
||
|
85927A
|
85927A
90987-04004 Relay, Starter Cut[08.1999 -] SXM10 |
90987-04004 |
from US $47.21 |
||
|
85927B
|
85927B
90987-02012 Relay, Ignition, No.1[08.1999 -] SXM10 |
90987-02012 |
from US $26.54 |
||
|
86530
|
86530
86530-20070 Relay Assy, Horn[08.1999 -] SXM10 |
86530-20070 |
from US $10.16 |
||
|
9011906473
|
9011906473
90119-06473 BOLTWWASHER |
90119-06473 |
US $1.25 |
||
|
9163560620
|
9163560620
91635-60620
New Genuine Part
|
91635-60620 |
— | ||
| replacement | |||||
|
9163560620
|
9163560620
91631-B0616 BOLT WWASHER |
91631-B0616 |
from US $0.66 |
||
