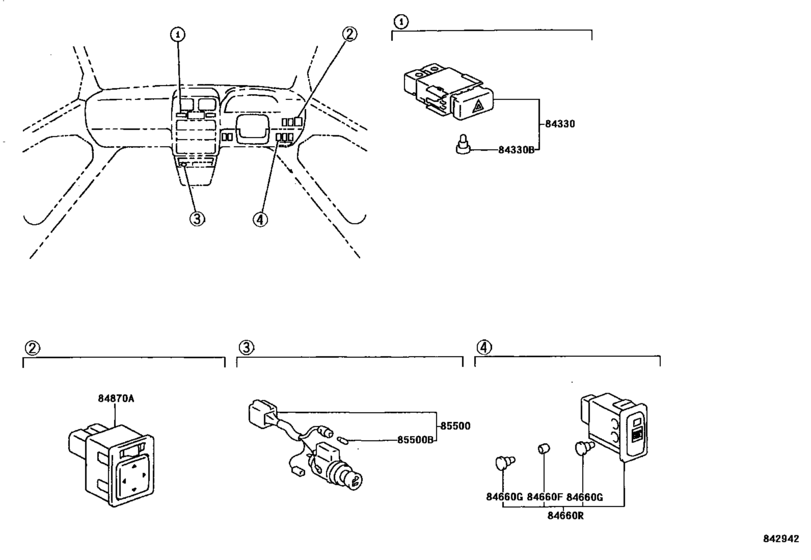

Switch & Relay & Computer ([08.1999 - ] INSTRUMENT PANEL SWITCH (9908- )) Diagram Toyota PICNIC/ AVENSIS/ VERSO
- Year
- 1999 - 2001
- Sales region
- General
- Frame
- SXM10
- ENGINE
- 3SFE
- Model
- PICNIC
- From
- 08.1999
- To
- 05.2001
- Vehicle Model
- PICNIC
- Driver's Position
- RHD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
84330
|
84330
84332-44010 Switch Assy, Hazard Warning Signal[08.1999 -] SXM10 |
84332-44010 |
US $57.51 |
||
|
84330B
|
84330B
84999-10860 Bulb, Hazard Warning Signal Switch[08.1999 -] SXM10 14V 0.91W |
84999-10860 |
from US $4.84 |
||
|
84660F
|
84660F
84998-10090 Cap, Fog Lamp Bulb[08.1999 -] SXM10 |
84998-10090 |
US $3.20 |
||
|
84660G
|
84660G
84999-10320 Bulb, Satellite Switch[08.1999 -] SXM10 14V 0.84W |
84999-10320 |
from US $4.30 |
||
|
84660R
|
84660R
84660-44010 Switch, Cooler(Rear)[08.1999 -] SXM10 |
84660-44010 |
US $60.86 |
||
|
84870A
|
84870A
84870-16040 Switch Assy, Outer Mirror[08.1999 -] SXM10 |
84870-16040 |
US $116.44 |
||
|
85500
|
85500
85500-44010 Lighter Assy, Cigarette[08.1999 -] SXM10 |
85500-44010 |
US $58.82 |
||
| replacement | |||||
|
85500
|
85500
85500-63010
Lighter Assy, Cigarette
[08.1999 -] SXM10 |
85500-63010 |
— | ||
|
85500B
|
85500B
90981-11014 Bulb, Position Indicator Lamp[08.1999 -] SXM10 14V 1.4W |
90981-11014 |
from US $2.15 |
||
