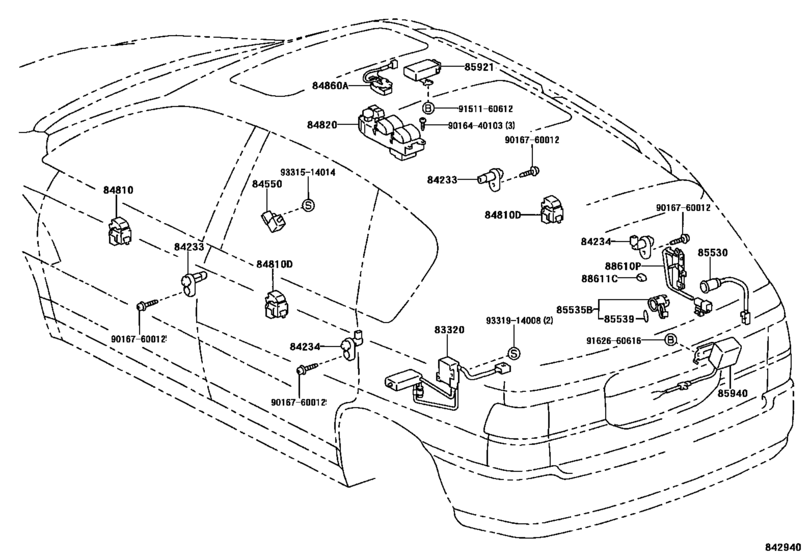

Switch & Relay & Computer ([08.1999 - ] DOOR,ROOF & FLOOR (9908- )) Diagram Toyota PICNIC/ AVENSIS/ VERSO
- Year
- 1999 - 2001
- Sales region
- General
- Frame
- SXM10
- ENGINE
- 3SFE
- Model
- PICNIC
- From
- 08.1999
- To
- 05.2001
- Vehicle Model
- PICNIC
- Driver's Position
- RHD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
83320
|
83320
83320-44020 Gage Assy, Fuel Sender[08.1999 -] SXM10 |
83320-44020 |
US $123.76 |
||
|
84233
|
84233
84231-12160 Switch Assy, Courtesy Lamp (For Front Door)[08.1999 -] SXM10 |
84231-12160 |
US $17.98 |
||
|
84234
|
84234
84231-12170 Switch Assy, Courtesy Lamp (For Rear Door)[08.1999 -] SXM10 |
84231-12170 |
from US $14.41 |
||
|
84550
|
84550
84550-16060 Switch Assy, Parking Brake[08.1999 -] SXM10 |
84550-16060 |
from US $19.32 |
||
|
84810
|
84810
84810-12080 Switch Assy, Power Window Regulator[08.1999 -] SXM10 |
84810-12080 |
from US $28.70 |
||
|
84810D
|
84810D
84810-12080 Switch Assy, Power Window Regulator[08.1999 -] SXM10 |
84810-12080 |
from US $28.70 |
||
|
84820
|
84820
84820-44010 Master Switch Assy, Power Window Regulator[08.1999 -] SXM10 |
84820-44010 |
US $331.97 |
||
|
84860A
|
84860A
84860-44010-B1 Switch Assy, Sliding Roof[08.1999 -] SXM10 LT.BLUISH GRAY,TRIM1# |
84860-44010-B1 |
US $53.29 |
||
|
85530
|
85530
85530-44010 Socket Assy, Power Outlet, No.1[08.1999 -] SXM10 |
85530-44010 |
US $37.56 |
||
|
85535B
|
85535B
85535-44020 Cover, Power Outlet Socket, No.1POWER POINT SOCKET [08.1999 -] SXM10 |
85535-44020 |
US $11.50 |
||
| replacement | |||||
|
85535B
|
85535B
85535-44040-B1 Cover, Power Outlet Socket, RearPOWER OUTLET SOCKET, REAR [08.1999 -] SXM10 |
85535-44040-B1 |
US $9.46 |
||
|
85539
|
85539
85539-60020 Label, Power Outlet Notice[08.1999 -] SXM10 |
85539-60020 |
US $1.41 |
||
|
85921
|
85921
85921-44010 Relay, Sliding Roof Control[08.1999 -] SXM10 |
85921-44010 |
US $221.31 |
||
|
85940
|
85940
85940-44020 Relay Assy, Windshield Wiper[08.1999 -] SXM10 |
85940-44020 |
US $152.88 |
||
|
88610P
|
88610P
88610-44020
Switch Assy, Control
[08.1999 -] SXM10 |
88610-44020 |
— | ||
|
88611C
|
88611C
88611-28020-B3
Knob, Cooler Control Switch
[08.1999 -] SXM10 MD.MOON MIST,TRIM1# |
88611-28020-B3 |
— | ||
| replacement | |||||
|
88611C
|
88611C
88611-28020-C0
Knob, Cooler Control Switch
[08.1999 -] SXM10 MD.MOON MIST,TRIM1# |
88611-28020-C0 |
— | ||
|
9016440103
|
9016440103
90164-40103 SCREW BINDING |
90164-40103 |
from US $0.74 |
||
|
9016760012
|
9016760012
90167-60012 New Genuine Part |
90167-60012 |
US $0.87 |
||
|
9151160612
|
9151160612
91511-60612 BOLT |
91511-60612 |
US $1.97 |
||
|
9162660616
|
9162660616
91626-60616
New Genuine Part
|
91626-60616 |
— | ||
| replacement | |||||
|
9162660616
|
9162660616
91621-J0612 BOLT W-WASHER |
91621-J0612 |
from US $0.66 |
||
|
9331514014
|
9331514014
93315-14014 SCREW |
93315-14014 |
US $1.25 |
||
|
9331914008
|
9331914008
93319-14008 SCREW |
93319-14008 |
from US $1.43 |
||
