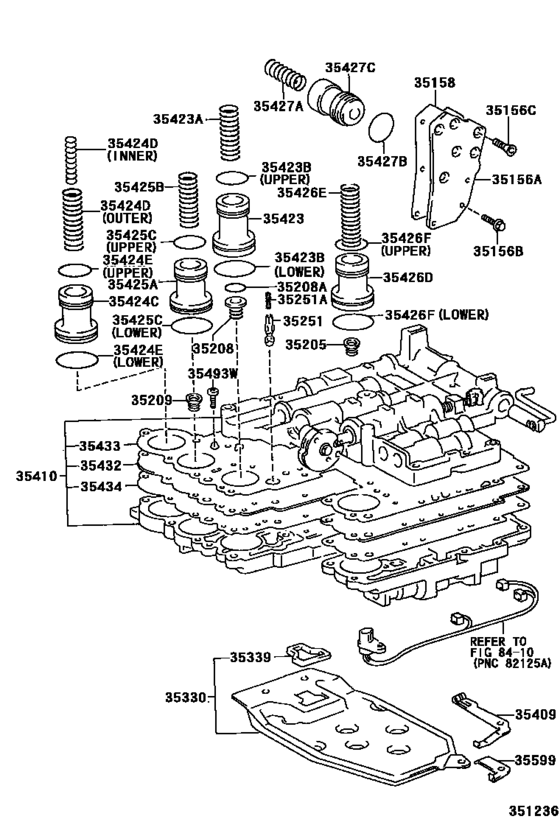

Valve Body & Oil Strainer (Atm) ([08.1999 - ] A247E (9908- )) Diagram Toyota PICNIC/ AVENSIS/ VERSO
- Year
- 1999 - 2001
- Sales region
- General
- Frame
- SXM10
- ENGINE
- 3SFE
- Model
- PICNIC
- From
- 08.1999
- To
- 05.2001
- Vehicle Model
- PICNIC
- Driver's Position
- RHD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
35156A
|
35156A
35108-20070 Plate, Transmission Case, No.2[08.1999 -] SXM10 |
35108-20070 |
US $378.56 |
||
|
35156B
|
35156B
90105-06049 Bolt(For Transmission Case No.2 Plate)[08.1999 -] SXM10 |
90105-06049 |
US $1.25 |
||
|
35156C
|
35156C
90149-60041
Screw(For Transmission Case No.2 Plate)
[08.1999 -] SXM10 |
90149-60041 |
— | ||
|
35158
|
35158
35158-20020 Gasket, Transmission Case, No.2 Plate[08.1999 -] SXM10 |
35158-20020 |
US $5.10 |
||
|
35205
|
35205
35205-20010 Spring Sub-Assy, C-3 Accumulator[08.1999 -] SXM10 |
35205-20010 |
US $3.64 |
||
|
35208
|
35208
35205-20040 Spring Sub-Assy, B-2 Accumulator[08.1999 -] SXM10 |
35205-20040 |
US $3.49 |
||
|
35208A
|
35208A
90521-22004 Ring, Hole Snap (For B-3 Accumulator Spring)[08.1999 -] SXM10 |
90521-22004 |
from US $1.24 |
||
|
35209
|
35209
35209-20030 Spring Sub-Assy, C-2 Accumulator[08.1999 -] SXM10 |
35209-20030 |
US $3.49 |
||
|
35251
|
35251
35251-30020 Body, Check Ball[08.1999 -] SXM10 |
35251-30020 |
US $14.50 |
||
|
35251A
|
35251A
90501-03005 Spring, Compression (For Check Ball Body)[08.1999 -] SXM10 |
90501-03005 |
from US $0.79 |
||
|
35330
|
35330
35330-12030 Strainer Assy, Valve Body Oil[08.1999 -] SXM10 |
35330-12030 |
from US $48.98 |
||
|
35339
|
35339
35339-12020 Gasket, Oil Strainer[08.1999 -] SXM10 |
35339-12020 |
US $3.85 |
||
|
35409
|
35409
35409-12030 Spring Sub-Assy, Manual Detent[08.1999 -] SXM10 |
35409-12030 |
US $14.41 |
||
| replacement | |||||
|
35409
|
35409
35409-12060 Spring Sub-Assy, Manual Detent[08.1999 -] SXM10 |
35409-12060 |
US $10.19 |
||
|
35410
|
35410
35410-44021 Body Assy, Transmission Valve[08.1999 -] SXM10 |
35410-44021 |
US $1,557.92 |
||
|
35423
|
35423
35423-12010 Piston, B-2 Accumulator[08.1999 -] SXM10 |
35423-12010 |
US $20.68 |
||
|
35423A
|
35423A
90501-22034 Spring, Compression (For B-2 Accumulator Piston)[08.1999 -] SXM10 |
90501-22034 |
US $2.18 |
||
|
35423B
|
35423B
90301-21012 Ring (For Accumulator Piston No.3)[08.2000 -] SXM10 UPPER |
90301-21012 |
from US $1.49 |
||
|
35423B
|
35423B
90301-22185 Ring (For Accumulator Piston No.3)[08.1999 - 08.2000] SXM10 UPPER |
90301-22185 |
US $5.39 |
||
|
35423B
|
35423B
90301-29011 Ring (For Accumulator Piston No.1)[08.2000 -] SXM10 LOWER |
90301-29011 |
from US $2.62 |
||
|
35423B
|
35423B
90301-29187 Ring, O (For Low Speed Brake Accumulator Piston)[08.1999 - 08.2000] SXM10 LOWER |
90301-29187 |
US $8.30 |
||
|
35424C
|
35424C
35424-12030 Piston, C-1 Accumulator[08.1999 -] SXM10 |
35424-12030 |
US $22.13 |
||
|
35424D
|
35424D
90501-20150 Spring, Compression (For C-1 Accumulator Piston)[08.1999 -] SXM10 OUTER |
90501-20150 |
US $3.49 |
||
|
35424D
|
35424D
90501-24027 Spring, Compression (For C-1 Accumulator Piston)[08.1999 -] SXM10 INNER |
90501-24027 |
US $3.06 |
||
|
35424E
|
35424E
90301-23010 Ring (For Accumulator Piston No.1)[08.2000 -] SXM10 UPPER |
90301-23010 |
from US $1.79 |
||
|
35424E
|
35424E
90301-23194 Ring, O (For Low Speed Brake Accumulator Piston)[08.1999 - 08.2000] SXM10 UPPER |
90301-23194 |
US $5.09 |
||
|
35424E
|
35424E
90301-29011 Ring (For Accumulator Piston No.1)[08.2000 -] SXM10 LOWER |
90301-29011 |
from US $2.62 |
||
|
35424E
|
35424E
90301-29187 Ring, O (For Low Speed Brake Accumulator Piston)[08.1999 - 08.2000] SXM10 LOWER |
90301-29187 |
US $8.30 |
||
|
35425A
|
35425A
35425-20040 Piston, C-2 Accumulator[08.1999 -] SXM10 |
35425-20040 |
US $27.66 |
||
|
35425B
|
35425B
90501-24028 Spring, Compression (For C-2 Accumulator Piston)[08.1999 -] SXM10 |
90501-24028 |
US $3.93 |
||
|
35425C
|
35425C
90301-26012 Ring (For Accumulator Piston No.1)[08.2000 -] SXM10 UPPER |
90301-26012 |
US $1.49 |
||
|
35425C
|
35425C
90301-26190 Ring, O (For Flange Yoke)[08.1999 - 08.2000] SXM10 UPPER |
90301-26190 |
US $6.19 |
||
|
35425C
|
35425C
90301-29011 Ring (For Accumulator Piston No.1)[08.2000 -] SXM10 LOWER |
90301-29011 |
from US $2.62 |
||
|
35425C
|
35425C
90301-29187 Ring, O (For Low Speed Brake Accumulator Piston)[08.1999 - 08.2000] SXM10 LOWER |
90301-29187 |
US $8.30 |
||
|
35426D
|
35426D
35426-12030 Piston, C-3 Accumulator[08.1999 -] SXM10 |
35426-12030 |
US $20.09 |
||
|
35426E
|
35426E
90501-23129
Spring, Compression (For C-3 Accumulator Piston)
[08.1999 -] SXM10 |
90501-23129 |
— | ||
|
35426F
|
35426F
90301-21012 Ring (For Accumulator Piston No.3)[08.2000 -] SXM10 UPPER |
90301-21012 |
from US $1.49 |
||
|
35426F
|
35426F
90301-22185 Ring (For Accumulator Piston No.3)[08.1999 - 08.2000] SXM10 UPPER |
90301-22185 |
US $5.39 |
||
|
35426F
|
35426F
90301-29011 Ring (For Accumulator Piston No.1)[08.2000 -] SXM10 LOWER |
90301-29011 |
from US $2.62 |
||
|
35426F
|
35426F
90301-29187 Ring, O (For Low Speed Brake Accumulator Piston)[08.1999 - 08.2000] SXM10 LOWER |
90301-29187 |
US $8.30 |
||
|
35427A
|
35427A
90501-26078 Spring, Compression (For B-4 Accumulator Piston)[08.1999 -] SXM10 |
90501-26078 |
US $3.93 |
||
|
35427B
|
35427B
90301-21012 Ring (For Accumulator Piston No.3)[08.2000 -] SXM10 |
90301-21012 |
from US $1.49 |
||
|
35427B
|
35427B
90301-22185 Ring (For Accumulator Piston No.3)[08.1999 - 08.2000] SXM10 |
90301-22185 |
US $5.39 |
||
|
35427C
|
35427C
35427-13010 Piston, B-4 Accumulator[08.1999 -] SXM10 |
35427-13010 |
US $20.53 |
||
|
35432
|
35432
35432-44020 Plate, Valve Body, No.1[08.1999 -] SXM10 |
35432-44020 |
US $52.27 |
||
|
35433
|
35433
35433-12050
Gasket, Valve Body, No.1
[08.1999 -] SXM10 |
35433-12050 |
— | ||
|
35434
|
35434
35434-12030
Gasket, Valve Body, No.2
[08.1999 -] SXM10 |
35434-12030 |
— | ||
|
35493W
|
35493W
35493-50040 Seat, Valve Body[08.1999 -] SXM10 |
35493-50040 |
US $2.18 |
||
|
35599
|
35599
35599-12020 Cover, Manual Detent Spring[08.1999 -] SXM10 |
35599-12020 |
US $5.24 |
||
| replacements | |||||
|
35599
|
35599
35409-12060 Spring Sub-Assy, Manual Detent[08.1999 -] SXM10 |
35409-12060 |
US $10.19 |
||
|
35599
|
35599
35599-12040 Cover, Manual Detent Spring[08.1999 -] SXM10 |
35599-12040 |
US $4.66 |
||
