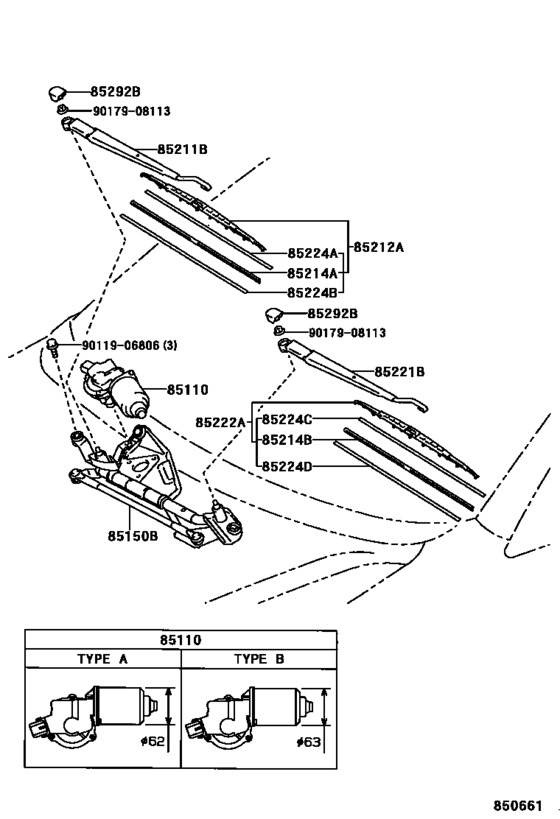

Windshield Wiper ([08.1999 - ] (9908- )) Diagram Toyota PICNIC/ AVENSIS/ VERSO
- Year
- 1999 - 2001
- Sales region
- General
- Frame
- SXM10
- ENGINE
- 3SFE
- Model
- PICNIC
- From
- 08.1999
- To
- 05.2001
- Vehicle Model
- PICNIC
- Driver's Position
- RHD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
85110
|
85110
85110-44010 Motor Assy, Windshield Wiper[08.1999 -] SXM10 |
85110-44010 |
US $407.68 |
||
| replacement | |||||
|
85110
|
85110
85110-44020 Motor Assy, Windshield Wiper[08.1999 -] SXM10 |
85110-44020 |
US $410.59 |
||
|
85150B
|
85150B
85150-44011 Link Assy, Wiper[08.1999 -] SXM10 |
85150-44011 |
US $151.42 |
||
|
85211B
|
85211B
85211-44011 Arm, Front Wiper, Rh[08.1999 -] SXM10 |
85211-44011 |
US $80.08 |
||
|
85212A
|
85212A
85212-44010 Blade, Fr Wiper, Rh[08.1999 -] SXM10 |
85212-44010 |
US $62.03 |
||
| replacement | |||||
|
85212A
|
85212A
85212-13010 Blade, Fr Wiper, Rh[08.1999 -] SXM10 |
85212-13010 |
US $41.04 |
||
|
85214A
|
85214A
85214-44010 Rubber, Wiper, Rh[08.1999 -] SXM10 |
85214-44010 |
US $13.98 |
||
| replacement | |||||
|
85214A
|
85214A
85214-50100 Rubber, Wiper, Rh[08.1999 -] SXM10 |
85214-50100 |
from US $13.07 |
||
|
85214B
|
85214B
85214-44080 Rubber, Wiper, Lh[08.1999 -] SXM10 |
85214-44080 |
from US $7.12 |
||
|
85221B
|
85221B
85221-44011 Arm, Front Wiper, Lh[08.1999 -] SXM10 |
85221-44011 |
US $90.27 |
||
|
85222A
|
85222A
85222-44030 Blade, Fr Wiper, Lh[08.1999 -] SXM10 |
85222-44030 |
US $24.90 |
||
| replacement | |||||
|
85222A
|
85222A
85222-68011 Blade, Fr Wiper, Lh[08.1999 -] SXM10 |
85222-68011 |
US $24.86 |
||
|
85224A
|
85224A
85224-44010 Plate, Wiper Rubber Backing, No.1[08.1999 -] SXM10 |
85224-44010 |
US $6.03 |
||
|
85224B
|
85224B
85224-44010 Plate, Wiper Rubber Backing, No.1[08.1999 -] SXM10 |
85224-44010 |
US $6.03 |
||
|
85224C
|
85224C
85224-44070 Plate, Wiper Rubber Backing, No.3[08.1999 -] SXM10 |
85224-44070 |
US $6.41 |
||
|
85224D
|
85224D
85224-44070 Plate, Wiper Rubber Backing, No.3[08.1999 -] SXM10 |
85224-44070 |
US $6.41 |
||
|
85292B
|
85292B
85292-44010 Cover, Windshield Wiper Arm[08.1999 -] SXM10 |
85292-44010 |
from US $4.70 |
||
|
9011906806
|
9011906806
90119-06806 New Genuine Part |
90119-06806 |
US $1.61 |
||
|
9017908113
|
9017908113
90179-08113 Nut (For Front Wiper Arm Setting) |
90179-08113 |
from US $0.98 |
||
