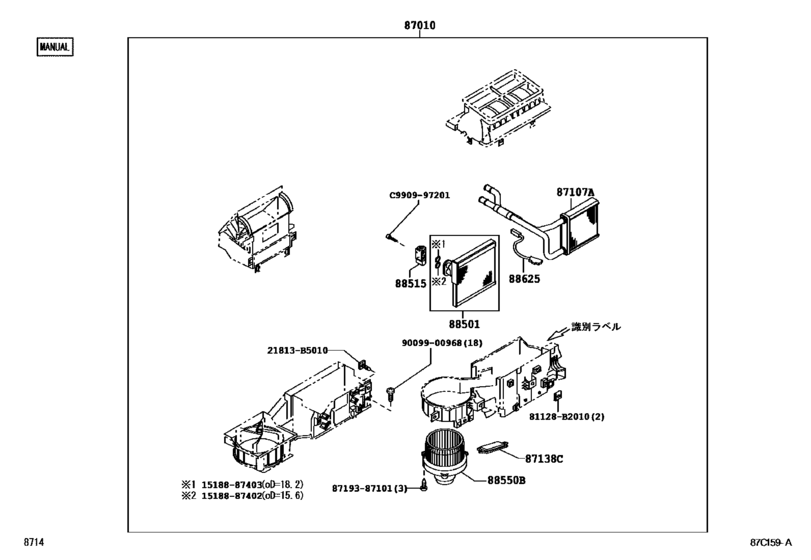

Heating & Air Conditioning - Cooler Unit ([09.2011 - ] ﾏﾆｭｱﾙ (1109- )L) Diagram Toyota PIXIS
- Year
- 2012 - 2013
- Sales region
- Japan
- Frame
- L585A
- grade
- L
- ENGINE
- KFVE
- TRANSMISSION
- CVT
- CATEGORY
- PS2
- Model
- PIXIS SPACE
- From
- 04.2012
- To
- 06.2013
- No.of Doors
- 5D
- Vehicle Model
- PIXIS SPACE
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
87010
|
87010
87010-B2C60
Unit Assy, Air Conditioner
[09.2011 - 12.2012] L585..L..PS2; L575..L..PS2 寒冷地仕様; L575..L..PS2 積雪地仕様 |
87010-B2C60 |
— | ||
| replacement | |||||
|
87010
|
87010
87010-B2C64 Unit Assy, Air Conditioner[09.2011 - 12.2012] L585..L..PS2; L575..L..PS2 寒冷地仕様; L575..L..PS2 積雪地仕様 |
87010-B2C64 |
US $953.68 |
||
|
87010
|
87010
87010-B2C61
Unit Assy, Air Conditioner
[01.2013 - 06.2013] L585..L; L575..L 寒冷地仕様; L575..L 積雪地仕様 |
87010-B2C61 |
— | ||
| replacement | |||||
|
87010
|
87010
87010-B2C64 Unit Assy, Air Conditioner[01.2013 - 06.2013] L585..L; L575..L 寒冷地仕様; L575..L 積雪地仕様 |
87010-B2C64 |
US $953.68 |
||
|
87107A
|
87107A
87107-B2020 Unit Sub-Assy, Heater Radiator[09.2011 - 06.2013] L575,585..PS2 |
87107-B2020 |
US $269.36 |
||
|
87138C
|
87138C
87138-B2010
Resistor, Blower
[09.2011 - 06.2013] L575,585..L..PS2 |
87138-B2010 |
— | ||
|
88501
|
88501
88304-B2040
Evaporator Sub-Assy, Cooler, No.1
[09.2011 - 01.2013] L575..L..PS2 識別ラベル（ＰＮＣ ８７０１０）＝Ｃ５０; L585..L..PS2 識別ラベル（ＰＮＣ ８７０１０）＝Ｃ６０; L575..(CTMG,CTMRS,CTMX,X)..PS2 識別ラベル（ＰＮＣ ８７０１０）＝Ｃ１０; L585..(CTMG,CTMRS,CTMX,X)..PS2 識別ラベル（ＰＮＣ ８７０１０）＝Ｃ２０; L575..L..PS2 寒冷地仕様,識別ラベル（ＰＮＣ ８７０１０）＝Ｃ６０; L575..(CTMG,CTMRS, |
88304-B2040 |
— | ||
| replacement | |||||
|
88501
|
88501
88501-B2010
Evaporator Sub-Assy, Cooler, No.1
[09.2011 - 01.2013] L575..L..PS2 識別ラベル（ＰＮＣ ８７０１０）＝Ｃ５０; L585..L..PS2 識別ラベル（ＰＮＣ ８７０１０）＝Ｃ６０; L575..(CTMG,CTMRS,CTMX,X)..PS2 識別ラベル（ＰＮＣ ８７０１０）＝Ｃ１０; L585..(CTMG,CTMRS,CTMX,X)..PS2 識別ラベル（ＰＮＣ ８７０１０）＝Ｃ２０; L575..L..PS2 寒冷地仕様,識別ラベル（ＰＮＣ ８７０１０）＝Ｃ６０; L575..(CTMG,CTMRS, |
88501-B2010 |
— | ||
|
88501
|
88501
88501-B2010
Evaporator Sub-Assy, Cooler, No.1
[01.2013 - 06.2013] L575..L 識別ラベル（ＰＮＣ ８７０１０）＝Ｃ５１; L585..L 識別ラベル（ＰＮＣ ８７０１０）＝Ｃ６１; L575..CTMG,CTMRS,CTMX,X 識別ラベル（ＰＮＣ ８７０１０）＝Ｃ１１; L585..CTMG,CTMRS,CTMX,X 識別ラベル（ＰＮＣ ８７０１０）＝Ｃ２１; L575..L 寒冷地仕様,識別ラベル（ＰＮＣ ８７０１０）＝Ｃ６１; L575..CTMG,CTMRS,CTMX,X 寒冷地仕様,識別ラベル（ＰＮＣ ８７０１０）＝ |
88501-B2010 |
— | ||
|
88515
|
88515
88515-B2020 Valve, Cooler Expansion[09.2011 - 06.2013] L575,585 |
88515-B2020 |
US $81.84 |
||
|
88550B
|
88550B
88550-B2100
Motor Assy, Blower
[09.2011 - 06.2013] L575,585..PS2 |
88550-B2100 |
— | ||
|
88625
|
88625
88625-B2080
Thermistor, Cooler, No.1
[09.2011 - 06.2013] L575,585..PS2 |
88625-B2080 |
— | ||
|
21813B5010
|
21813B5010
21813-B5010 Bolt, Stud(for Carburetor To Air Connector) |
21813-B5010 |
US $1.60 |
||
|
81128B2010
|
81128B2010
81128-B2010 Nut, Headlamp |
81128-B2010 |
US $2.48 |
||
|
1518887402
|
1518887402
15188-87402 Ring, O |
15188-87402 |
from US $2.09 |
||
|
1518887403
|
1518887403
15188-87403 Ring, O(For Cooler Refrigerant Suction Hose) |
15188-87403 |
from US $1.94 |
||
|
8719387101
|
8719387101
87193-87101
SCREW TAPPING
|
87193-87101 |
— | ||
|
9009900968
|
9009900968
90099-00968 Screw(For Air Conditioner Unit) |
90099-00968 |
US $0.80 |
||
|
C990997201
|
C990997201
C9909-97201 Bolt(For Cooler Expansion Valve) |
C9909-97201 |
US $2.15 |
||
