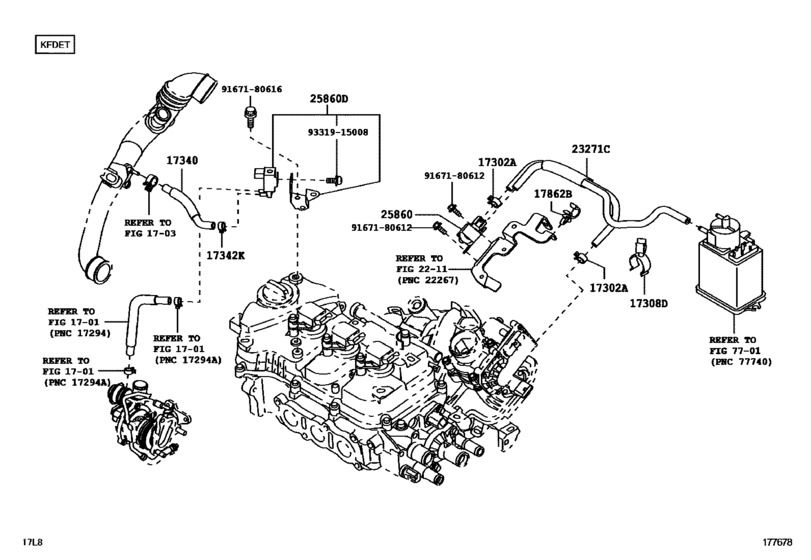

Vacuum Piping ([05.2012 - ] (1205- )KFDET) Diagram Toyota PIXIS
- Year
- 2013 - 2018
- Sales region
- Japan
- Frame
- L585A
- grade
- CTMRS
- ENGINE
- KFDET
- TRANSMISSION
- CVT
- CATEGORY
- PS3
- Model
- PIXIS SPACE
- From
- 06.2013
- No.of Doors
- 5D
- Vehicle Model
- PIXIS SPACE
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
17302A
|
17302A
96135-41100
Clamp Or Clip, Hose(For Water By-Pass Pipe)
[06.2013 -] KFDET..L575,585 |
96135-41100 |
— | ||
| replacement | |||||
|
17302A
|
17302A
96135-51100 Clamp Or Clip(For Turbo Oil Outlet Hose)[06.2013 -] KFDET..L575,585 |
96135-51100 |
from US $1.79 |
||
|
17308D
|
17308D
90044-64831 Clamp, No.2(For Vacuum Hose)[06.2013 -] KF#..L575,585 |
90044-64831 |
US $3.06 |
||
|
17340
|
17340
17340-B2010 Hose Assy, Vacuum Switching Valve[06.2013 - 08.2016] KFDET..L575,585 |
17340-B2010 |
US $10.77 |
||
| replacement | |||||
|
17340
|
17340
17340-B2011 Hose, Actuator[06.2013 - 08.2016] KFDET..L575,585 |
17340-B2011 |
US $10.77 |
||
|
17340
|
17340
17340-B2011 Hose, Actuator[09.2016 -] KFDET..L575,585 |
17340-B2011 |
US $10.77 |
||
|
17342K
|
17342K
90044-67271 Clip(For Actuator Hose)[06.2013 -] KFDET..L575,585 |
90044-67271 |
US $2.87 |
||
|
17862B
|
17862B
90044-64779 Clamp, Hose[06.2013 -] KF#..L575,585 |
90044-64779 |
US $3.35 |
||
|
23271C
|
23271C
77795-B2050 Hose, Fuel[06.2013 - 07.2014] KF#..L575,585 |
77795-B2050 |
US $23.88 |
||
|
23271C
|
23271C
77795-B2100 Hose, Fuel[07.2014 -] KF#..L575,585 |
77795-B2100 |
US $19.80 |
||
|
25860
|
25860
89470-B1020 Valve Assy, Vacuum Switching, No.1[06.2013 -] KF#..L575,585 |
89470-B1020 |
US $75.71 |
||
|
25860D
|
25860D
89470-B2010 Valve Assy, Vacuum Switching, No.2[06.2013 -] KFDET..L575,585 |
89470-B2010 |
US $63.04 |
||
|
9167180612
|
9167180612
91671-80612 Bolt |
91671-80612 |
from US $0.65 |
||
|
9167180616
|
9167180616
91671-80616 BOLT FLANGE |
91671-80616 |
from US $0.63 |
||
|
9331915008
|
9331915008
93319-15008 SCREW |
93319-15008 |
US $3.05 |
||
