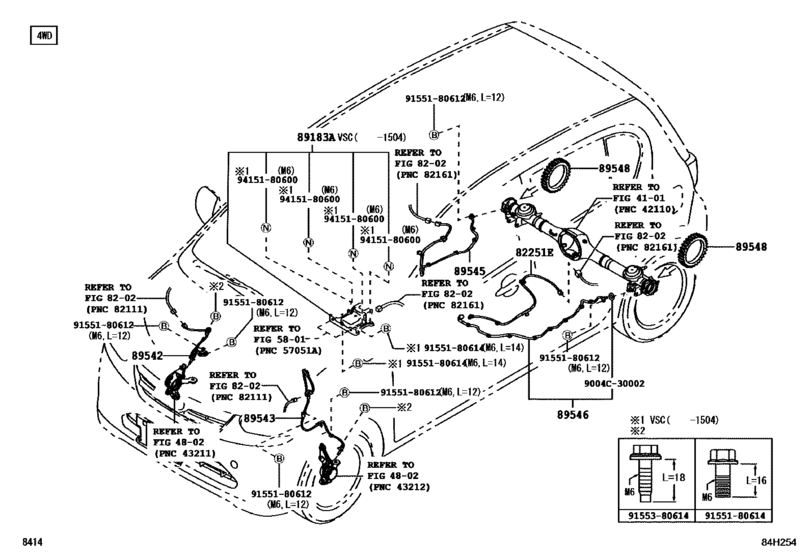

Abs & Vsc ([04.2012 - ] (1204- )LA310) Diagram Toyota PIXIS
- Year
- 2012 - 2018
- Sales region
- Japan
- Frame
- LA310A
- grade
- XF
- ENGINE
- KFVE
- Model
- PIXIS EPOCH
- From
- 04.2012
- Gear Shift Type
- CVT
- No.of Doors
- 5D
- Drive Train
- 4WD
- Vehicle Model
- PIXIS EPOCH
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
82251E
|
82251E
82251-B2160 Wire, Speed Sensor, Lh[04.2012 - 07.2013] LA310 |
82251-B2160 |
US $19.80 |
||
|
89183A
|
89183A
89180-B2010 Sensor, Yawrate[07.2013 - 04.2015] LA300,310..G,GF; LA300,310..L,LF,X,XF スマートアシストパック |
89180-B2010 |
US $1,065.79 |
||
|
89542
|
89542
89542-B2080 Sensor, Speed, Front Rh[04.2012 - 07.2013] LA300,310 |
89542-B2080 |
US $196.56 |
||
|
89543
|
89543
89543-B2080 Sensor, Speed, Front Lh[04.2012 - 07.2013] LA300,310 |
89543-B2080 |
US $196.56 |
||
|
89545
|
89545
89545-B2070 Sensor, Speed, Rear Rh[04.2012 - 07.2013] LA310 |
89545-B2070 |
US $196.56 |
||
|
89546
|
89546
89546-B2060 Sensor, Speed, Rear Lh[04.2012 - 07.2013] LA310 |
89546-B2060 |
US $196.56 |
||
|
89548
|
89548
89547-97506 Rotor, Skid Control Sensor[04.2012 - 07.2013] LA310 |
89547-97506 |
from US $57.96 |
||
|
9004C30002
|
9004C30002
9004C-30002 Ring, O (For Speed Sensor) |
9004C-30002 |
US $2.77 |
||
|
9155180612
|
9155180612
91551-80612 Bolt (For Front Differential Breather Plug Oil Deflector) |
91551-80612 |
from US $0.63 |
||
|
9155180614
|
9155180614
91551-80614 Bolt(For Vacuum Transmitting Pipe) |
91551-80614 |
from US $0.65 |
||
|
9155380614
|
9155380614
91553-80614 BOLT FLANGE |
91553-80614 |
US $1.08 |
||
|
9415180600
|
9415180600
94151-80600 Nut, Cap(For Cylinder Head Cover) |
94151-80600 |
from US $0.65 |
