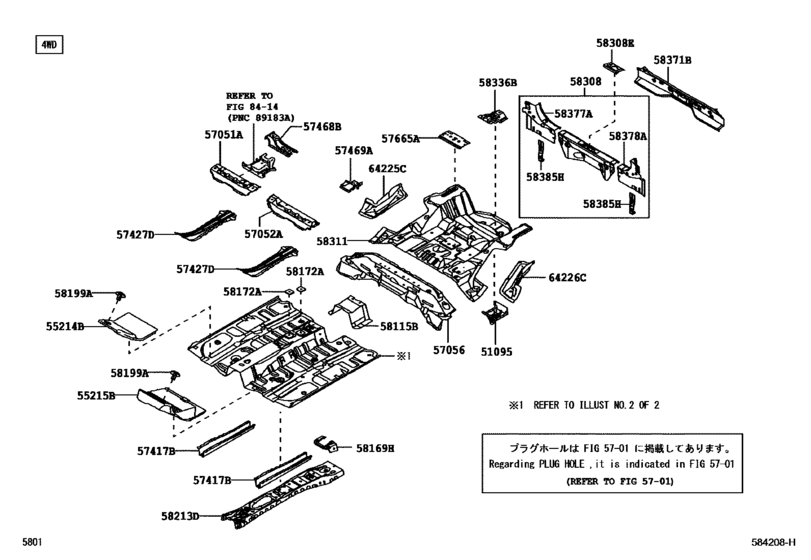

Floor Pan & Lower Back Panel ([04.2012 - ] 4WD (1204- )LA310) Diagram Toyota PIXIS
- Year
- 2012 - 2018
- Sales region
- Japan
- Frame
- LA310A
- grade
- LF
- ENGINE
- KFVE
- Model
- PIXIS EPOCH
- From
- 04.2012
- Gear Shift Type
- CVT
- No.of Doors
- 5D
- Drive Train
- 4WD
- Vehicle Model
- PIXIS EPOCH
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
51095
|
51095
51095-B2050 Hook, Transport, Rear[04.2012 - 07.2013] LA310 |
51095-B2050 |
US $36.84 |
||
|
55214B
|
55214B
55214-B2080 Pad, Dash Panel Insulator, No.2[04.2012 - 07.2013] LA300,310 |
55214-B2080 |
US $11.50 |
||
|
55215B
|
55215B
55215-B2080 Pad, Dash Panel Insulator, No.3[04.2012 - 07.2013] LA300,310 ポリスチレン発泡（白） |
55215-B2080 |
US $22.86 |
||
|
57051A
|
57051A
57051-B2160 Member Sub-Assy, Front Floor Cross, Rh[04.2012 - 07.2013] LA300,310 |
57051-B2160 |
US $94.64 |
||
|
57052A
|
57052A
57052-B2120 Member Sub-Assy, Front Floor Cross, Lh[04.2012 - 07.2013] LA300,310 |
57052-B2120 |
US $71.34 |
||
|
57052A
|
57052A
57052-B2210 Member Sub-Assy, Front Floor Cross, Lh[05.2015 -] LA300,310 |
57052-B2210 |
US $71.34 |
||
|
57056
|
57056
57053-B2240 Reinforcement Sub-Assy, Cross Member Floor, No.6[04.2012 - 07.2013] LA310 |
57053-B2240 |
US $142.69 |
||
|
57417B
|
57417B
57417-B2070 Reinforcement, Front Floor Under[04.2012 - 04.2013] LA300,310 |
57417-B2070 |
US $71.34 |
||
|
57417B
|
57417B
57417-B2080 Reinforcement, Front Floor Under[05.2013 - 07.2013] LA300,310 |
57417-B2080 |
US $71.34 |
||
|
57427D
|
57427D
57427-B2060 Reinforcement, Front Floor, No.3 Rh[04.2012 - 07.2013] LA300,310 |
57427-B2060 |
US $94.64 |
||
|
57468B
|
57468B
57468-B2020 Bracket, Front Seat, Rear[04.2012 - 07.2013] LA300,310 |
57468-B2020 |
US $39.75 |
||
|
57469A
|
57469A
57469-B2010 Bracket, Front Seat, Outside, Rear Lh[04.2012 - 07.2013] LA300,310 |
57469-B2010 |
US $19.66 |
||
|
57665A
|
57665A
57665-B2040 Reinforcement, Rear Floor Crossmember, No.2[04.2012 - 07.2013] LA310 |
57665-B2040 |
US $23.73 |
||
|
58115B
|
58115B
58114-B2010 Panel, Front Floor, Rear[04.2012 - 07.2013] LA310 |
58114-B2010 |
US $55.62 |
||
|
58169H
|
58169H
58169-B2060 Patch, Front Floor, Rear[04.2012 - 07.2013] LA310 |
58169-B2060 |
US $23.73 |
||
|
58172A
|
58172A
46521-B2010 Plate, Parking Brake Mounting[04.2012 - 07.2013] LA300,310 |
46521-B2010 |
US $5.10 |
||
|
58199A
|
58199A
58199-B2010-C0 Clip[04.2012 - 07.2013] LA300,310 BLACK |
58199-B2010-C0 |
US $2.77 |
||
|
58213D
|
58213D
58213-B2170 Reinforcement, Center Floor Panel[04.2012 - 07.2013] LA310 |
58213-B2170 |
US $119.39 |
||
|
58308
|
58308
58308-B2191 Panel Sub-Assy, Body Lower Back, Inner[04.2012 - 07.2013] LA300,310 ナンバープレート取付用ナット付き |
58308-B2191 |
US $185.60 |
||
|
58308E
|
58308E
64716-B2170-B0 Cover, Hole(For Lower Back)[04.2012 - 07.2013] LA300,310 DK.GRAY,TRIM1# |
64716-B2170-B0 |
US $17.81 |
||
|
58311
|
58311
58311-B2150 Pan, Rear Floor[04.2012 - 07.2013] LA310 |
58311-B2150 |
US $198.02 |
||
|
58336B
|
58336B
58336-B2060 Reinforcement, Rear Floor Pan[04.2012 - 07.2013] LA310 |
58336-B2060 |
US $39.75 |
||
|
58371B
|
58371B
58371-B2191 Panel, Body Lower Back, Outer[04.2012 - 07.2013] LA300,310 |
58371-B2191 |
US $150.88 |
||
|
58377A
|
58377A
61613-B2210 Panel, Body Lower Back, Rh[04.2012 - 07.2013] LA300,310 |
61613-B2210 |
US $55.62 |
||
|
58378A
|
58378A
61614-B2200 Panel, Body Lower Back, Lh[04.2012 - 07.2013] LA300,310 |
61614-B2200 |
US $55.62 |
||
|
58385H
|
58385H
52169-B2051 Bracket, Rear Bumper Cover, No.1[04.2012 - 07.2013] LA300,310 |
52169-B2051 |
US $16.74 |
||
|
64225C
|
64225C
64225-B2070 Patch, Rear Seat Set, Rh[04.2012 - 07.2013] LA300,310 |
64225-B2070 |
US $33.05 |
||
|
64226C
|
64226C
64226-B2070 Patch, Rear Seat Set, Lh[04.2012 - 07.2013] LA300,310 |
64226-B2070 |
US $33.05 |
