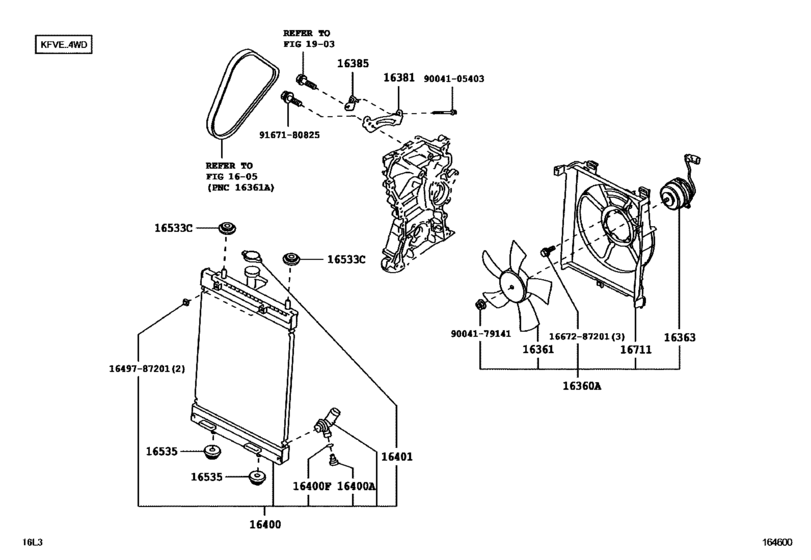

Radiator & Water Outlet ([04.2012 - 07.2013] ﾗｼﾞｴｰﾀ(4WD) (1204-1307)KFVE..LA310) Diagram Toyota PIXIS
- Year
- 2012 - 2018
- Sales region
- Japan
- Frame
- LA310A
- grade
- LF
- ENGINE
- KFVE
- Model
- PIXIS EPOCH
- From
- 04.2012
- Gear Shift Type
- CVT
- No.of Doors
- 5D
- Drive Train
- 4WD
- Vehicle Model
- PIXIS EPOCH
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
16360A
|
16360A
16360-B2141 Fan Assy, W/motor[04.2012 - 07.2013] KFVE..LA310 |
16360-B2141 |
US $301.34 |
||
|
16360A
|
16360A
16360-B2151 Fan Assy, W/motor[07.2013 -] KFVE..LA300,310 |
16360-B2151 |
US $463.32 |
||
|
16361
|
16361
16361-B2060 Fan[04.2012 - 07.2013] KFVE..LA300,310 |
16361-B2060 |
US $43.53 |
||
|
16363
|
16363
16363-B2030 Motor, Cooling Fan[04.2012 - 07.2013] KFVE..LA300,310 |
16363-B2030 |
US $248 |
||
|
16381
|
16381
16381-B2011 Bar, Fan Belt Adjusting[04.2012 - 07.2013] KFVE..LA300,310 |
16381-B2011 |
US $14.27 |
||
|
16385
|
16385
16385-B2021 Slider, Fan Belt Adjusting[04.2012 - 07.2013] KFVE..LA300,310 |
16385-B2021 |
US $8.01 |
||
|
16400
|
16400
16400-B2312 Radiator Assy[04.2012 - 07.2013] KFVE..LA310 |
16400-B2312 |
US $361.09 |
||
|
16400
|
16400
16400-B2370 Radiator Assy[07.2013 -] KFVE..LA300,310 |
16400-B2370 |
US $333.84 |
||
|
16400A
|
16400A
16417-B2010 Cock Sub-Assy, Radiator Drain[07.2013 -] KFVE..LA300,310 |
16417-B2010 |
US $6.99 |
||
|
16400A
|
16400A
16417-B2020 Cock Sub-Assy, Radiator Drain[04.2012 - 07.2013] KFVE..LA310 |
16417-B2020 |
US $6.99 |
||
|
16400F
|
16400F
16442-97201 Packing(For Radiator Drain Cock)[07.2013 -] KFVE..LA300,310 |
16442-97201 |
from US $2.15 |
||
|
16400F
|
16400F
16442-B2010 Packing(For Radiator Drain Cock)[04.2012 - 07.2013] KFVE..LA310 |
16442-B2010 |
US $2.33 |
||
|
16401
|
16401
16401-87211 Cap Sub-Assy, Radiator[07.2013 -] KFVE..LA300,310 |
16401-87211 |
US $15.05 |
||
|
16401
|
16401
16401-B2010 Cap Sub-Assy, Radiator[04.2012 - 07.2013] KFVE..LA310 |
16401-B2010 |
US $15.05 |
||
|
16533C
|
16533C
90044-80621 Grommet(For Radiator Support)[04.2012 - 07.2013] KFVE..LA300,310 |
90044-80621 |
US $4.84 |
||
|
16535
|
16535
90044-80592 Grommet[04.2012 - 07.2013] KFVE..LA300,310 |
90044-80592 |
from US $4.92 |
||
|
16711
|
16711
16711-B2080 Shroud, Fan[04.2012 - 07.2013] KFVE..LA310 |
16711-B2080 |
US $78.79 |
||
|
16711
|
16711
16711-B2090 Shroud, Fan[07.2013 -] KFVE..LA300,310 |
16711-B2090 |
US $103.32 |
||
|
1649787201
|
1649787201
16497-87201 Inlet Sub-assy |
16497-87201 |
US $2.77 |
||
|
1667287201
|
1667287201
16672-87201
Bolt, Radiator Side Support Plate
|
16672-87201 |
— | ||
|
9004105403
|
9004105403
90041-05403 New Genuine Part |
90041-05403 |
US $5.91 |
||
|
9004179141
|
9004179141
90041-79141
New Genuine Part
|
90041-79141 |
— | ||
|
9167180825
|
9167180825
91671-80825 Bolt, Compressor, No.1 |
91671-80825 |
from US $0.76 |
