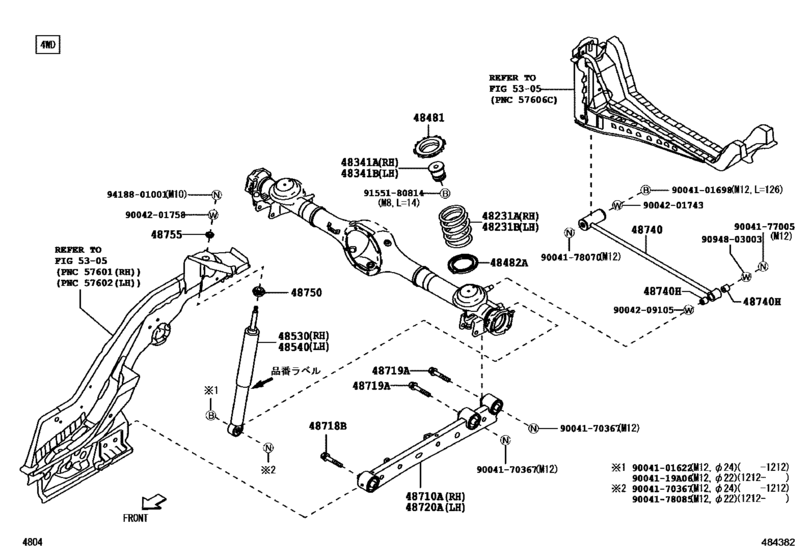

Rear Spring & Shock Absorber ([04.2012 - ] 4WD (1204- )LA310) Diagram Toyota PIXIS
- Year
- 2012 - 2018
- Sales region
- Japan
- Frame
- LA310A
- grade
- LF
- ENGINE
- KFVE
- Model
- PIXIS EPOCH
- From
- 04.2012
- Gear Shift Type
- CVT
- No.of Doors
- 5D
- Drive Train
- 4WD
- Vehicle Model
- PIXIS EPOCH
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
48231A
|
48231A
48231-B2A30 Spring, Coil, Rear Rh[04.2012 - 07.2013] LA310 |
48231-B2A30 |
US $88.82 |
||
|
48231B
|
48231B
48231-B2A30 Spring, Coil, Rear Rh[04.2012 - 07.2013] LA310 |
48231-B2A30 |
US $88.82 |
||
|
48341A
|
48341A
48341-B2020 Bumper, Rear Spring, No.1 Rh[04.2012 - 07.2013] LA310 |
48341-B2020 |
US $25.54 |
||
|
48341B
|
48341B
48341-B2020 Bumper, Rear Spring, No.1 Rh[04.2012 - 07.2013] LA310 |
48341-B2020 |
US $25.54 |
||
|
48481
|
48481
48481-B2030 Seat, Rear Spring, Upper[04.2012 - 07.2013] LA310 |
48481-B2030 |
US $11.11 |
||
|
48482A
|
48482A
48482-B2040 Seat, Rear Spring, Lower[04.2012 - 07.2013] LA310 |
48482-B2040 |
US $9.32 |
||
|
48530
|
48530
48530-B2440 Absorber Assy, Shock, Rear Rh[04.2012 - 11.2012] LA310 マーク ４８５３０−Ｂ２４４０,品番ラベル有り |
48530-B2440 |
US $88.82 |
||
| replacement | |||||
|
48530
|
48530
48530-B2640 Absorber Assy, Shock, Rear Rh[04.2012 - 11.2012] LA310 マーク ４８５３０−Ｂ２４４０,品番ラベル有り |
48530-B2640 |
US $109.56 |
||
|
48530
|
48530
48530-B2443 Absorber Assy, Shock, Rear Rh[12.2012 - 07.2013] LA310 マーク ４８５３０−Ｂ２４４３,品番ラベル有り |
48530-B2443 |
US $93.18 |
||
| replacement | |||||
|
48530
|
48530
48530-B2640 Absorber Assy, Shock, Rear Rh[12.2012 - 07.2013] LA310 マーク ４８５３０−Ｂ２４４３,品番ラベル有り |
48530-B2640 |
US $109.56 |
||
|
48530
|
48530
48530-B2640 Absorber Assy, Shock, Rear Rh[10.2015 -] LA310 マーク ４８５３０−Ｂ２６４０,品番ラベル有り |
48530-B2640 |
US $109.56 |
||
|
48540
|
48540
48530-B2440 Absorber Assy, Shock, Rear Rh[04.2012 - 11.2012] LA310 マーク ４８５３０−Ｂ２４４０,品番ラベル有り |
48530-B2440 |
US $88.82 |
||
| replacement | |||||
|
48540
|
48540
48530-B2640 Absorber Assy, Shock, Rear Rh[04.2012 - 11.2012] LA310 マーク ４８５３０−Ｂ２４４０,品番ラベル有り |
48530-B2640 |
US $109.56 |
||
|
48540
|
48540
48530-B2443 Absorber Assy, Shock, Rear Rh[12.2012 - 07.2013] LA310 マーク ４８５３０−Ｂ２４４３,品番ラベル有り |
48530-B2443 |
US $93.18 |
||
| replacement | |||||
|
48540
|
48540
48530-B2640 Absorber Assy, Shock, Rear Rh[12.2012 - 07.2013] LA310 マーク ４８５３０−Ｂ２４４３,品番ラベル有り |
48530-B2640 |
US $109.56 |
||
|
48540
|
48540
48530-B2640 Absorber Assy, Shock, Rear Rh[10.2015 -] LA310 マーク ４８５３０−Ｂ２６４０,品番ラベル有り |
48530-B2640 |
US $109.56 |
||
|
48710A
|
48710A
48710-B2210 Arm Assy, Rear Suspension, No.1 Rh[04.2012 - 07.2013] LA310 |
48710-B2210 |
US $129.58 |
||
| replacement | |||||
|
48710A
|
48710A
48710-B2211 Arm Assy, Rear Suspension, No.1 Rh[04.2012 - 07.2013] LA310 |
48710-B2211 |
US $129.58 |
||
|
48710A
|
48710A
48710-B2211 Arm Assy, Rear Suspension, No.1 Rh[08.2016 -] LA310 |
48710-B2211 |
US $129.58 |
||
|
48718B
|
48718B
48718-B2020 Shaft, Rear Suspention Lower Arm, No.1[04.2012 - 07.2013] LA310 |
48718-B2020 |
US $8.24 |
||
|
48719A
|
48719A
48719-B2020 Shaft, Rear Suspention Lower Arm, No.2[04.2012 - 07.2013] LA310 |
48719-B2020 |
US $12.36 |
||
|
48719A
|
48719A
48719-B2021 Shaft, Rear Suspention Lower Arm, No.2[09.2016 -] LA310 |
48719-B2021 |
US $7.88 |
||
|
48720A
|
48720A
48720-B2050 Arm Assy, Rear Suspension, No.1 Lh[04.2012 - 07.2013] LA310 |
48720-B2050 |
US $129.58 |
||
| replacement | |||||
|
48720A
|
48720A
48720-B2051 Arm Assy, Rear Suspension, No.1 Lh[04.2012 - 07.2013] LA310 |
48720-B2051 |
US $157.44 |
||
|
48720A
|
48720A
48720-B2051 Arm Assy, Rear Suspension, No.1 Lh[08.2016 -] LA310 |
48720-B2051 |
US $157.44 |
||
|
48740
|
48740
48740-B2020 Rod Assy, Rear Lateral Control[04.2012 - 07.2013] LA310 |
48740-B2020 |
US $131.20 |
||
|
48740H
|
48740H
90043-85102 Bush, No.1(For Rear Lateral Control Rod)[04.2012 - 07.2013] LA310 |
90043-85102 |
US $6.63 |
||
|
48750
|
48750
48750-B2040 Support Assy, Rear Suspension[04.2012 - 07.2013] LA310 |
48750-B2040 |
US $20.66 |
||
|
48755
|
48755
48755-B2020 Support, Rear Suspension[04.2012 - 07.2013] LA310 |
48755-B2020 |
US $8.96 |
||
|
9004119A06
|
9004119A06
90041-19A06 Bolt, Union(For Rear Shock Absorber Rh) |
90041-19A06 |
US $6.27 |
||
|
9004101622
|
9004101622
90041-01622 Bolt, Union(For Rear Shock Absorber Rh) |
90041-01622 |
US $8.96 |
||
|
9004101698
|
9004101698
90041-01698 Bolt, Hexagon(For Lateral Control Rod) |
90041-01698 |
US $10.04 |
||
|
9004170367
|
9004170367
90041-70367 Nut(For Rear Suspension Arm) |
90041-70367 |
US $1.79 |
||
|
9004177005
|
9004177005
90041-77005 Nut |
90041-77005 |
US $3.23 |
||
|
9004178070
|
9004178070
90041-78070 Nut |
90041-78070 |
US $3.76 |
||
|
9004178085
|
9004178085
90041-78085 Nut(For Rear Support To Rear Shock Absorber) |
90041-78085 |
from US $0.76 |
||
|
9004201743
|
9004201743
90042-01743 Washer, Plate, No.1(For Rear Lateral Control Rod) |
90042-01743 |
US $3.94 |
||
|
9004201758
|
9004201758
90042-01758 Washer, Rear Shock Absorber Cushion, No.1 Rh |
90042-01758 |
US $4.48 |
||
|
9004209105
|
9004209105
90042-09105 Washer, Front Shock Absorber Cushion, No.1 |
90042-09105 |
US $1.97 |
||
|
9094803003
|
9094803003
90948-03003 Retainer, Cushion, No.1(For Front Shock Absorber) |
90948-03003 |
from US $1.22 |
||
|
9155180814
|
9155180814
91551-80814 Bolt, Hexagon (For Rear Spring Seat Bolt) |
91551-80814 |
US $1.43 |
||
|
9418801001
|
9418801001
94188-01001 Nut(For Rear Support To Rear Shock Absorber Rh) |
94188-01001 |
US $2.51 |
||
