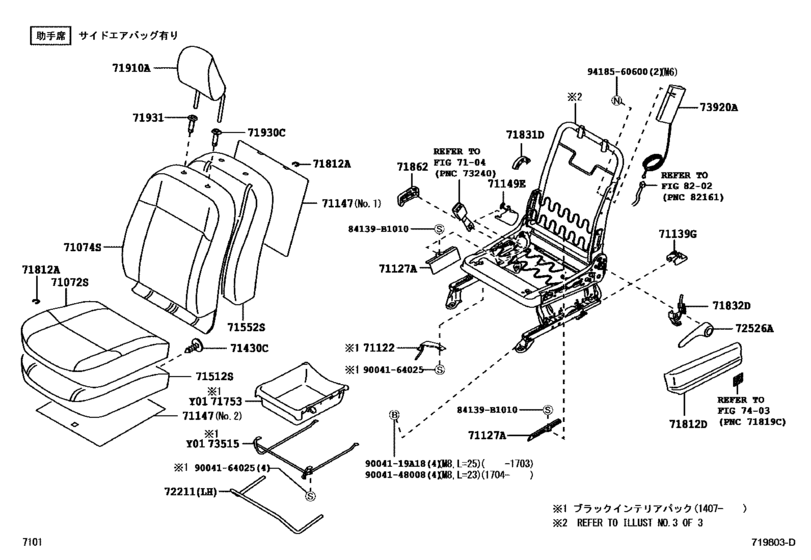

Front Seat & Seat Track ([04.2012 - ] ｼﾞｮｼｭｾｷ,ｱﾘ(ｻｲﾄﾞｴｱﾊﾞｯｸﾞ) (1204- )G,GF) Diagram Toyota PIXIS
- Year
- 2012 - 2018
- Sales region
- Japan
- Frame
- LA310A
- grade
- GF
- ENGINE
- KFVE
- Model
- PIXIS EPOCH
- From
- 04.2012
- Gear Shift Type
- CVT
- No.of Doors
- 5D
- Drive Train
- 4WD
- Vehicle Model
- PIXIS EPOCH
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
71072S
|
71072S
71072-B2740-E0 Cover, Front Seat Cushion, Lh(For Separate Type)[04.2012 - 07.2013] LA300,310 BEIGE,TRIM1# |
71072-B2740-E0 |
US $227.14 |
||
|
71072S
|
71072S
71072-B2D90-B0 Cover, Front Seat Cushion, Lh(For Separate Type)[07.2013 -] LA300,310..G,GF GRAY,TRIM1# |
71072-B2D90-B0 |
US $206.75 |
||
|
71072S
|
71072S
71072-B2D90-B1 Cover, Front Seat Cushion, Lh(For Separate Type)[07.2014 -] LA300,310..G,GF ブラックインテリアパック,DARK GRAY,TRIM1# |
71072-B2D90-B1 |
US $206.75 |
||
|
71074S
|
71074S
71074-B2U20-E0 Cover, Front Seat Back, Lh(For Separate Type)[04.2012 - 07.2013] LA300,310..G,GF BEIGE,TRIM1# |
71074-B2U20-E0 |
US $278.10 |
||
|
71074S
|
71074S
71074-B2W00-B0 Cover, Front Seat Back, Lh(For Separate Type)[07.2013 -] LA300,310..G,GF GRAY,TRIM1# |
71074-B2W00-B0 |
US $251.89 |
||
|
71074S
|
71074S
71074-B2W00-B1 Cover, Front Seat Back, Lh(For Separate Type)[07.2014 -] LA300,310..G,GF ブラックインテリアパック,DARK GRAY,TRIM1# |
71074-B2W00-B1 |
US $251.89 |
||
|
71122
|
71122
71122-B2030 Bracket, Front Seat Cushion, Lh[07.2014 -] LA300,310..G,GF ブラックインテリアパック |
71122-B2030 |
US $15 |
||
|
71127A
|
71127A
71127-B2010 Plate, Fr0Nt Seat Cushion Cover Set[12.2013 -] LA300,310 |
71127-B2010 |
US $4.08 |
||
|
71127A
|
71127A
71127-BZ010 Plate, Fr0Nt Seat Cushion Cover Set[04.2013 - 07.2013] LA300,310 |
71127-BZ010 |
US $4.08 |
||
|
71139G
|
71139G
71139-B2160-B0 Cover, Front Seat Leg[04.2012 - 07.2013] LA300,310 DK.GRAY,TRIM1# |
71139-B2160-B0 |
US $7.28 |
||
|
71139G
|
71139G
71139-B2160-C0 Cover, Front Seat Leg[11.2016 -] LA300,310 BLACK,TRIM1# |
71139-B2160-C0 |
US $7.28 |
||
|
71147
|
71147
71147-B1020 Silencer, Seat Spring[04.2012 - 07.2013] LA300,310 ＮＯ．２ |
71147-B1020 |
US $10.93 |
||
|
71147
|
71147
71147-B2030 Silencer, Seat Spring[04.2012 - 07.2013] LA300,310 ＮＯ．１ |
71147-B2030 |
US $8.15 |
||
|
71149E
|
71149E
71149-B2330-B0 Cover, Front Seat Leg, Inner (For Lh Seat)[04.2012 - 07.2013] LA300,310 DK.GRAY,TRIM1# |
71149-B2330-B0 |
US $10.34 |
||
|
71149E
|
71149E
71149-B2330-C0 Cover, Front Seat Leg, Inner (For Lh Seat)[11.2016 -] LA300,310 BLACK,TRIM1# |
71149-B2330-C0 |
US $10.34 |
||
|
71430C
|
71430C
90044-68185-B1 Clip(For Rear Seat)[04.2012 - 07.2013] LA300,310..G,GF DK.GRAY |
90044-68185-B1 |
US $2.87 |
||
|
71512S
|
71512S
71501-B2830 Pad, Front Seat Cushion, Rh(For Separate Type)[04.2012 - 04.2013] LA300,310 ＰＮＣ．７１１２７Ｂ無し |
71501-B2830 |
US $106.29 |
||
|
71512S
|
71512S
71501-B2831 Pad, Front Seat Cushion, Rh(For Separate Type)[04.2013 - 07.2013] LA300,310 ＰＮＣ．７１１２７Ｂ有り |
71501-B2831 |
US $116.48 |
||
|
71512S
|
71512S
71501-B2880 Pad, Front Seat Cushion, Rh(For Separate Type)[07.2013 -] LA300,310 ＰＮＣ．７１１２７Ｂ無し |
71501-B2880 |
US $94.64 |
||
|
71552S
|
71552S
71506-B2A40 Pad, Front Seat Back, Lh(For Separate Type)[04.2012 - 07.2013] LA300,310..G,GF |
71506-B2A40 |
US $106.29 |
||
|
71552S
|
71552S
71506-B2B50 Pad, Front Seat Back, Lh(For Separate Type)[07.2013 -] LA300,310..G,GF |
71506-B2B50 |
US $94.64 |
||
|
71753
|
71753
71753-B2010 Tray, Front Seat Under[07.2014 -] LA300,310..G,GF ブラックインテリアパック |
71753-B2010 |
US $27.26 |
||
|
71812A
|
71812A
71812-87201 Clip (For Front Seat Cushion Cover)[04.2012 - 07.2013] LA300,310 |
71812-87201 |
US $1.97 |
||
|
71812D
|
71812D
71812-B2380-B0 Shield, Front Seat Cushion, Lh[04.2012 - 07.2013] LA300,310..G,GF WARM GRAY,TRIM1# |
71812-B2380-B0 |
US $29.27 |
||
|
71831D
|
71831D
71832-B2110-B1 Cover, Front Seat Hinge, Rh[04.2012 - 07.2013] LA300,310 DK.GRAY,TRIM1# |
71832-B2110-B1 |
US $4.08 |
||
|
71832D
|
71832D
71831-B2120-B1 Cover, Front Seat Hinge, Lh[04.2012 - 07.2013] LA300,310 DK.GRAY,TRIM1# |
71831-B2120-B1 |
US $7.28 |
||
|
71862
|
71862
71862-B2100-B0 Shield, Front Seat Cushion, Inner Lh[04.2012 - 07.2013] LA300,310 WARM GRAY,TRIM1# |
71862-B2100-B0 |
US $10.34 |
||
|
71910A
|
71910A
71910-B2B70-E0 Headrest Assy, Front Seat[04.2012 - 07.2013] LA300,310 BEIGE,TRIM1# |
71910-B2B70-E0 |
US $119.39 |
||
|
71910A
|
71910A
71910-B2D90-B0 Headrest Assy, Front Seat[07.2013 - 07.2014] LA300,310..G,GF GRAY,TRIM1# |
71910-B2D90-B0 |
US $119.39 |
||
|
71910A
|
71910A
71910-B2D90-B1 Headrest Assy, Front Seat[07.2014 -] LA300,310..G,GF DARK GRAY,TRIM10; LA300,310..X,XF ブラックインテリアパック,DARK GRAY,TRIM1# |
71910-B2D90-B1 |
US $119.39 |
||
|
71930C
|
71930C
71930-B2010-B0 Support Assy, Rear Seat Headrest[07.2014 -] LA300,310..G,GF,X,XF DK.GRAY,TRIM10 |
71930-B2010-B0 |
US $10.73 |
||
|
71930C
|
71930C
71930-B2010-E0 Support, Front Seat Headrest, Lh[04.2012 - 07.2013] LA300,310 BEIGE,TRIM1# |
71930-B2010-E0 |
US $10.73 |
||
|
71931
|
71931
71931-B2010-B0 Support, Front Seat Headrest[07.2014 -] LA300,310..G,GF,X,XF ロック無,DK.GRAY,TRIM10 |
71931-B2010-B0 |
US $6.60 |
||
|
71931
|
71931
71931-B2010-E0 Support, Front Seat Headrest[04.2012 - 07.2013] LA300,310 ロック無,BEIGE,TRIM1# |
71931-B2010-E0 |
US $6.60 |
||
|
72211
|
72211
72211-B2090 Handle, Seat Track Adjusting[04.2012 - 07.2013] LA300,310 右側 |
72211-B2090 |
US $21.40 |
||
|
72211
|
72211
72212-B2100 Handle, Seat Track Adjusting[04.2012 - 07.2013] LA300,310 左側 |
72212-B2100 |
US $21.40 |
||
|
72526A
|
72526A
72526-B2080-B0 Handle, Reclining Adjuster Release, Lh[04.2012 - 07.2013] LA300,310 WARM GRAY,TRIM1# |
72526-B2080-B0 |
US $16.74 |
||
| replacement | |||||
|
72526A
|
72526A
72526-B2111-B1 Handle, Reclining Adjuster Release, Lh[04.2012 - 07.2013] LA300,310 WARM GRAY,TRIM1# |
72526-B2111-B1 |
US $16.74 |
||
|
72526A
|
72526A
72526-B2111-B1 Handle, Reclining Adjuster Release, Lh[01.2016 -] LA300,310 WARM GRAY,TRIM1# |
72526-B2111-B1 |
US $16.74 |
||
|
73515
|
73515
73507-B2090 Rail, Front Seat Under Tray, No.1[07.2014 -] LA300,310..G,GF ブラックインテリアパック |
73507-B2090 |
US $26.38 |
||
|
73920A
|
73920A
73920-B1010 Air Bag Assy, Front Seat, Lh[04.2012 - 07.2013] LA300,310..G,GF |
73920-B1010 |
US $394.58 |
||
|
84139B1010
|
84139B1010
84139-B1010 New Genuine Part |
84139-B1010 |
US $2.15 |
||
|
9004119A18
|
9004119A18
90041-19A18 New Genuine Part |
90041-19A18 |
US $3.05 |
||
|
9004164025
|
9004164025
90041-64025 New Genuine Part |
90041-64025 |
US $1.54 |
||
|
9418560600
|
9418560600
94185-60600 Nut, Wire Adjusting, No.1 |
94185-60600 |
from US $0.70 |
||
