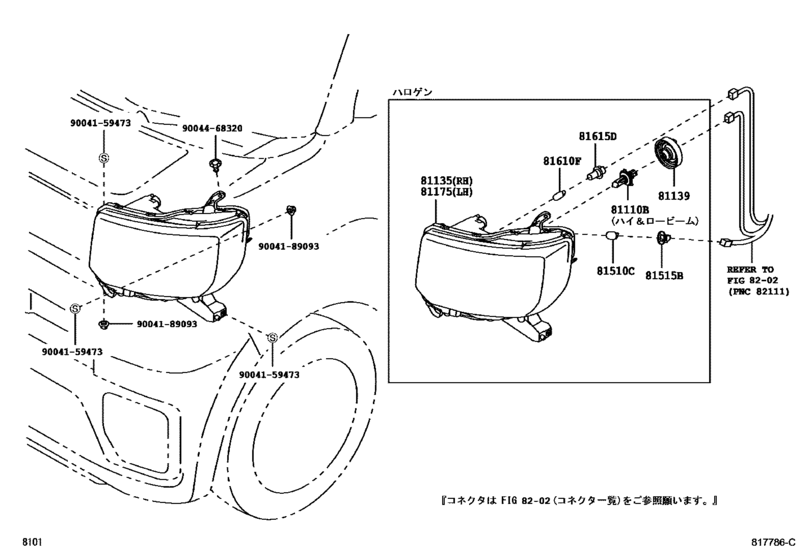

Headlamp ([05.2016 - ] (1605- )NTBO) Diagram Toyota PIXIS
- Year
- 2015 - 2018
- Sales region
- Japan
- Frame
- LA700A
- grade
- D
- ENGINE
- KFVE
- TRANSMISSION
- CVT
- Model
- PIXIS MEGA
- From
- 07.2015
- Drive Train
- 2WD
- Vehicle Model
- PIXIS MEGA
- Fuel Induction
- NTBO
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
81110B
|
81110B
90049-51088 Bulb(For Headlamp, No.1)[05.2016 -] LA700,710..NTBO １２Ｖ ６０／５５Ｗ |
90049-51088 |
US $30.24 |
||
|
81110B
|
81110B
90049-51142 Bulb(For Headlamp, No.1)[07.2015 - 05.2016] LA700,710 １２Ｖ ６０Ｗ |
90049-51142 |
US $29.12 |
||
|
81135
|
81135
81130-B2550 Unit Assy, Headlamp, Rh[07.2015 - 05.2016] LA700,710 |
81130-B2550 |
US $950.77 |
||
| replacement | |||||
|
81135
|
81135
81130-B2680 Unit Assy, Headlamp, Rh[07.2015 - 05.2016] LA700,710 |
81130-B2680 |
US $928.20 |
||
|
81135
|
81135
81130-B2630 Unit Assy, Headlamp, Rh[05.2016 -] LA700,710..NTBO |
81130-B2630 |
US $458.64 |
||
|
81135
|
81135
81130-B2680 Unit Assy, Headlamp, Rh[12.2016 -] LA700,710..TBO; LA700,710..NTBO ヘッドランプ（ＬＥＤ／オートレベリング有り） |
81130-B2680 |
US $928.20 |
||
|
81139
|
81139
81139-B2030 Cover, Headlamp Socket[05.2016 -] LA700,710..NTBO |
81139-B2030 |
US $16.84 |
||
|
81175
|
81175
81170-B2560 Unit Assy, Headlamp, Lh[07.2015 - 05.2016] LA700,710 |
81170-B2560 |
US $950.77 |
||
| replacement | |||||
|
81175
|
81175
81170-B2690 Unit Assy, Headlamp, Lh[07.2015 - 05.2016] LA700,710 |
81170-B2690 |
US $928.20 |
||
|
81175
|
81175
81170-B2640 Unit Assy, Headlamp, Lh[05.2016 -] LA700,710..NTBO |
81170-B2640 |
US $458.64 |
||
|
81175
|
81175
81170-B2690 Unit Assy, Headlamp, Lh[12.2016 -] LA700,710..TBO; LA700,710..NTBO ヘッドランプ（ＬＥＤ／オートレベリング有り） |
81170-B2690 |
US $928.20 |
||
|
81510C
|
81510C
90049-51143 Bulb (For Front Turn Signal Lamp)[07.2015 - 05.2016] LA700,710 １２Ｖ ２１Ｗ |
90049-51143 |
US $5.91 |
||
|
81510C
|
81510C
90049-51148 Bulb (For Front Turn Signal Lamp)[05.2016 -] LA700,710..NTBO １２Ｖ ２１Ｗ，アンバー |
90049-51148 |
US $6.81 |
||
|
81515B
|
81515B
81179-97401 Cover, Headlamp Socket[05.2016 -] LA700,710..NTBO |
81179-97401 |
US $13.76 |
||
|
81610F
|
81610F
90049-51183 Bulb(For Clearance Lamp)[05.2016 -] LA700,710..NTBO １２Ｖ ５Ｗ |
90049-51183 |
US $2.15 |
||
|
81615D
|
81615D
81125-B4010 Socket, Clearance Lamp[05.2016 -] LA700,710..NTBO |
81125-B4010 |
US $13.25 |
||
|
9004159473
|
9004159473
90041-59473 New Genuine Part |
90041-59473 |
US $2.15 |
||
|
9004189093
|
9004189093
90041-89093 New Genuine Part |
90041-89093 |
US $2.33 |
||
|
9004468320
|
9004468320
90044-68320
Clip, Engine Under Cover, No.2
|
90044-68320 |
— | ||
| replacement | |||||
|
9004468320
|
9004468320
90044-68378 CLIP |
90044-68378 |
from US $0.57 |
||
