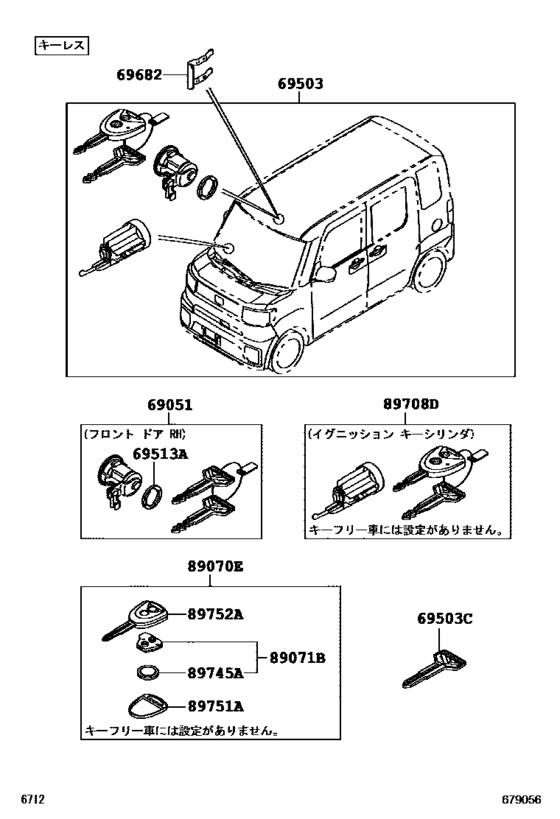

Lock Cylinder Set ([05.2016 - ] ｷｰﾚｽ (1605- )D) Diagram Toyota PIXIS
- Year
- 2015 - 2018
- Sales region
- Japan
- Frame
- LA700A
- grade
- D
- ENGINE
- KFVE
- TRANSMISSION
- CVT
- Model
- PIXIS MEGA
- From
- 07.2015
- Drive Train
- 2WD
- Vehicle Model
- PIXIS MEGA
- Fuel Induction
- NTBO
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
69051
|
69051
69051-B2250 Cylinder & Key Set, Door Lock, Rh[05.2016 -] LA700..D |
69051-B2250 |
US $39.02 |
||
|
69051
|
69051
69051-B2280 Cylinder & Key Set, Door Lock, Rh[07.2015 - 05.2016] LA700..D |
69051-B2280 |
US $39.02 |
||
|
69503
|
69503
69005-B2C20 Cylinder Set, Lock[07.2015 - 05.2016] LA700..D |
69005-B2C20 |
US $192.19 |
||
|
69503
|
69503
69005-B2E00 Cylinder Set, Lock[05.2016 -] LA700..D |
69005-B2E00 |
US $192.19 |
||
|
69503C
|
69503C
90999-00153 Key, Blank[07.2015 - 05.2016] LA700..D |
90999-00153 |
from US $8.74 |
||
|
69513A
|
69513A
69513-87201 Pad, Door Cylinder[07.2015 - 05.2016] LA700..D |
69513-87201 |
US $3.23 |
||
|
69682
|
69682
69682-97202 Retainer, Lock Cylinder[07.2015 - 05.2016] LA700,710 |
69682-97202 |
US $6.27 |
||
|
89070E
|
89070E
89070-B1022 Transmitter Assy, Door Control[07.2015 - 05.2016] LA700..D |
89070-B1022 |
US $172.80 |
||
|
89070E
|
89070E
89070-B1070 Transmitter Assy, Door Control[05.2016 -] LA700..D |
89070-B1070 |
US $160.72 |
||
|
89071B
|
89071B
89071-B1021 Module Set, Transmitter Sub-Assy, Door Control[07.2015 - 05.2016] LA700..D |
89071-B1021 |
US $129.56 |
||
|
89071B
|
89071B
89071-B2070 Module Set, Transmitter Sub-Assy, Door Control[05.2016 -] LA700..D |
89071-B2070 |
US $116.44 |
||
|
89708D
|
89708D
89708-B1110 Cylinder Set, Lock W/transponder Key Transmitter[05.2016 -] LA700..D |
89708-B1110 |
US $176.18 |
||
|
89745A
|
89745A
89745-B2010 Battery, Transmitter[07.2015 - 05.2016] LA700..D ＣＲ１６１６ |
89745-B2010 |
US $7.88 |
||
|
89745A
|
89745A
89745-B2050 Battery, Transmitter[05.2016 -] LA700..D ＣＲ１６２０ |
89745-B2050 |
US $6.09 |
||
|
89751A
|
89751A
89751-B1050 Cover, Transmitter Housing[05.2016 -] LA700..D |
89751-B1050 |
US $11.83 |
||
|
89751A
|
89751A
89751-B4020 Cover, Transmitter Housing[07.2015 - 05.2016] LA700..D |
89751-B4020 |
US $13.26 |
||
|
89752A
|
89752A
89752-B1010 Case, Transmitter Housing[07.2015 - 05.2016] LA700..D |
89752-B1010 |
US $29.23 |
||
|
89752A
|
89752A
89752-B1050 Case, Transmitter Housing[05.2016 -] LA700..D |
89752-B1050 |
US $27.05 |
