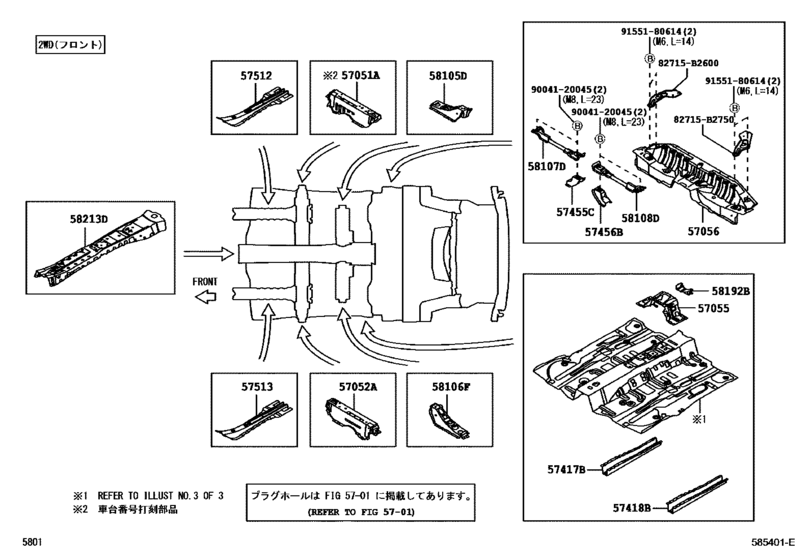

Floor Pan & Lower Back Panel ([07.2015 - ] (1507- )LA700) Diagram Toyota PIXIS
- Year
- 2015 - 2016
- Sales region
- Japan
- Frame
- LA700A
- grade
- X
- ENGINE
- KFVET
- TRANSMISSION
- CVT
- Model
- PIXIS MEGA
- From
- 07.2015
- To
- 05.2016
- Drive Train
- 2WD
- Vehicle Model
- PIXIS MEGA
- Fuel Induction
- TBO
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
57051A
|
57051A
57051-B2230 Member Sub-Assy, Front Floor Cross, Rh[07.2015 - 05.2016] LA700,710 |
57051-B2230 |
US $119.39 |
||
|
57052A
|
57052A
57052-B2180 Member Sub-Assy, Front Floor Cross, Lh[07.2015 - 05.2016] LA700,710 |
57052-B2180 |
US $119.39 |
||
|
57055
|
57055
57055-B2140 Reinforcet Sub-Assy, Cross Member Floor, No.5[07.2015 - 05.2016] LA700 |
57055-B2140 |
US $94.64 |
||
|
57056
|
57056
57053-B2080 Reinforcement Sub-Assy, Cross Member Floor, No.6[07.2015 - 05.2016] LA700 |
57053-B2080 |
US $198.02 |
||
|
57417B
|
57417B
57417-B2080 Reinforcement, Front Floor Under[07.2015 - 05.2016] LA700,710 |
57417-B2080 |
US $71.34 |
||
|
57418B
|
57418B
57417-B2080 Reinforcement, Front Floor Under[07.2015 - 05.2016] LA700,710 |
57417-B2080 |
US $71.34 |
||
|
57455C
|
57455C
57455-B2030 Bracket, Front Seat Mounting, Outside Rh[07.2015 - 05.2016] LA700,710 |
57455-B2030 |
US $31.60 |
||
|
57456B
|
57456B
57455-B2030 Bracket, Front Seat Mounting, Outside Rh[07.2015 - 05.2016] LA700,710 |
57455-B2030 |
US $31.60 |
||
|
57512
|
57512
57427-B2030 Reinforcement, Front Floor, Rh[07.2015 - 05.2016] LA700,710 |
57427-B2030 |
US $119.39 |
||
|
57513
|
57513
57427-B2030 Reinforcement, Front Floor, Rh[07.2015 - 05.2016] LA700,710 |
57427-B2030 |
US $119.39 |
||
|
58105D
|
58105D
58105-B2100 Retainer Sub-Assy, Seat Rail, Rear Rh[07.2015 - 05.2016] LA700,710 |
58105-B2100 |
US $71.34 |
||
|
58106F
|
58106F
58106-B2050 Bracket Sub-Assy, Front Seat Mounting, Outside Lh[07.2015 - 05.2016] LA700,710 |
58106-B2050 |
US $71.34 |
||
|
58107D
|
58107D
58107-B2040 Reinforce Sub-Assy, Front Cross To Front Panel, Rh[07.2015 - 05.2016] LA700,710 |
58107-B2040 |
US $71.34 |
||
|
58108D
|
58108D
58107-B2040 Reinforce Sub-Assy, Front Cross To Front Panel, Rh[07.2015 - 05.2016] LA700,710 |
58107-B2040 |
US $71.34 |
||
|
58192B
|
58192B
58194-B2050 Plate, Front Floor, Rear[07.2015 - 05.2016] LA700 |
58194-B2050 |
US $11.21 |
||
|
58213D
|
58213D
58213-B2270 Reinforcement, Center Floor Panel[07.2015 - 05.2016] LA700,710 |
58213-B2270 |
US $167.44 |
||
|
82715B2600
|
82715B2600
82715-B2600 Bracket,wiring Harness Clamp |
82715-B2600 |
US $19.80 |
||
|
82715B2750
|
82715B2750
82715-B2750 Bracket,wiring Harness Clamp |
82715-B2750 |
US $19.80 |
||
|
9004120045
|
9004120045
90041-20045 New Genuine Part |
90041-20045 |
US $2.48 |
||
|
9155180614
|
9155180614
91551-80614 Bolt(For Vacuum Transmitting Pipe) |
91551-80614 |
from US $0.65 |
