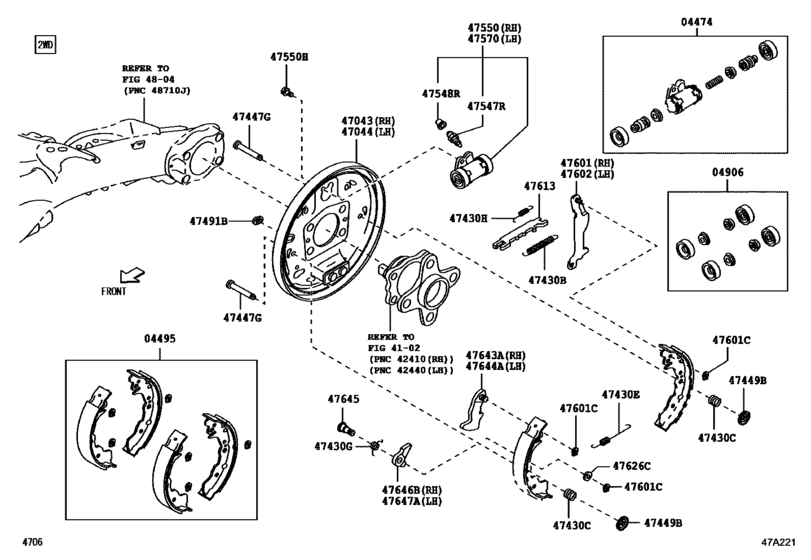

Rear Drum Brake Wheel Cylinder & Backing Plate ([07.2015 - 05.2016] 2WD (1507-1605)LA700) Diagram Toyota PIXIS
- Year
- 2015 - 2018
- Sales region
- Japan
- Frame
- LA700A
- grade
- L
- ENGINE
- KFVE
- TRANSMISSION
- CVT
- Model
- PIXIS MEGA
- From
- 07.2015
- Drive Train
- 2WD
- Vehicle Model
- PIXIS MEGA
- Fuel Induction
- NTBO
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
04474
|
04474
04474-B1030 Cylinder Kit, Rear Wheel[07.2015 - 05.2016] LA700 |
04474-B1030 |
US $39.82 |
||
|
04495
|
04495
04495-B1270 Shoe Kit, Rear Brake[07.2015 - 05.2016] LA700 |
04495-B1270 |
US $61.49 |
||
|
04495
|
04495
04495-B2400
Shoe Kit, Rear Brake
[05.2016 -] LA700 |
04495-B2400 |
— | ||
| replacement | |||||
|
04495
|
04495
04495-B1310 Shoe Kit, Rear Brake[05.2016 -] LA700 |
04495-B1310 |
US $68.38 |
||
|
04906
|
04906
04906-B1030 Cup Kit, Rear Wheel Cylinder[07.2015 - 05.2016] LA700 |
04906-B1030 |
US $16.31 |
||
|
47043
|
47043
47043-B1010 Plate Sub-Assy, Brake Backing, Rear Rh[07.2015 - 05.2016] LA700 |
47043-B1010 |
US $45.43 |
||
|
47043
|
47043
47043-B2090 Plate Sub-Assy, Brake Backing, Rear Rh[05.2016 -] LA700 |
47043-B2090 |
US $59.81 |
||
|
47044
|
47044
47044-B1010 Plate Sub-Assy, Brake Backing, Rear Lh[07.2015 - 05.2016] LA700 |
47044-B1010 |
US $45.43 |
||
|
47044
|
47044
47044-B2090 Plate Sub-Assy, Brake Backing, Rear Lh[05.2016 -] LA700 |
47044-B2090 |
US $59.81 |
||
|
47430B
|
47430B
90045-06197 Spring, Tension(For Rear Brake Shoe Return)[07.2015 - 05.2016] LA700,710 |
90045-06197 |
US $10.93 |
||
|
47430C
|
47430C
90045-01848 Spring(For Rear Brake Shoe Hold Down)[07.2015 - 05.2016] LA700 |
90045-01848 |
US $3.23 |
||
|
47430E
|
47430E
90045-06257 Spring, Tension(For Rear Brake Shoe Return)[07.2015 - 05.2016] LA700,710 |
90045-06257 |
US $3.23 |
||
|
47430G
|
47430G
90045-08361 Spring, Tension(For Rear Brake Automatic Adjust Lever)[07.2015 - 05.2016] LA700,710 右側 |
90045-08361 |
US $2.48 |
||
|
47430G
|
47430G
90045-08362 Spring, Tension(For Rear Brake Automatic Adjust Lever)[07.2015 - 05.2016] LA700,710 左側 |
90045-08362 |
US $2.48 |
||
|
47430H
|
47430H
90045-06196 Spring, Tension(For Rear Brake Shoe Return)[07.2015 - 05.2016] LA700,710 右側 |
90045-06196 |
US $6.27 |
||
|
47430H
|
47430H
90045-06199 Spring, Tension(For Rear Brake Shoe Return)[07.2015 - 05.2016] LA700,710 左側 |
90045-06199 |
US $6.27 |
||
|
47447G
|
47447G
47447-87204 Pin, Shoe Hold Down Spring(For Rear Brake)[07.2015 - 05.2016] LA700 |
47447-87204 |
US $3.23 |
||
|
47449B
|
47449B
47449-97201 Cup, Shoe Hold Down Spring(For Rear Brake)[07.2015 - 05.2016] LA700,710 |
47449-97201 |
US $3.05 |
||
|
47491B
|
47491B
47491-B1010 Plug, Hole(For Rear Brake)[07.2015 - 05.2016] LA700,710 |
47491-B1010 |
US $4.84 |
||
|
47547R
|
47547R
47547-87204 Plug, Bleeder(For Front Disc Brake)[07.2015 - 05.2016] LA700 |
47547-87204 |
US $4.51 |
||
|
47548R
|
47548R
47548-87501 Cap, Bleeder Plug(For Front Disc Brake)[07.2015 - 05.2016] LA700,710 |
47548-87501 |
US $3.05 |
||
|
47550
|
47550
47550-B1010 Cylinder Assy, Rear Wheel Brake(For Rh, Front Or Upper)[07.2015 - 05.2016] LA700 |
47550-B1010 |
US $86.92 |
||
|
47550H
|
47550H
90041-19848 Bolt(For Rear Wheel Cylinder)[05.2016 -] LA700 Ｍ６ |
90041-19848 |
US $1.97 |
||
|
47570
|
47570
47570-B1010 Cylinder Assy, Rear Wheel Brake(For Lh, Front Or Upper)[07.2015 - 05.2016] LA700 |
47570-B1010 |
US $86.92 |
||
|
47601
|
47601
47601-97501 Lever Sub-Assy, Parking Brake Shoe, Rh(For Rear Brake)[07.2015 - 05.2016] LA700,710 |
47601-97501 |
US $14.56 |
||
|
47601C
|
47601C
90042-13007 Washer, C(For Rear Brake)[07.2015 - 05.2016] LA700,710 |
90042-13007 |
US $2.33 |
||
|
47602
|
47602
47602-97501 Lever Sub-Assy, Parking Brake Shoe, Lh (For Rear Brake)[07.2015 - 05.2016] LA700,710 |
47602-97501 |
US $14.56 |
||
|
47613
|
47613
47613-B1010 Strut Set, Parking Brake Shoe, Rh[07.2015 - 05.2016] LA700,710 |
47613-B1010 |
US $15.72 |
||
|
47626C
|
47626C
90042-06041 Washer, Wave[07.2015 - 05.2016] LA700,710 |
90042-06041 |
US $1.79 |
||
|
47643A
|
47643A
47608-87501 Lever Sub-Assy, Automatic Adjust, Rh(For Rear Brake)[07.2015 - 05.2016] LA700,710 |
47608-87501 |
US $10.32 |
||
|
47643A
|
47643A
47643-B2020 Lever, Rear Brake Automatic Adjust, Rh[05.2016 -] LA700,710 |
47643-B2020 |
US $3.40 |
||
|
47644A
|
47644A
47609-87501 Lever Sub-Assy, Automtic Adjust, Lh(For Rear Brake)[07.2015 - 05.2016] LA700,710 |
47609-87501 |
US $14.52 |
||
|
47644A
|
47644A
47644-B2020 Lever, Rear Brake Automatic Adjust, Lh[05.2016 -] LA700,710 |
47644-B2020 |
US $3.40 |
||
|
47645
|
47645
47645-87201 Pin, Automatic Adjust Lever(For Rear Brake)[07.2015 - 05.2016] LA700,710 |
47645-87201 |
US $3.40 |
||
|
47646B
|
47646B
47646-97201 Latch, Automatic Adjust, Rh(For Rear Brake)[07.2015 - 05.2016] LA700,710 |
47646-97201 |
US $6.74 |
||
|
47647A
|
47647A
47647-97201 Latch, Automatic Adjust, Lh(For Rear Brake)[07.2015 - 05.2016] LA700,710 |
47647-97201 |
US $9.50 |
||
