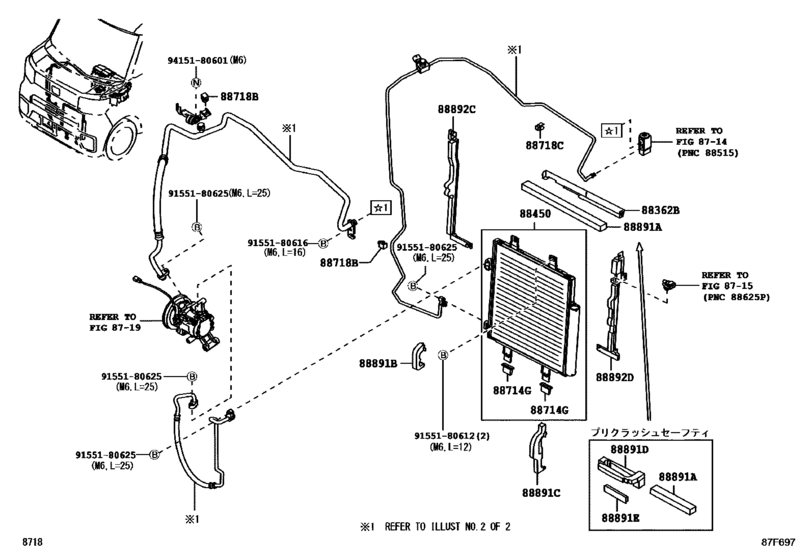

Heating & Air Conditioning - Cooler Piping ([05.2016 - ] (1605- )) Diagram Toyota PIXIS
- Year
- 2015 - 2018
- Sales region
- Japan
- Frame
- LA700A
- grade
- G
- ENGINE
- KFVET
- TRANSMISSION
- CVT
- Model
- PIXIS MEGA
- From
- 07.2015
- Drive Train
- 2WD
- Vehicle Model
- PIXIS MEGA
- Fuel Induction
- TBO
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
88362B
|
88362B
88362-B2710 Plate, Seal[07.2015 - 05.2016] LA700,710 |
88362-B2710 |
US $18.65 |
||
|
88450
|
88450
88450-B2140 Condenser Assy, W/receiver[07.2015 - 05.2016] LA700,710 |
88450-B2140 |
US $521.04 |
||
|
88450
|
88450
88460-B2010 Condenser Assy, W/receiver[05.2016 - 01.2017] LA700,710 |
88460-B2010 |
US $425.15 |
||
|
88450
|
88450
88460-B2020 Condenser Assy, W/receiver[02.2017 -] LA700,710 |
88460-B2020 |
US $492.96 |
||
|
88714G
|
88714G
88714-B2010
Insulator, Cooler Refrigerant Pipe, No.1
[07.2015 - 05.2016] LA700,710 |
88714-B2010 |
— | ||
|
88718B
|
88718B
88718-13060
Clamp(For Cooler Refrigerant Pipe), No.2
[07.2015 - 05.2016] LA700,710 |
88718-13060 |
— | ||
|
88718C
|
88718C
88718-B2180
Clamp(For Cooler Refrigerant Pipe), No.3
[07.2015 - 05.2016] LA700,710 |
88718-B2180 |
— | ||
|
88891A
|
88891A
88578-B2A40 Packing A (For Cooler)[07.2015 - 05.2016] LA700,710 |
88578-B2A40 |
US $7.35 |
||
|
88891A
|
88891A
88578-B2A50 Packing A (For Cooler)[07.2015 - 05.2016] LA700,710 スマートアシスト |
88578-B2A50 |
US $3.23 |
||
|
88891B
|
88891B
88578-B2C30 Packing B (For Cooler)[07.2015 - 05.2016] LA700,710 |
88578-B2C30 |
US $7.35 |
||
|
88891C
|
88891C
88578-B2C40 Packing C (For Cooler)[07.2015 - 05.2016] LA700,710 |
88578-B2C40 |
US $8.42 |
||
|
88891D
|
88891D
88578-B2C50 Packing D (For Cooler)[07.2015 - 05.2016] LA700,710 スマートアシスト |
88578-B2C50 |
US $4.80 |
||
|
88891E
|
88891E
88578-B2B90 Packing E (For Cooler)[07.2015 - 05.2016] LA700,710 スマートアシスト |
88578-B2B90 |
US $3.20 |
||
|
88892C
|
88892C
53037-B2020 Plate, Condenser, No.1[05.2016 -] LA700,710 |
53037-B2020 |
US $24.19 |
||
|
88892C
|
88892C
88362-B2610 Plate, Condenser, No.1[07.2015 - 05.2016] LA700,710 |
88362-B2610 |
US $13.54 |
||
|
88892D
|
88892D
53038-B2020 Plate, Condenser, No.2[05.2016 -] LA700,710 |
53038-B2020 |
US $24.19 |
||
|
88892D
|
88892D
88362-B2620 Plate, Condenser, No.2[07.2015 - 05.2016] LA700,710 |
88362-B2620 |
US $17.47 |
||
|
9155180612
|
9155180612
91551-80612 Bolt (For Front Differential Breather Plug Oil Deflector) |
91551-80612 |
from US $0.63 |
||
|
9155180616
|
9155180616
91551-80616 BOLT FLANGE |
91551-80616 |
from US $0.63 |
||
|
9155180625
|
9155180625
91551-80625 Bolt(For Camshaft Housing Set) |
91551-80625 |
from US $0.63 |
||
|
9415180601
|
9415180601
94151-80601 New Genuine Part |
94151-80601 |
US $0.87 |
