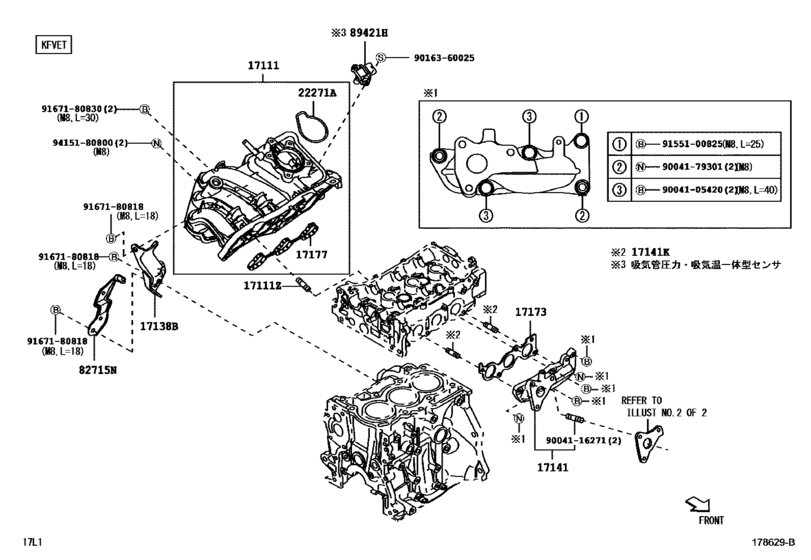

Manifold ([07.2015 - ] (1507- )KFVET) Diagram Toyota PIXIS
- Year
- 2015 - 2018
- Sales region
- Japan
- Frame
- LA700A
- grade
- G
- ENGINE
- KFVET
- TRANSMISSION
- CVT
- Model
- PIXIS MEGA
- From
- 07.2015
- Drive Train
- 2WD
- Vehicle Model
- PIXIS MEGA
- Fuel Induction
- TBO
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
17111
|
17111
17120-B2081 Manifold, Intake[07.2015 - 05.2016] KFVET..LA700,710 |
17120-B2081 |
US $183.46 |
||
|
17111Z
|
17111Z
90041-26003 Bolt, Stud(For Intake Manifold To Cylinder Head)[07.2015 - 05.2016] KFVET..LA700,710 |
90041-26003 |
US $2.77 |
||
|
17138B
|
17138B
17138-B2050 Stay, Intake Manifold[07.2015 - 05.2016] KFV#..LA700,710 |
17138-B2050 |
US $18.35 |
||
|
17141
|
17141
17104-B2011 Manifold, Exhaust[07.2015 - 05.2016] KFVET..LA700,710 |
17104-B2011 |
US $119.39 |
||
|
17141K
|
17141K
90041-16487 Bolt, Stud(For Exhaust Manifold To Cylinder Head)[07.2015 - 05.2016] KFVET..LA700,710 |
90041-16487 |
US $3.76 |
||
|
17173
|
17173
17173-B2021 Gasket, Exhaust Manifold To Head[07.2015 - 05.2016] KFVET..LA700,710 |
17173-B2021 |
US $16.84 |
||
|
17177
|
17177
17177-B2040 Gasket, Intake Manifold To Head, No.1[07.2015 - 05.2016] KFV#..LA700,710 |
17177-B2040 |
US $10.57 |
||
|
22271A
|
22271A
22271-B2030 Gasket, Throttle Body[07.2015 - 05.2016] KFV#..LA700,710 |
22271-B2030 |
US $7.53 |
||
|
82715N
|
82715N
82715-B2660 Bracket, Wiring Harness Clamp[07.2015 - 05.2016] LA700,710 |
82715-B2660 |
US $11.94 |
||
|
89421H
|
89421H
89421-B2020 Sensor, Vacuum[07.2015 - 05.2016] LA700,710..TBO |
89421-B2020 |
US $104.96 |
||
|
9004105420
|
9004105420
90041-05420 New Genuine Part |
90041-05420 |
US $3.76 |
||
|
9004116271
|
9004116271
90041-16271 Bolt, Stud |
90041-16271 |
US $6.26 |
||
|
9004179301
|
9004179301
90041-79301 New Genuine Part |
90041-79301 |
US $2.33 |
||
|
9016360025
|
9016360025
90163-60025 New Genuine Part |
90163-60025 |
US $0.73 |
||
|
9155100825
|
9155100825
91551-00825 New Genuine Part |
91551-00825 |
US $1.97 |
||
|
9167180818
|
9167180818
91671-80818 BOLT FLANGE |
91671-80818 |
from US $0.84 |
||
|
9167180830
|
9167180830
91671-80830 BOLT FLANGE |
91671-80830 |
US $1.43 |
||
|
9415180800
|
9415180800
94151-80800 Nut (For Transmission Control Cable) |
94151-80800 |
from US $0.78 |
