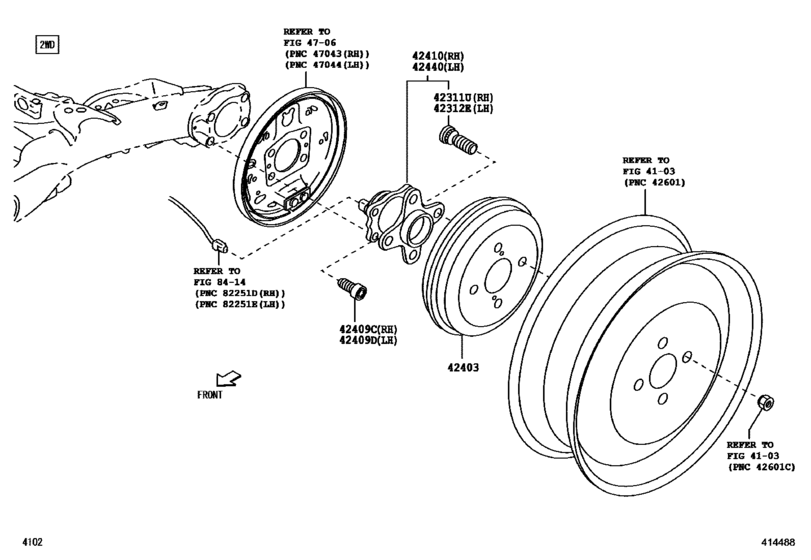

Rear Axle Shaft & Hub ([07.2015 - ] 2WD (1507- )LA700) Diagram Toyota PIXIS
- Year
- 2015 - 2018
- Sales region
- Japan
- Frame
- LA700A
- grade
- G
- ENGINE
- KFVET
- TRANSMISSION
- CVT
- Model
- PIXIS MEGA
- From
- 07.2015
- Drive Train
- 2WD
- Vehicle Model
- PIXIS MEGA
- Fuel Induction
- TBO
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
42311U
|
42311U
90049-12062 Bolt, Hub (For Rear Axle Rh)[07.2015 - 05.2016] LA700 Ｍ１２，Ｌ＝３４ |
90049-12062 |
US $4.66 |
||
|
42312E
|
42312E
90049-12062 Bolt, Hub (For Rear Axle Rh)[07.2015 - 05.2016] LA700 Ｍ１２，Ｌ＝３４ |
90049-12062 |
US $4.66 |
||
|
42403
|
42403
42431-B1021 Drum Sub-Assy, Rear Brake[07.2015 - 05.2016] LA700 |
42431-B1021 |
US $262.40 |
||
|
42409C
|
42409C
90041-01650 Bolt (For Rear Axle Bearing Rh)[07.2015 - 05.2016] LA700 Ｍ１２，Ｌ＝３０ |
90041-01650 |
US $4.30 |
||
|
42409D
|
42409D
90041-01650 Bolt (For Rear Axle Bearing Rh)[07.2015 - 05.2016] LA700 Ｍ１２，Ｌ＝３０ |
90041-01650 |
US $4.30 |
||
|
42410
|
42410
42410-B2080 Hub & Bearing Assy, Rear Axle, Rh[07.2015 - 05.2016] LA700 センサー付き |
42410-B2080 |
US $260.62 |
||
|
42440
|
42440
42410-B2080 Hub & Bearing Assy, Rear Axle, Rh[07.2015 - 05.2016] LA700 センサー付き |
42410-B2080 |
US $260.62 |
